Meanwell Power Supply 8 Chutes Nuts Color Sorting Machine Almond Peanut Colour Sorter
Color sorter definition :
Based on Full-Colour technology, Wenyao providing the highest yield and quality on standard commodities, such as grains, seeds, coffee, nuts and other food applications.
It can combine smart Full-Colour cameras with NIR technology, depending on the sorting target, and can thus provide the best detection and removal of unwanted elements.
Wenyao color sorter machine advantages:
1. Excellent sorting performance: Advanced image acquisition system + intelligent image processing algorithm + high quality ejection system=excellent output and rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5400 pixel,CCD high speed linear scan imaging sensor also first-class tailored camera lens for color sorting with a precision identifying tiny defects till 0.01m
3.Super ease operation system: Simple optical system design and accurate in time auto,calibration system plus simplified GUI design help reduce complicacies of machine,commissioning and running, easy operation and maintenance secured.
4. Customized image processing algorithm: Intelligence algorithm integrating image
color difference and defect size difference;
5. Long-life software upgrading for free.
6. OEM service welcomed.
Wenyao color sorter machine types:
Wenyao color sorter can be divided into chute-type and belt-type color sorter.
Chute-type color sorters are more common especially for food, as prices are lower, capacities are higher, and products can be seen more easily from both sides, which is important when a dehulled grain has hull only on one side. Chute sorters are usually applicable to specific products, as the chute is designed with special channels for this kind of material based on sizes and shapes of the material. For example, 5 mm chutes are used for rice, grain and plastic granules. Flat chutes are right for plastic flakes, such as PET, or milk bottle flakes.
Belt-type color sorters break a smaller percentage of the material (important for nuts), and the product stays relatively static during the transport process as it moves horizontally on the belt. In the chute type, material slides on the chute because of gravity, causing collision, friction, and larger vertical movements, thus worsening the ratio of broken material. The belt structure makes the transmission smooth and stable without bouncing of material.

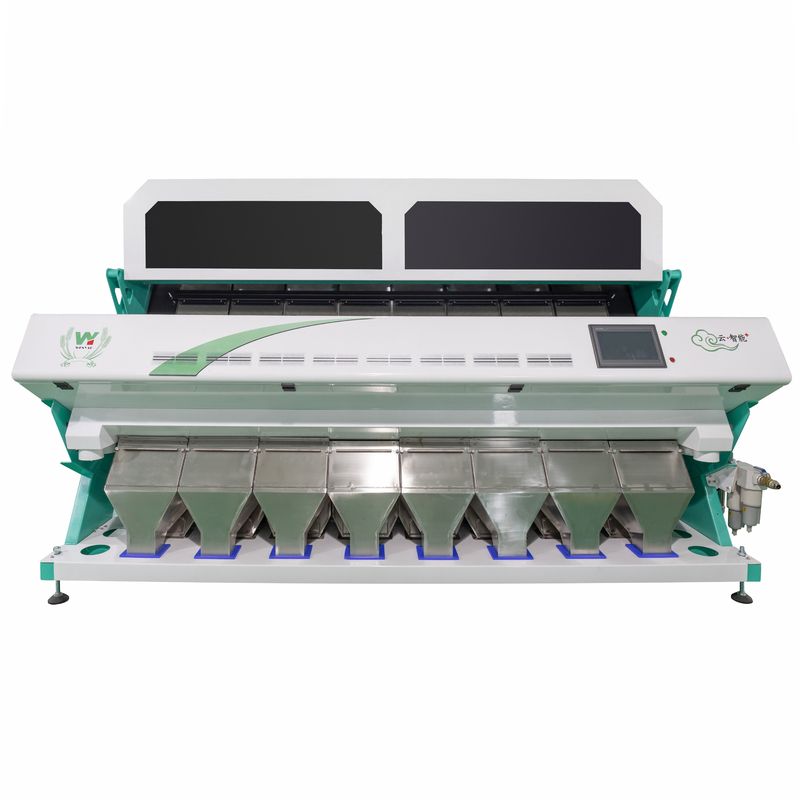

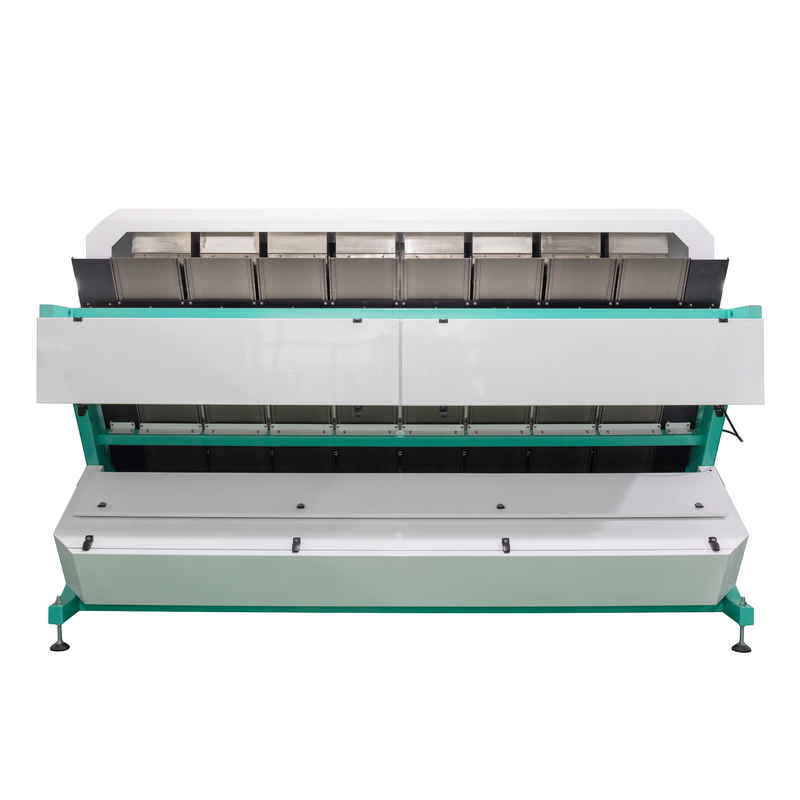

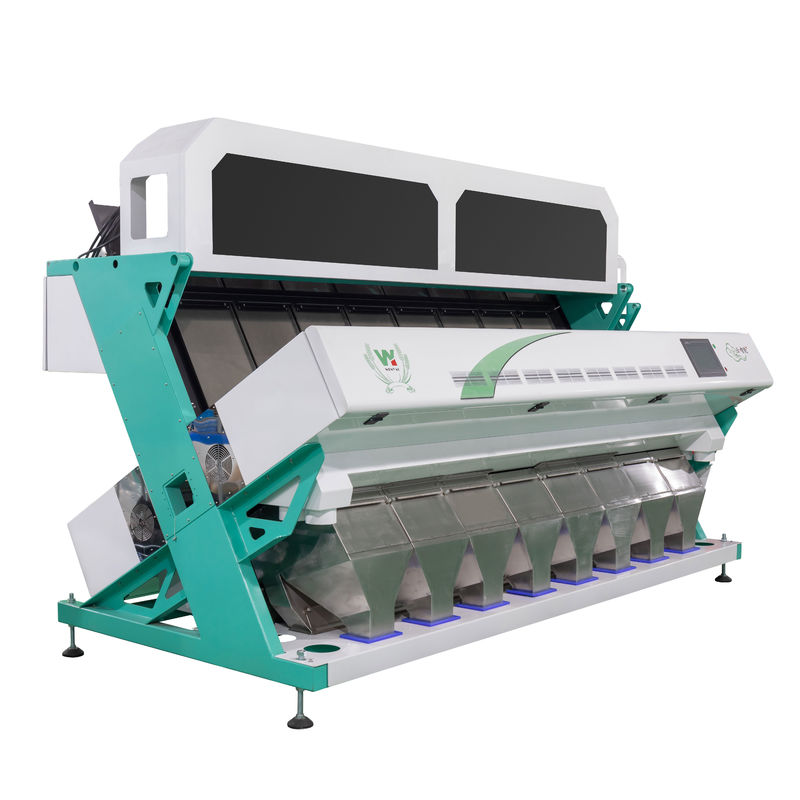

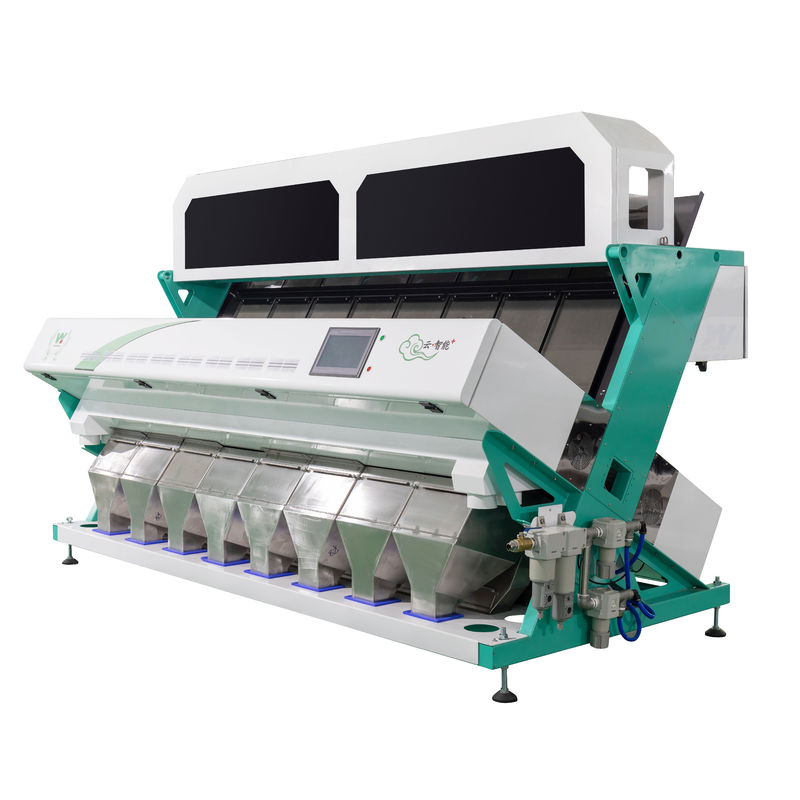

Wenyao 8 chutes 512 channels color sorter product show and technical parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 4-7t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz/60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 2-4M3/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Wenyao color sorter application:
Rice: rice,millet,parboil rice,black rice,red rice,brown rice,broken rice,glutinous rice,paddygolden rice,and so on.
Grains: corn,sesame,oat,barley,rye,quinoa,wheat,buckwheat and so on.
Nuts: Peanut, walnut, almond, pine nut, hazelnut, white fruit, cashew, hazelnut,chestnut, pistachio, macadamia nut ,pecan,candle nut,areca nut
Seeds: sunflower seed, pumpkin seed,watermelon seed,lotus, sesame,hump seed,flax seed,pepper,coriander seed,veget seed and so on
Beans: red beans,kidney beans,coffee bean,black beans,mung beans,broad beans,chickpea,lentil,white bean,pea and so on
Industries: plastic,Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic,electronic component,industrial salt,quartz sand,metal,glass
tea leaf: black tea,green tea,herbal tea,flower petal tea,ceylon tea,oolong tea.
Others: raisins,wolfberry,pepper,chili,spice,fish,shrimp and so on.
Color sorter sorting effects for nuts:
Note:The machine support more than 2500 materials ,welcome to inquire us for more details.
Our service:
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing for free support.
* View our Factory.
After-Sales Service:
* Video indication about machine installment and operation;
* Training how to install the machine, training how to use the machine for free.
* Engineers available to service machinery overseas.
* 7*24 online service hot-line.
* Life-long service for net cost spare parts.
Parking and delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details:
Within 15 - 20 days after received the 30% deposit
