Brown Rice Color Sorter Machine For Separating Bad Quality Rice And Black Spots And Foreign Impurities
Brown Rice Color Sorter Machine For Separating Inferior Quality Rice
1. Brown Rice Color Sorter Machine Working Flow
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber
2. Technical Parameters:
| MODEL | WYCS5-320 |
| Chutes/Channels | 5 / 320 |
| Throughput(kg/h) | 3000kg/h-4000kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.9kw |
| Power Voltage | 180-240V/50-60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 900kg-910kg |
| Diamension(L*W*H) | 2244*1540*1852mm |
3. Machine Features:
1. The color high resolution CCD image acquisition system uses the color CCD image acquisition system to realize the comprehensive acquisition of the material red, green and blue color information. The color sorter has the human eye's sense ability, the material selection is more realistic and more in line with the requirements; the higher resolution is up to 0.04 mm2, which can accurately identify the fine defects and spots of raw materials. High precision special lens ensures clear and accurate image.
2. Flexible and variable light source equipped with LED system with heat dissipation, long life, low energy consumption and good performance. Different raw materials require different spectral lighting, and tailor the light source according to the needs of customers.
3. The special image processing algorithm uses shape and color combination algorithm according to material characteristics. For complex color materials, the color space after HSV transformation is more intuitive and precise.
4. Examples of Color Sorting Examples
5. Our Service:
Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After Sale Service

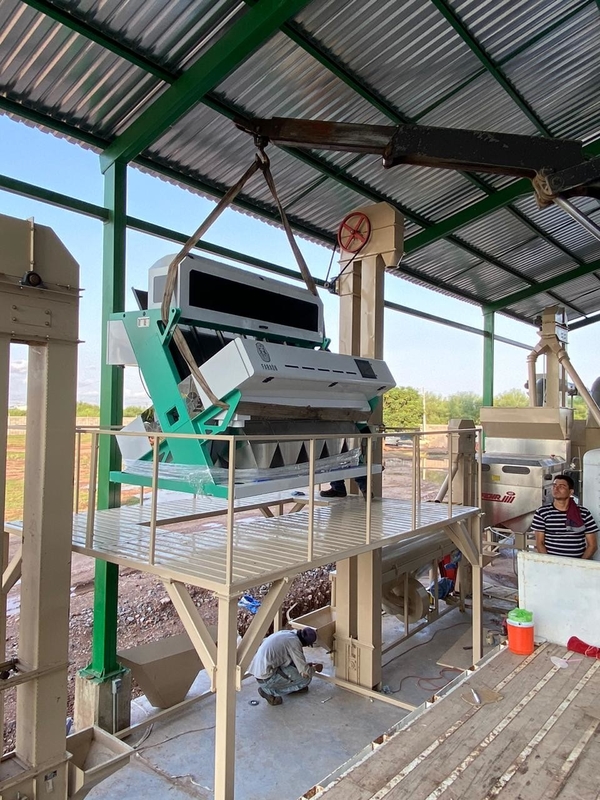

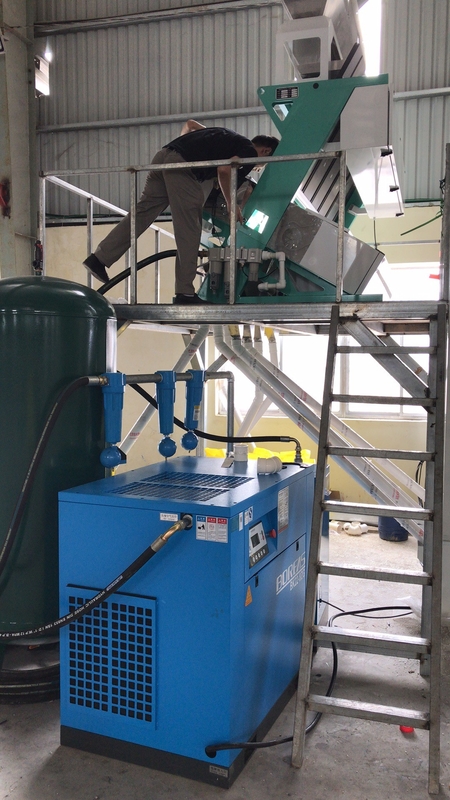

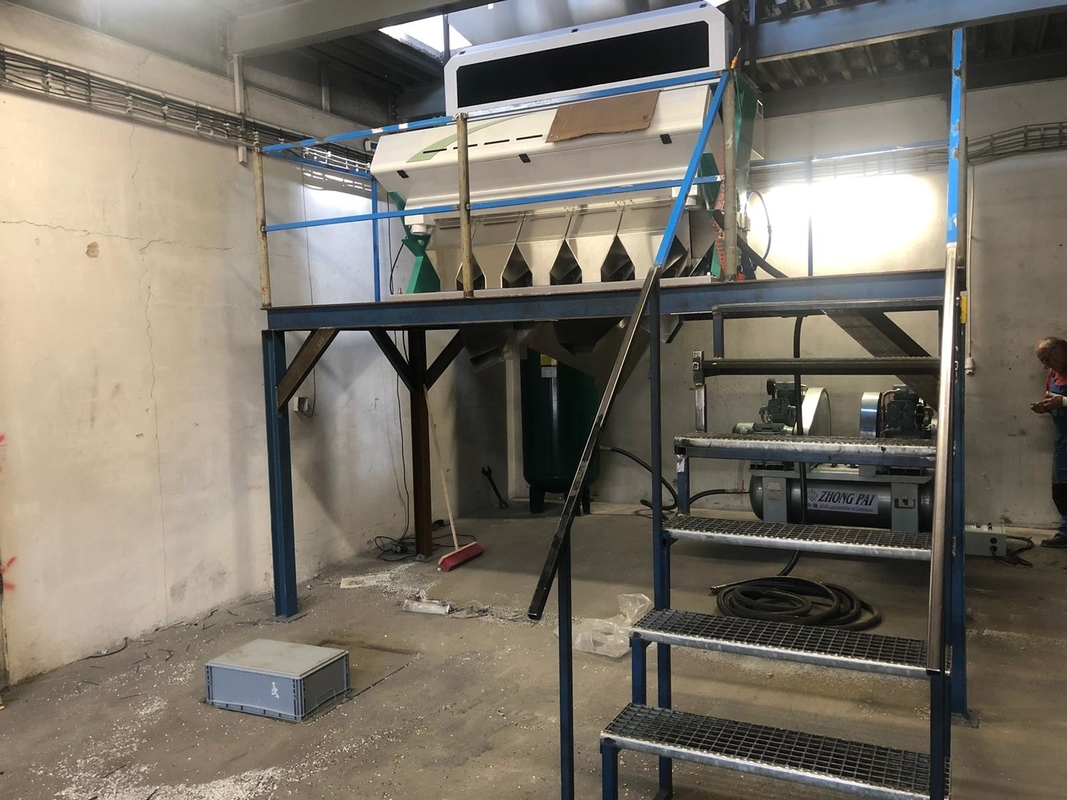

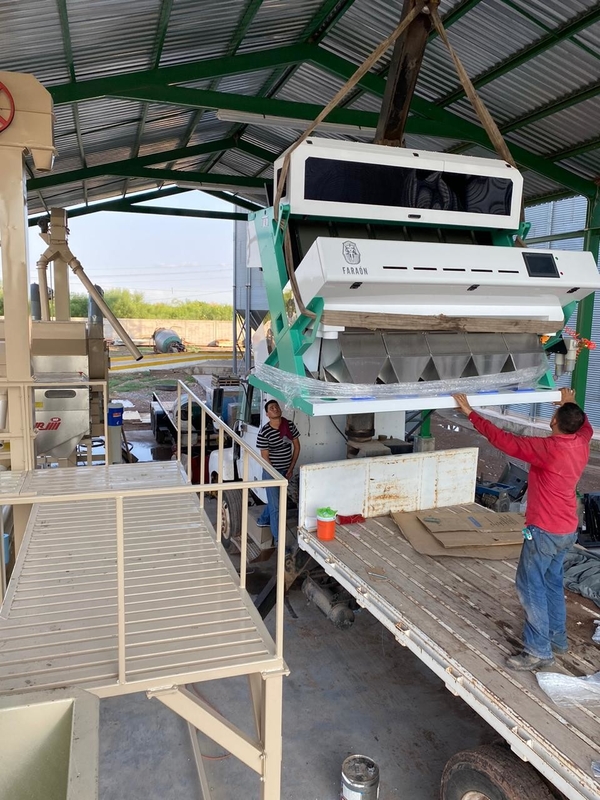

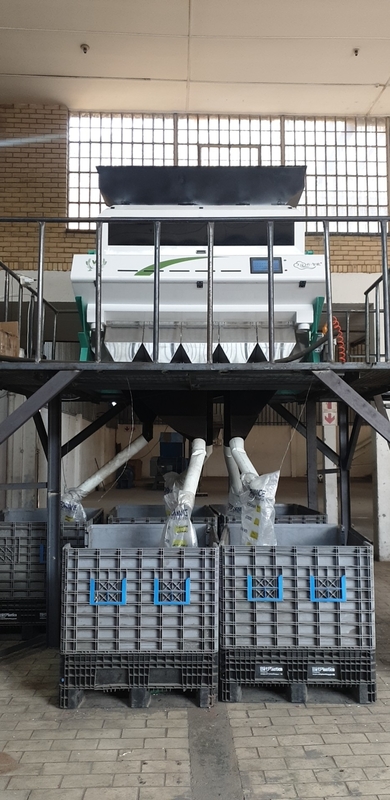

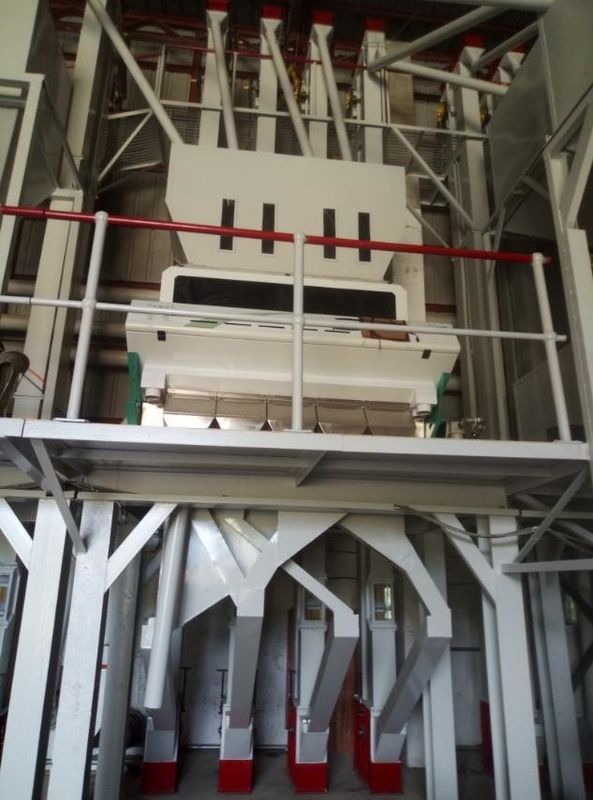

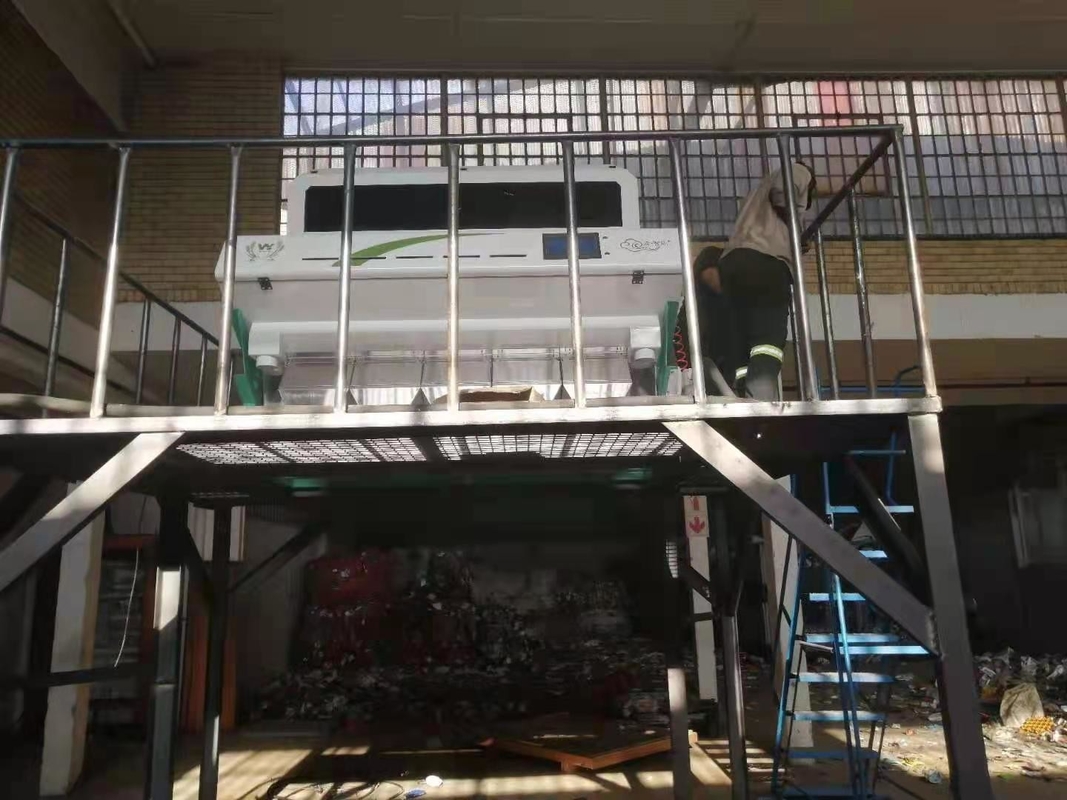

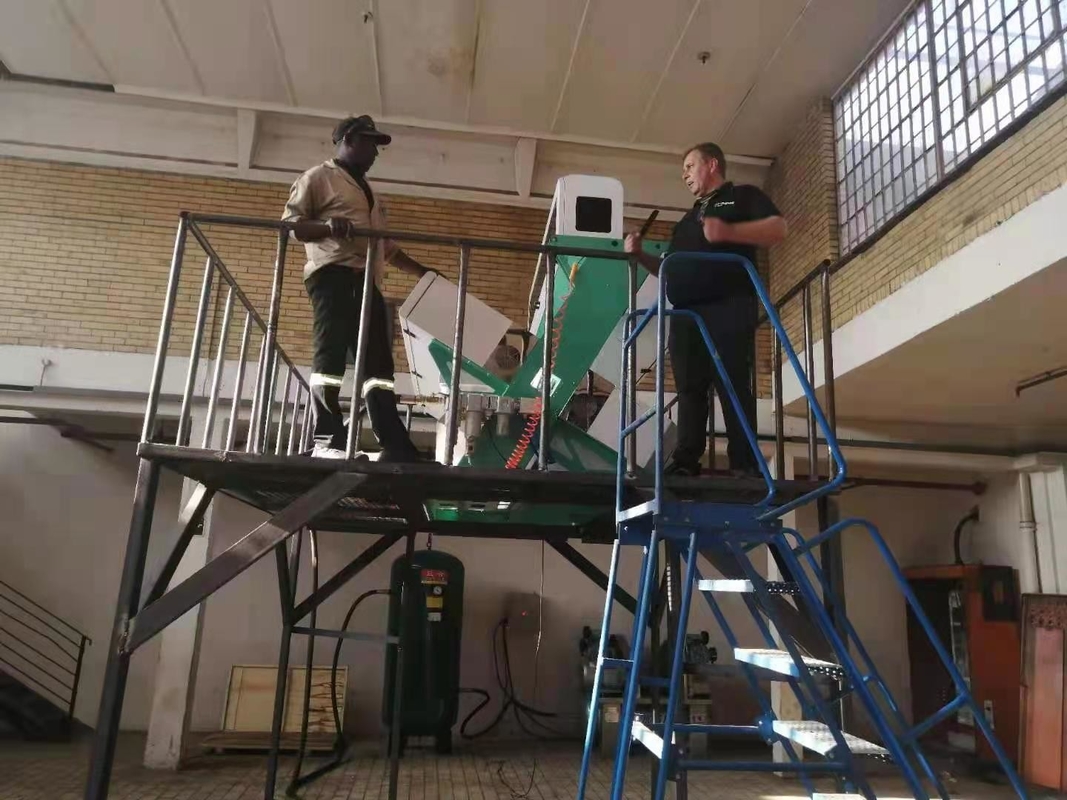

We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
6. Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
