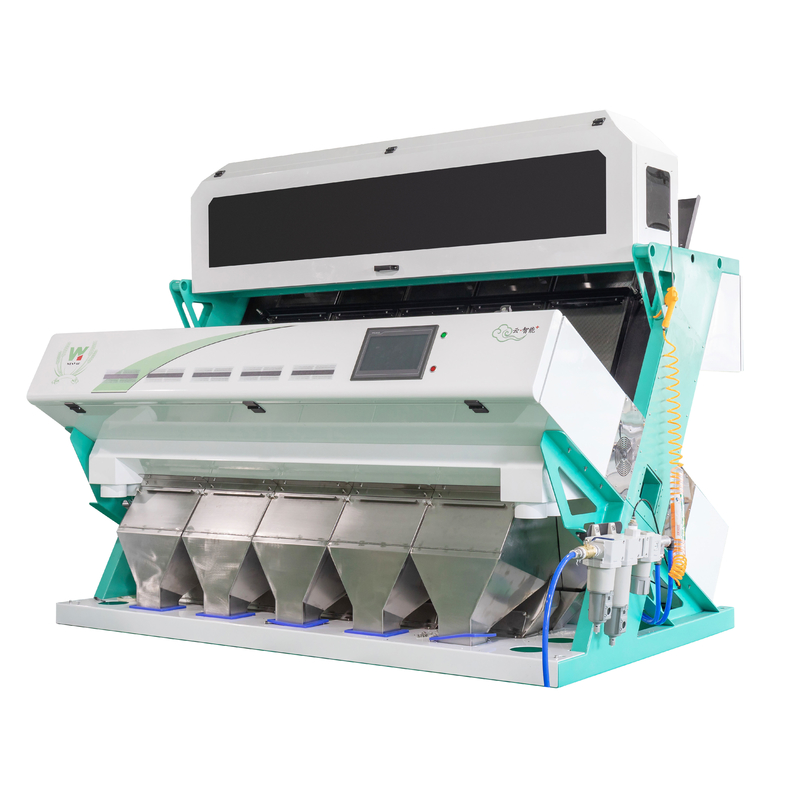

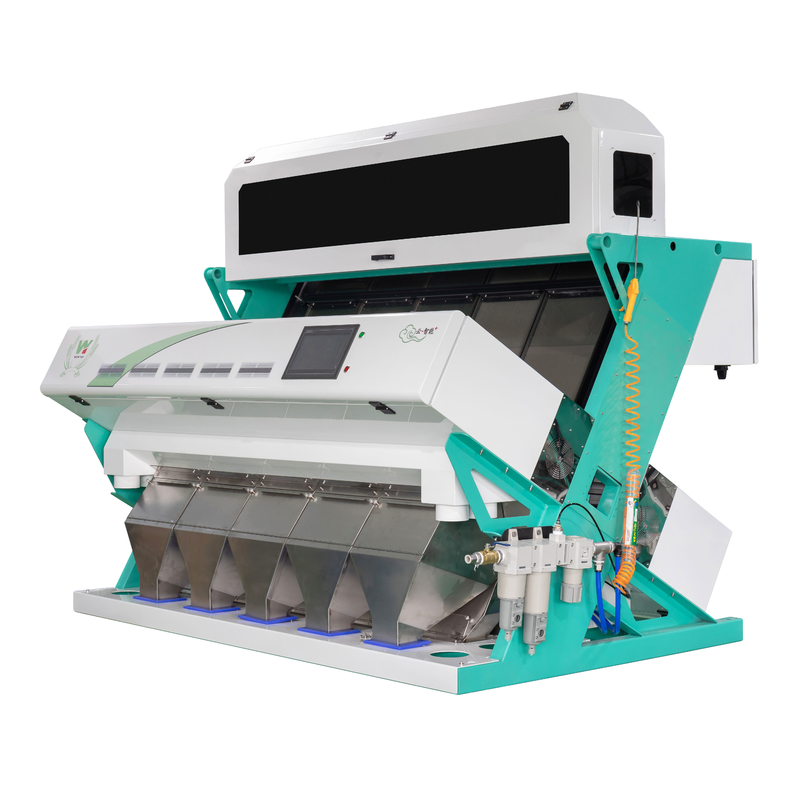

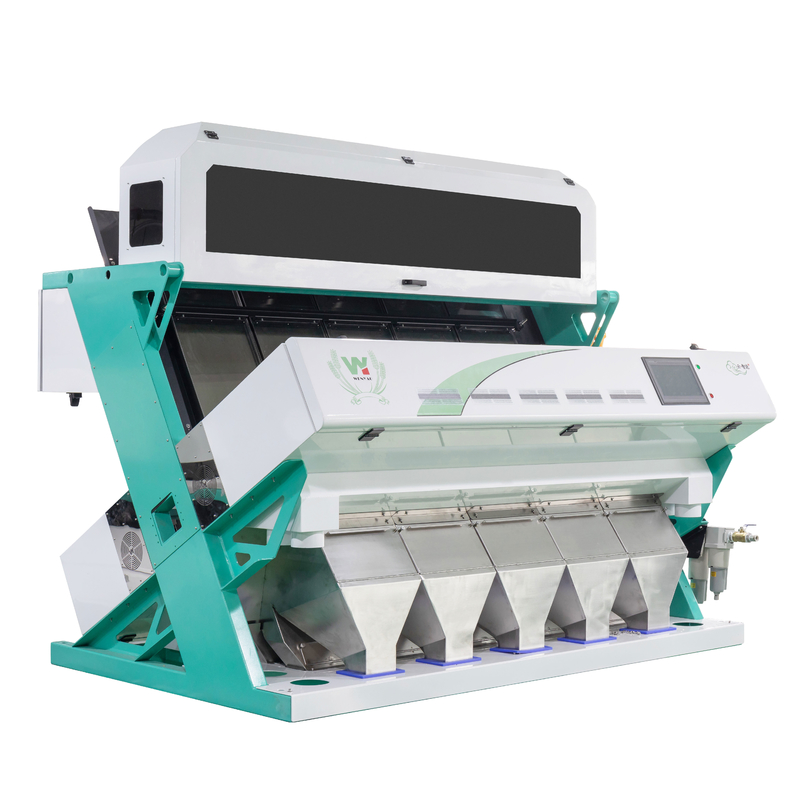

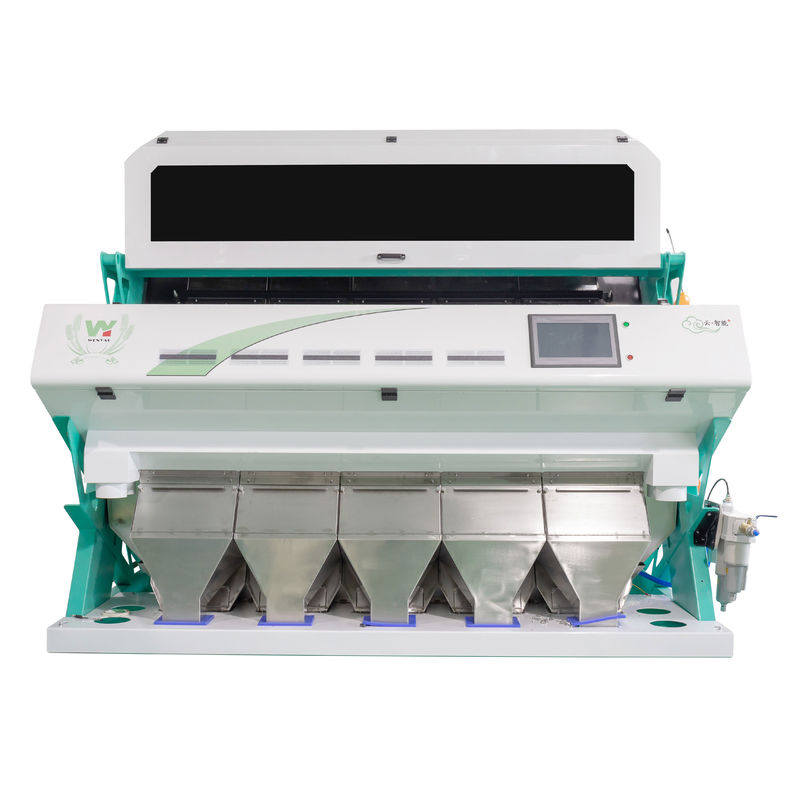

Five Chutes Macadamia Nuts Color Sorter With CCD Sensor

Five Chutes Macadamia Nuts Color Sorter With CCD Sensor

CCD Sensor Nuts Color Sorter

Macadamia Nuts Color Sorter

Five Chutes Nuts Color Sorter

Place of Origin:

Hefei China

Brand Name:

WENYAO

Certification:

ISO9001 and CE

Model Number:

WYCS5-320

Contact Us

Request A Quote
Product Details
Condition:
Brand New
MOQ:
1 Pcs
Sorting Accuracy(%):
>=99.98%
Function:
Macadamia Nut Color Sorting
After-sales Service Provided:
Wifi Remote Support For You
Machine Dimensions(L*W*H):
1855*1540*1850 Mm
Warranty:
2 Years(24 Months)
Sensor:
Japan Toshiba CCD Sensor
HS Code:
8437101000
Power Supply:
Meanwell
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiated
Packaging Details
Plywood case Packing size(L*W*H):2550X1720X2050mm
Delivery Time
7-14 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
245PCS Per Month
Product Description

Macadamia Nuts Color Sorter Macadamia Nut Color Sorting Machine Macadamia Nut Color Separation



1. Color Sorter Machine Working Flow and Principle

Five Chutes Macadamia Nuts Color Sorter With CCD Sensor 0

Raw materials are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate. Under the effect of light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber



2. Technical Parameters:



MODEL WYCS5-320
Chutes/Channels 5 / 320
Throughput(kg/h) 3000kg/h-4000kg/h
Sorting Aaccuracy ≥99.99%
Power 2.9kw
Power Voltage 180-240V/50-60Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.8M3/Min
Weight 900kg-910kg
Diamension(L*W*H) 2244*1540*1852mm





3. CCD Color Sorter Machine Core Parts:



►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages



4. Examples of Color Sorting Examples



Five Chutes Macadamia Nuts Color Sorter With CCD Sensor 1

Five Chutes Macadamia Nuts Color Sorter With CCD Sensor 2



5. FAQ

1). How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2). How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3). Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4). what about the after sales service?

We have installed wifi remote control in machine



6. Customer Local Site

Five Chutes Macadamia Nuts Color Sorter With CCD Sensor 3



7. Why choose US?

1. Over 15years experiences focus on color sorter. We have the strength give better service and price to you.

2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. We can meet your requirements on testing, installation and after sales service.

3. OEM/ODM is Supported: We have a strong R&G team. We can research and development suitable color sorter for you.

4. Quality Process Assurance: We pass CE, RoHS and ISO quality management system, each process of production are under strictly standard.

5. Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.

6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)

7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.




8. Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.

Five Chutes Macadamia Nuts Color Sorter With CCD Sensor 4

Five Chutes Macadamia Nuts Color Sorter With CCD Sensor 5
