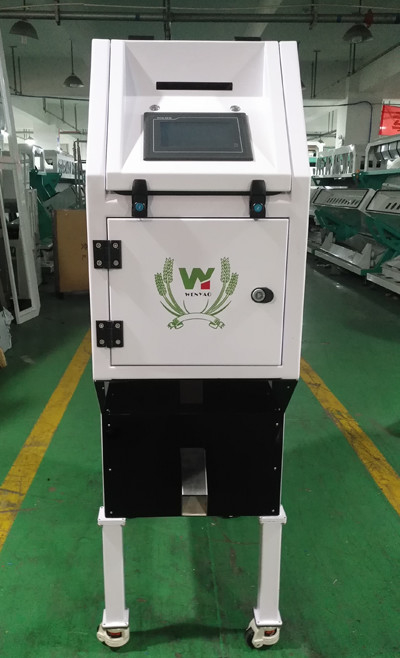

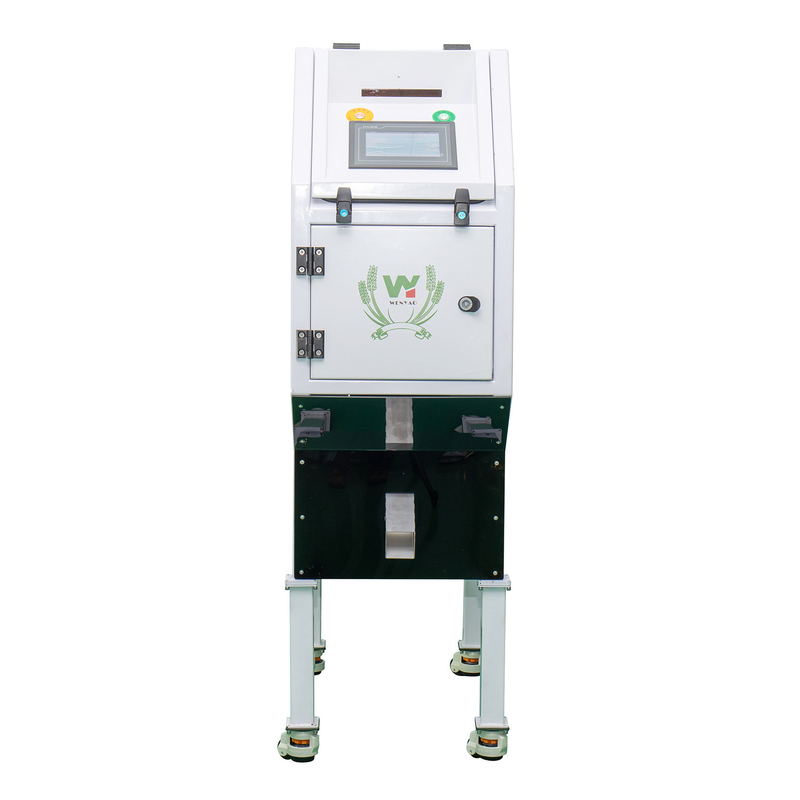

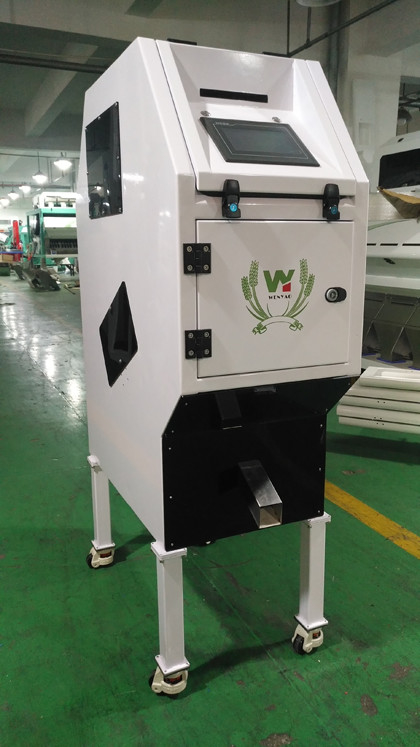

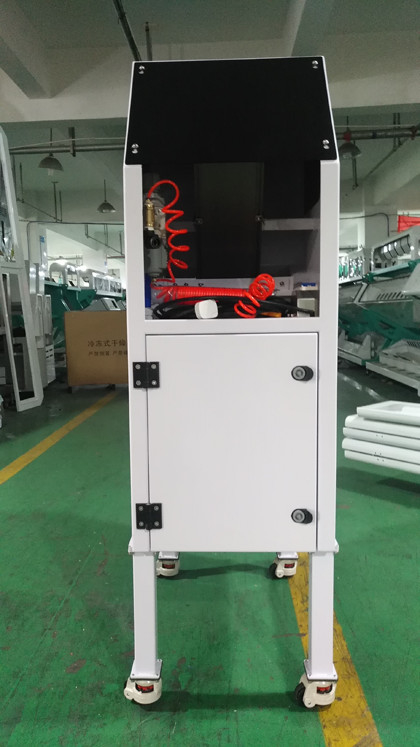

Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels

Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels

Wenyao Coffee Bean Color Sorter

32 Channels Coffee Bean Sorter

CCD Coffee Bean Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE ISO9001

Model Number:

WYCS1-32

Contact Us

Request A Quote
Product Details
Function:
Sorting Coffee Beans By Colors
Sorting Accuracy(%):
≥99.99
Condition:
New
Power Source:
Single Phase 220V/50HZ 500W
Chute/channels:
1/32
Warranty:
2 Years
After-sales Service Provided:
Remote Service
Weight:
180 Kg
Size:
460*895*1471mm
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiated
Packaging Details
Plywood case package Packing size(L*W*H):1.1x0.6x1.35M
Delivery Time
3 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Wenyao Mini Small 32 Channels Coffee Beans Color Sorter Machine


Working Principle


When color sorter is working, the materials in hopper is uniformly distributed into each chute by the vibrator. While the materials are dropping,the CCD signal is running. If the cameras catch there are unqualified materials or impurities in the materials, the ejector will blow the defective goods into the hopper.



Product Application


Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney
bean,Chili,Red bean, others.


Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.


Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.

Technical Parameters:

MODEL WYCS1-32
Chutes/Channels 1/32
Throughput(t/h) 500-800 Kg /H
Sorting Aaccuracy ≥99.99%
Power 0.50kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.2-0.3Mpa
Air Consumption 200-300L/Min
Weight 180kg
Diamension(L*W*H) 460*895*1471mm



Features:

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►5400Pixel CCD image acquisition system with high speed chip.



Examples Of Color Sorting



Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 0Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 1Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 2





The Catalogue Of Wenyao Color Sorter Machine





Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 3Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 4Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 5Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 6



Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 7Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 8Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 9



Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 10Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 11



Wenyao Mini CCD Coffee Bean Color Sorter 32 Channels 12





FAQ:



1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.

2. How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. what about the after sales service?

Yes, By videos or by remote control or local service or engineers could go abroad when required.
