Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us

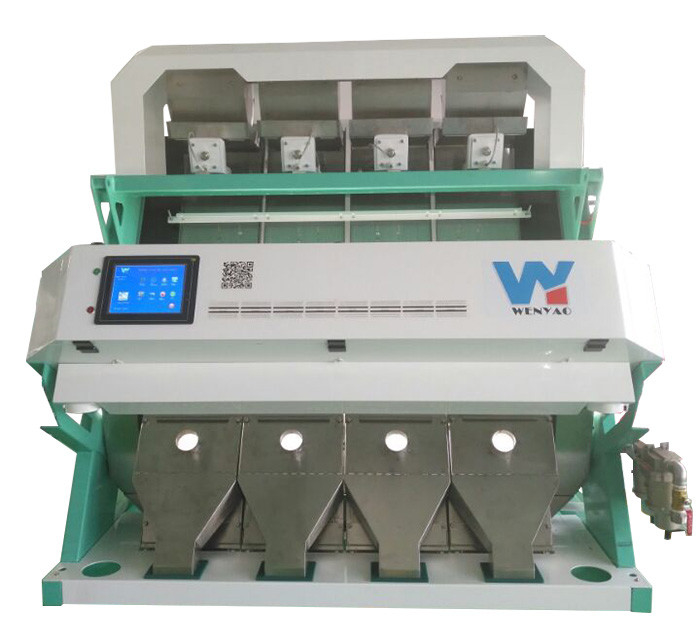

Wenyao 4 Chutes Rice Color Sorter Machine with WIFI Remote Control Service
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
MODEL | WYCS4-256 |
Chutes/Channels | 4/256 |
Throughput(t/h) | 2-3t/h |
Sorting Aaccuracy | ≥99.99% |
Power | 2.3kw |
Power Voltage | 180-240V/50Hz |
Air Source Pressure | 0.6-0.8Mpa |
Air Consumption | <2.4M3/Min |
Weight | 750kg |
Diamension(L*W*H) | 1855*1540*1852mm |
Color sorter Principle as below:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
Maintenance and inspection
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.
Packing And Delivery :
