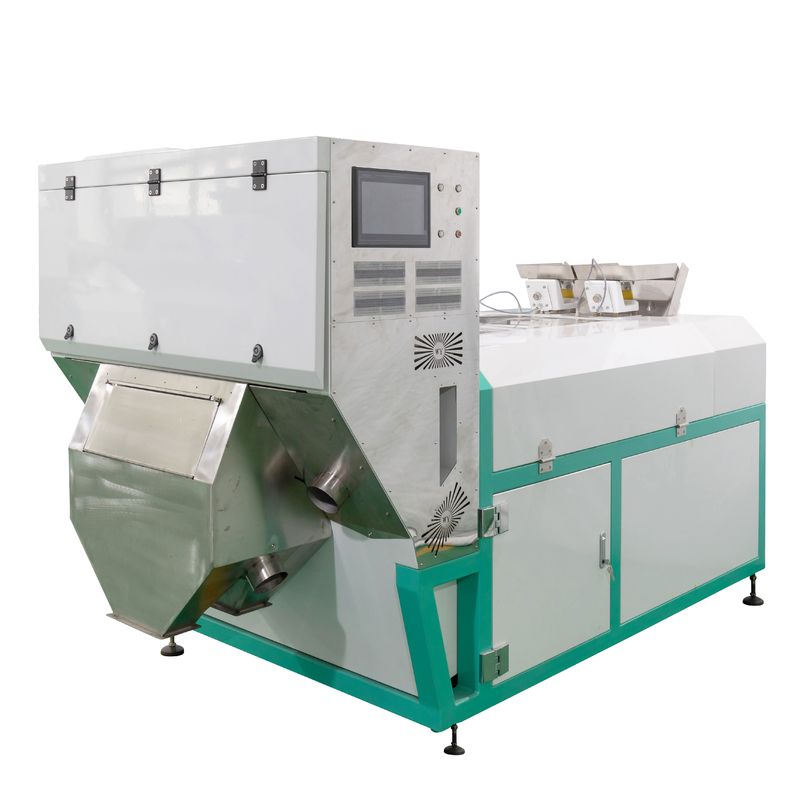

Walnut Kernel Belt Color Sorting Machine 2 Chutes 99.9 % Accuracy

Walnut Kernel Belt Color Sorting Machine 2 Chutes 99.9 % Accuracy

Walnut Kernel Belt Color Sorter

2 Chutes Belt Color Sorting Machine

Walnut Kernel Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYB2

Contact Us

Request A Quote
Product Details
Sorting Accuracy(%):
≥99.9
Usage:
Fruit ,metal, Copper ,walnut
Chutes:
2
Channels:
128
Remote:
Wifi Remote Control
CCD:
Toshiba
Camera:
RGB Camera
Certificate:
CE & ISO9001
Lamp Source:
LED Variable Light
Application:
Glass Sorting Walnut Sorting
Hopper:
Stainless 304 Food Grade
Warranty:
2 Years
Type:
New
Throughput:
0.5-1t/h
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Belt Type walnut kernel Color Sorter belt colour sorter belt color sorting machine



When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Walnut Kernel Belt Color Sorting Machine 2 Chutes 99.9 % Accuracy 0







Technical Parameters:

MODEL WYB2
Chutes/Channels 2/128
Throughput(t/h) 1-2t/h
Sorting Aaccuracy ≥99.9%
Power 3kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <0.6M3/Min
Weight 756kg
Diamension(L*W*H) 2470*1325*1560
mm

Throughtput:Different impurity with different throughput.



Features:

1. Camera

leading in the industry

International well-known brand customized lens
Import high-end 5400PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²

2. High-frequency Solenoid Valve

High-quality high-frequency solenoid valve, with consistency of near zero error.

Service life more than 1 billion times.
Ultra high precision, leading in China

3. Intelligent Image Processing Algorithm

The combination of colors and shapes of intelligent algorithm
Precise professional sorting solutions

4. Customized Lighting System

Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.

5. Data Transmission System

high-speed and stable
High anti-jamming, high transmission speed, high stability

6. Human-Computer Interface

simple and easy to operate

More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.



Color Sorter Application:



Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice





Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea





Tea: green tea/black tea/dark tea/white tea/ yellow tea





Cereals: corn/barley/wheat/oat/sesame/malt





Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed





Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio





Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage





Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl





Economic Crops:raisin/medlar/lily/red date/shrimp bran/tobacco/agaric



Examples of nuts color sorting:

Walnut Kernel Belt Color Sorting Machine 2 Chutes 99.9 % Accuracy 1



Walnut Kernel Belt Color Sorting Machine 2 Chutes 99.9 % Accuracy 2



Walnut Kernel Belt Color Sorting Machine 2 Chutes 99.9 % Accuracy 3



Walnut Kernel Belt Color Sorting Machine 2 Chutes 99.9 % Accuracy 4
