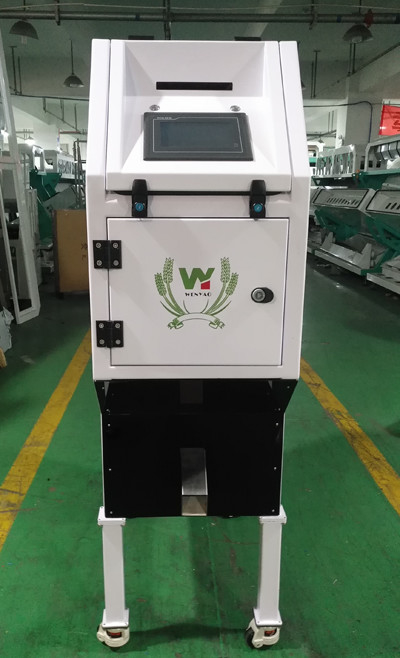

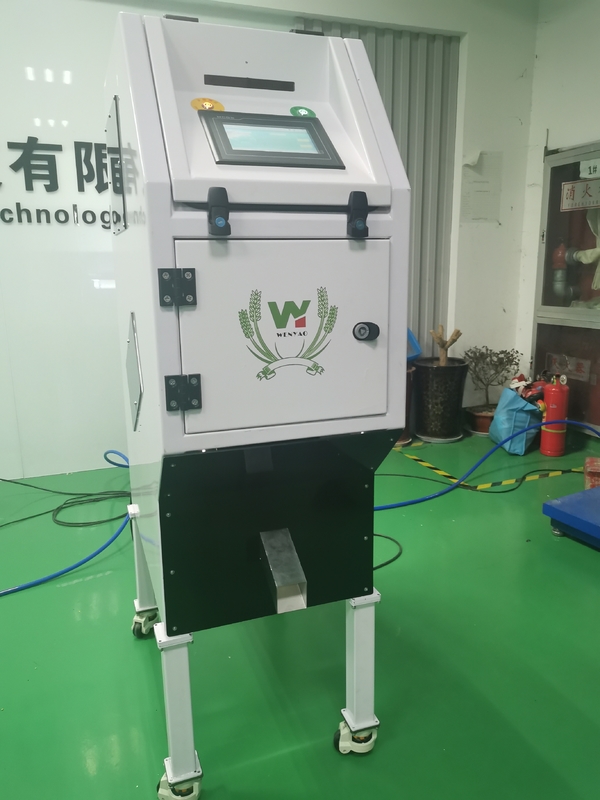

Lentil Pulses Color Sorter Machine Dal Color Sorter Bean Color Sorting Machine
he photoelectronic color sorter is a kind of non-destructive sorting equipment for the quality,inspection and classification
ofbulk materials.It has a wide range of applications in the grain,food,pigment chemical industry and other industries.As for
beans,rice,ore,pepper,garlic,melon seeds, raisins, seeds,Chinese medicine,sea rice,shrimp skin,broken glass,metal pellets,the same color rod and other impurities and special materials.The sorting effect is very significant.
1. The selected materials enter the machine from the hopper at the top.With the vibration of the vibrator device,the selected materials are conveyed along the channels,enter the observation area of the sorting room, and passe between the sensor and the background plate.
2. Under the affect of the light,the system generates an output signal to drive the solenoid valve to blow out the different-colored particles to the waste hopper with the intensity of the light and the color change.And the good materials continue to fall into the finished hopper .
Technical Parameters:
| MODEL |
WYCS1-32 |
| Chutes/Channels |
1/32 |
| Throughput(t/h) |
200-600 kg/H |
| Sorting Aaccuracy |
≥99.60% |
| Power |
0.5kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<0.6M3/Min |
| Weight |
180kg |
| Diamension(L*W*H) |
460*895*1356mm |
Features:
►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
Examples Of Color Sorting
Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos.
The Catalogue Of Wenyao Color Sorter Machine
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?

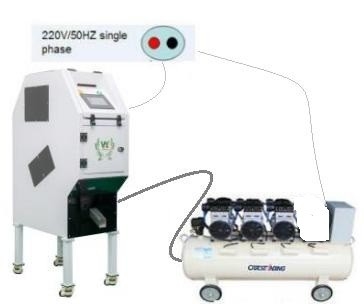

Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
