Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
ISO9001 and CE
Model Number:
From WYCS1-32 to WYCS10-640
Contact Us

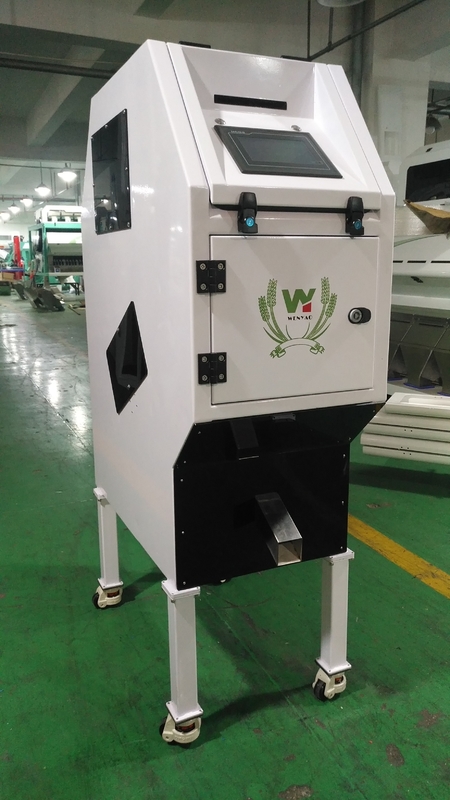

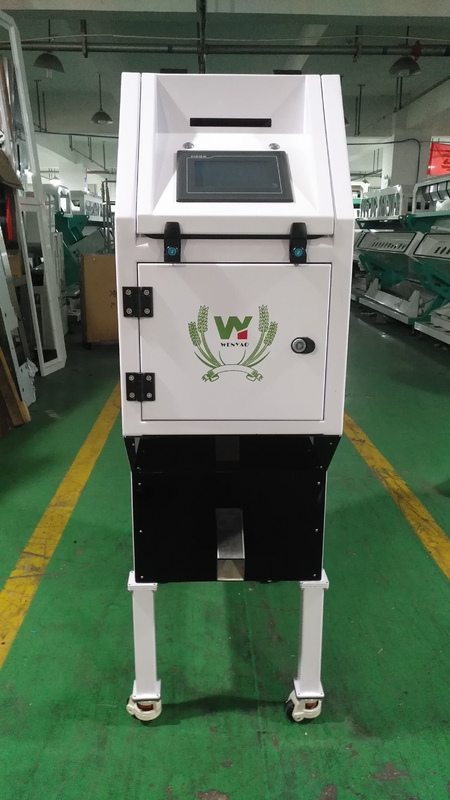

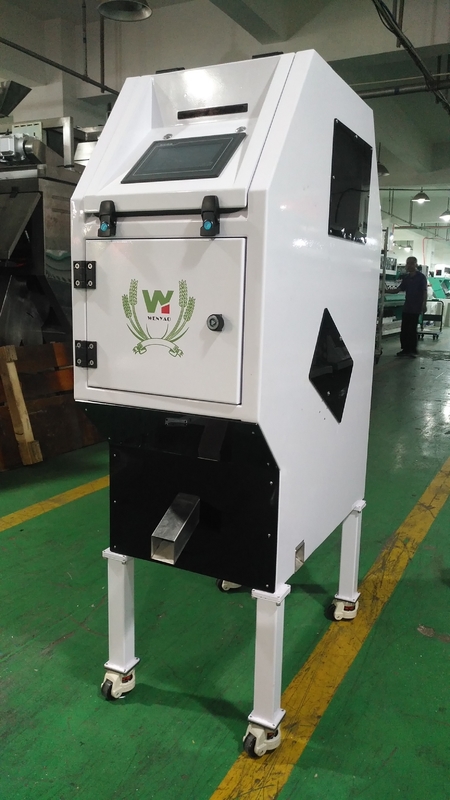

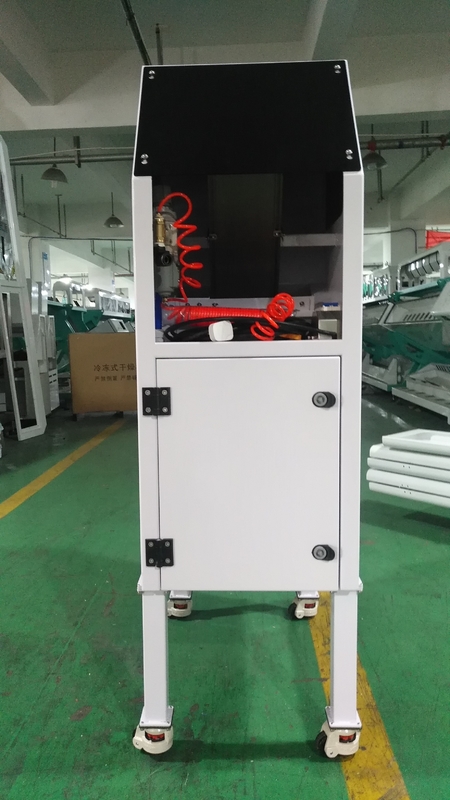

WYCS1-32 WENYAO Smallest 2022 Newest Type New Design Mini Rice Color Sorter Machine With WIFI Remote Control System
Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products.
2. Technical Parameters:
| Model | Output(t/h) | Sorting Accuracy(%) | Rejection Rate | Weight(kg) | Whole Power(KW) | Dimensions (L*W*H)mm |
Air Pressure(Mpa) |
| WYCS1-32 | 0.15-0.45 | ≥99.9 | ≥12:1 | 180 | 0.5 | 895*460*1157 | 0.6-0.8 |
| WYCS1-64 | 0.3-0.9 | ≥99.9 | ≥12:1 | 280 | 0.75 | 780*1527*1543 | 0.6-0.8 |
| WYCS2-128 | 0.6-2.5 | ≥99.9 | ≥12:1 | 450 | 1.1 | 1250*1535*1832 | 0.6-0.8 |
| WYCS3-192 | 1.0-4.0 | ≥99.9 | ≥12:1 | 600 | 1.6 | 1620*1535*1832 | 0.6-0.8 |
| WYCS4-256 | 1.4-5.0 | ≥99.9 | ≥12:1 | 750 | 2.3 | 1855*1540*1852 | 0.6-0.8 |
| WYCS5-320 | 2.0-6.0 | ≥99.9 | ≥12:1 | 900 | 2.9 | 2244*1540*1852 | 0.6-0.8 |
| WYCS6-384 | 2.5-8.0 | ≥99.9 | ≥12:1 | 1100 | 3.1 | 2595*1540*1852 | 0.6-0.8 |
| WYCS7-448 | 3.0-10.0 | ≥99.9 | ≥12:1 | 1350 | 3.9 | 2905*1540*1852 | 0.6-0.8 |
| WYCS8-512 | 3.5-12.0 | ≥99.9 | ≥12:1 | 1500 | 5 | 3025*1540*1852 | 0.6-0.8 |
| WYCS10-640 | 4.5-16.0 | ≥99.9 | ≥12:1 | 1800 | 6.5 | 3750*1540*1852 | 0.6-0.8 |
| WYCS12-768 | 5.5-20.0 | ≥99.9 | ≥12:1 | 2100 | 7 | 4430*1540*1852 | 0.6-0.8 |
3. Machine Features:
Wenyao color sorter Features:
1. Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Power source:Taiwan Meanwell
8. All LED light source,more longer lifetime and save power
9. Flexem Humanized touch screen
10. WIFI remote control system ,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service
4. Examples of Color Sorting Examples
Wenyao multifunction color sorter application
Agriculture products color sorter
Used for:Rice,Wheat,Corn,Soybean,Peanut,Nut,Grain,Cereal,Seeds,Bean,Sunflower seeds,Waltnut,Almond,Quinoa,Salt,Medlar,Pistachio,Kidney bean,Red bean,Black bean,Green bean,Coffee bean,Fava bean,Mung bean,Millet,Sorghum,Peeled garlic,Dehydrated garlic,Lotus seed,Sesame,Pinenut kernel,Watermelon seeds,Cotton seeds,Melon seeds,Buckwheat,Oats,Barley,Cardamon,Pea,Lentil,Cashew nut,Raisin,Jujube,Evaporate vegetables,Sugar,Onion,Potato,Blueberry,Tomato,Mango,Chickpea,Olives,Chili,others.
Industrial product color sorter
Used for:Waste Plastics,Plastic pellet,Plastic pieces,Plastic granule,Plastic bottle cap flake,PET bottle scrap,ABS plastic flake,PP plastic scrap,Recycled plastic,Quartz stone,Quartz sand,Potassium feldspar,Barite,Calcite,Limestone,Pearl,Marble and others.
River&Sea food color sorter
Used for: Dried shrimp, fish, small fish clove and so on.
Customized color sorter
Can be customized according to customer specific color selection program.
5. Our Service:
A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.
B: For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.
6. Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
