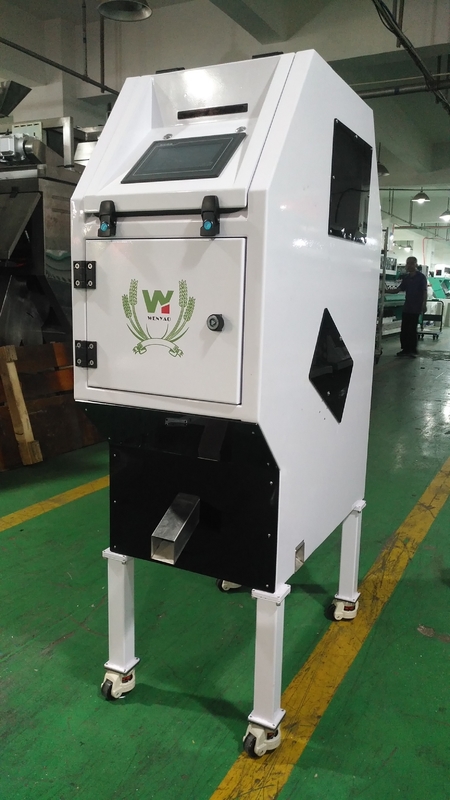

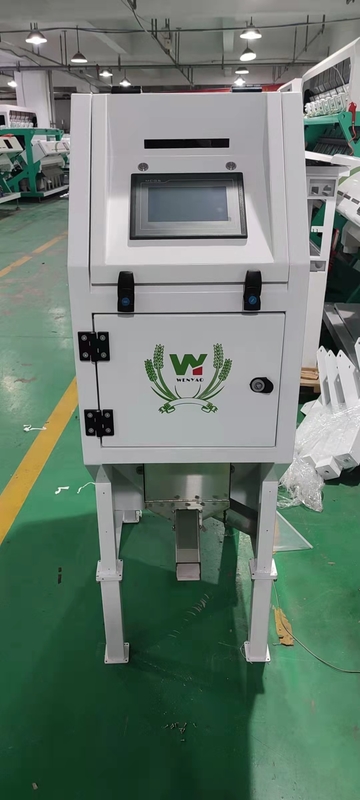

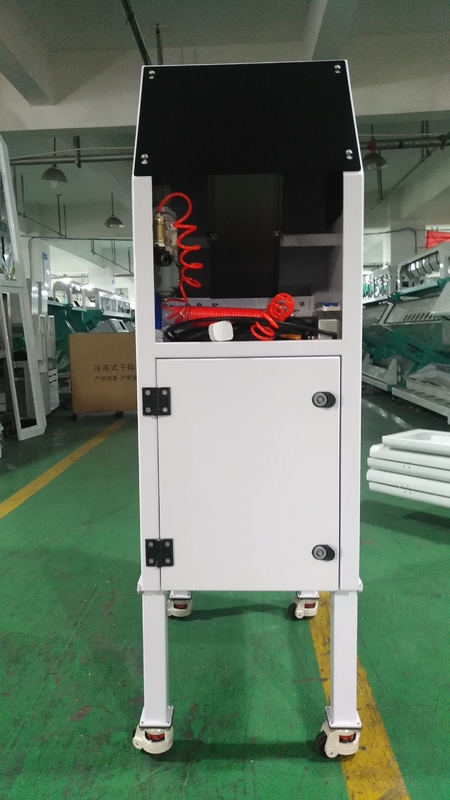

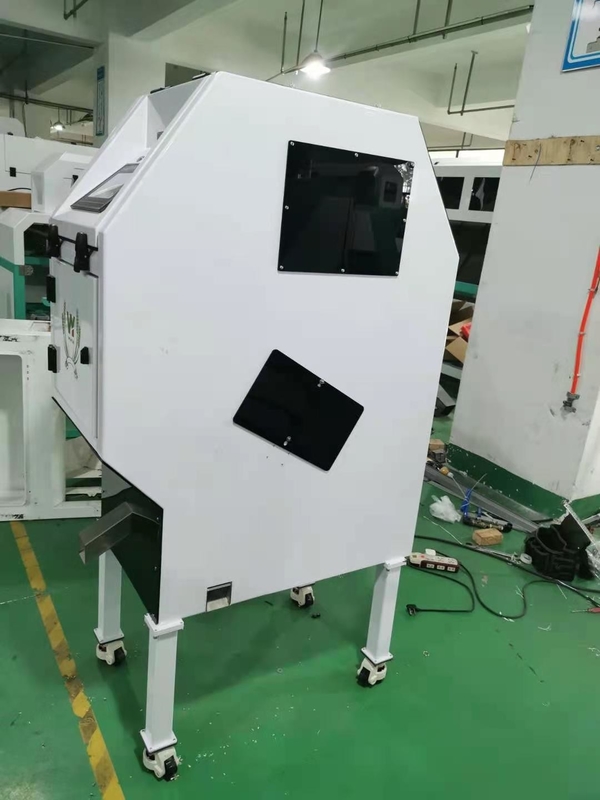

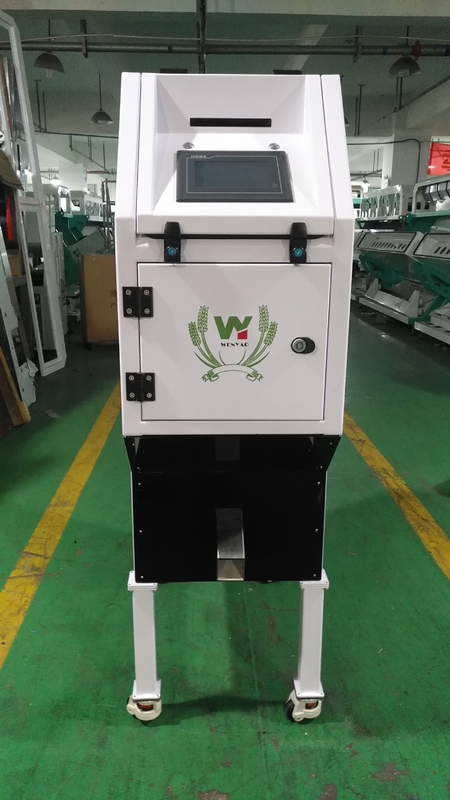

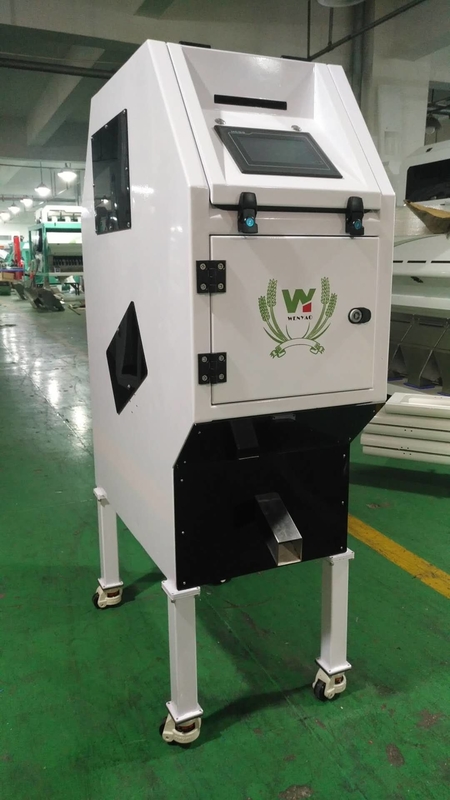

Mini CCD Cashew Nut Color Sorter Machine 32 Chute

Mini CCD Cashew Nut Color Sorter Machine 32 Chute

Mini Cashew Nut Color Sorter

Mini Cashew Nut Sorting Machine

32 Chute Cashew Nut Color Sorter

Place of Origin:

Hefei China

Brand Name:

WENYAO

Certification:

ISO9001 and CE

Model Number:

From WYCS1-32 to WYCS10-640

Contact Us

Request A Quote
Product Details
MOQ:
>=1 Piece
Sorting Accuracy(%):
>=99.995%
Condition:
Latest And Most Advanced WENYAO Brand
Power Supply:
Taiwan Meanwell Brand
Touch Screen:
12-inch Flexem Humanized Type Display
Chip:
America FPGA Process Chip
Air Filter:
CKD Filter Or SMC Filter
Lens:
Japan Nikon Lens
Chute:
32
CCD Sensor:
Japan Toshiba CCD Sensor
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package
Delivery Time
12-20work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
235Pieces Per Month
Product Description

WYCS1-32 2022 Newest Type Mini Cashew Nut Color Sorter Machine Price From WENYAO Color Sorter Machine Manufacturer

1. Do You Know Color Sorter Machine Working Flow?
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber.



2. Technical Parameters:

Mini CCD Cashew Nut Color Sorter Machine 32 Chute 0

Mini CCD Cashew Nut Color Sorter Machine 32 Chute 1







Model Output(t/h) Sorting Accuracy(%) Rejection Rate Weight(kg) Whole Power(KW) Dimensions
(L*W*H)mm
Air Pressure(Mpa)
WYCS1-32 0.15-0.45 ≥99.9 ≥12:1 180 0.5 895*460*1157 0.6-0.8
WYCS1-64 0.3-0.9 ≥99.9 ≥12:1 280 0.75 780*1527*1543 0.6-0.8
WYCS2-128 0.6-2.5 ≥99.9 ≥12:1 450 1.1 1250*1535*1832 0.6-0.8
WYCS3-192 1.0-4.0 ≥99.9 ≥12:1 600 1.6 1620*1535*1832 0.6-0.8
WYCS4-256 1.4-5.0 ≥99.9 ≥12:1 750 2.3 1855*1540*1852 0.6-0.8
WYCS5-320 2.0-6.0 ≥99.9 ≥12:1 900 2.9 2244*1540*1852 0.6-0.8
WYCS6-384 2.5-8.0 ≥99.9 ≥12:1 1100 3.1 2595*1540*1852 0.6-0.8
WYCS7-448 3.0-10.0 ≥99.9 ≥12:1 1350 3.9 2905*1540*1852 0.6-0.8
WYCS8-512 3.5-12.0 ≥99.9 ≥12:1 1500 5 3025*1540*1852 0.6-0.8
WYCS10-640 4.5-16.0 ≥99.9 ≥12:1 1800 6.5 3750*1540*1852 0.6-0.8
WYCS12-768 5.5-20.0 ≥99.9 ≥12:1 2100 7 4430*1540*1852 0.6-0.8

3. Machine Features:

Mini CCD Cashew Nut Color Sorter Machine 32 Chute 2

Wenyao color sorter Features:

1. Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Power source:Taiwan Meanwell
8. All LED light source,more longer lifetime and save power
9. Flexem Humanized touch screen
10. WIFI remote control system ,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service



4. Examples of Color Sorting Examples



Mini CCD Cashew Nut Color Sorter Machine 32 Chute 3



Wenyao multifunction color sorter application



Agriculture products color sorter
Used for:Rice,Wheat,Corn,Soybean,Peanut,Nut,Grain,Cereal,Seeds,Bean,Sunflower seeds,Waltnut,Almond,Quinoa,Salt,Medlar,Pistachio,Kidney bean,Red bean,Black bean,Green bean,Coffee bean,Fava bean,Mung bean,Millet,Sorghum,Peeled garlic,Dehydrated garlic,Lotus seed,Sesame,Pinenut kernel,Watermelon seeds,Cotton seeds,Melon seeds,Buckwheat,Oats,Barley,Cardamon,Pea,Lentil,Cashew nut,Raisin,Jujube,Evaporate vegetables,Sugar,Onion,Potato,Blueberry,Tomato,Mango,Chickpea,Olives,Chili,others.



Industrial product color sorter
Used for:Waste Plastics,Plastic pellet,Plastic pieces,Plastic granule,Plastic bottle cap flake,PET bottle scrap,ABS plastic flake,PP plastic scrap,Recycled plastic,Quartz stone,Quartz sand,Potassium feldspar,Barite,Calcite,Limestone,Pearl,Marble and others.


River&Sea food color sorter
Used for: Dried shrimp, fish, small fish clove and so on.


Customized color sorter
Can be customized according to customer specific color selection program.



5. Our Service:


A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.


B: For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.


6. Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.



Delivery Detail:
Within 15 - 20 days after received deposit.
