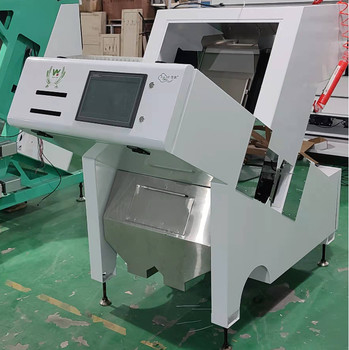

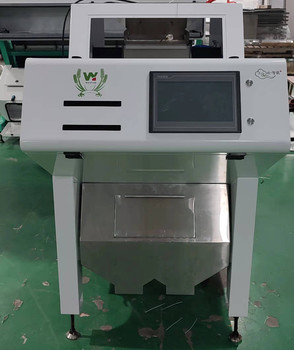

Optical Ccd Peanut Nuts Color Sorter High Capacity

Optical Ccd Peanut Nuts Color Sorter High Capacity

High Capacity Peanut Color Sorter

Peanut Ccd Color Sorter

High Capacity Nuts Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS1-64

Contact Us

Request A Quote
Product Details
Produnct Name:
Peanut Color Sorting Machine
Capacity:
800kg To 1000kg/hour
Core Component:
PLC,camera,ejector
Hopper:
Stainless Stell 304
MOQ:
1 Pcs
Light Source:
All LED Lamps
Core Selling Point:
Easy To Operate
Warranty:
2 Years
After-sales Service Provided:
WIFI Remote Support
Marketing Type:
2022 Latest Color Sorter
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H): 1040*1660*1540 mm
Delivery Time
15 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

High Capacity Peanut Color Sorter Nuts Color Sorter Ccd Optical Color Sorter





Wenyao Color Sorter Working Principle :

Color 5400CC0 sensor fifth Generation ---Pixel is higher,micro color dfference identification ability is stronger. High-speed FPGA processor---Greatly enhance the speed and efficiency for processing huge amounts of data. High-end LED lighting source system---High purity for spectrum,high stability for power supply and long life light-emitting. Intelligent shape sorting system---Special shape recognition algorithm for ensuring a high efficiency. Rich fault self-checking function---Automatic identification&warning in time. Perfect interactive system---Resolution is higher and operation is more convenient.

Optical Ccd Peanut Nuts Color Sorter High Capacity 0









Technical Parameters:

Details as following
MODEL WYCS1-64
Chutes(channels) 1(64)
Sorting accuracy(%) ≥99.9
Carryover rate (bad:good) ≥12:1
Output(kg/h) 500-800
Voltage 180-240V/50Hz/60hz
Power supply(kw) 0.9
Work Air Pressure(Mpa) 0.2-0.3
Air consumption(L/min) 200-600
Air supply(Mpa) 0.6--0.8
Dimension(L*W*H) mm 900*1520*1350
Weight(kgs) 280
Package plywood case
Package Size mm 1040*1660*1540



Working principle
1. The material enters the machine from the upper hopper, through the vibration of the supply
device (vibration feeder vibration), the selected material falls along the supply distribution
tank (chute).
2 The material passes through the upper end of the chute source and accelerates along the chute to enter the sorting box
3. After entering the sorting box, between the CCD of the image processing sensor and the
background device, using the role of the light source, the CCD receives the known synthetic
light signal from the selected material, so that the system generates an output signal,
performs amplification processing, and transmits to FPGA + ARM operation processing system, and transfer to the control system
4. The preferred materials continue to fall into the completion chamber of the hopper and enter
the completion tank, and the materials are selected to achieve the purpose of selection.



Color sorter application:

Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc.





What you can choose from us?

1. Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.

2. Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.

3. Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience

4. Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.



Our Service:
1. We not only provide you machines but also offer the professional technical guidance and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except Two years quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.



Sorting performance :

Optical Ccd Peanut Nuts Color Sorter High Capacity 1

Optical Ccd Peanut Nuts Color Sorter High Capacity 2

Optical Ccd Peanut Nuts Color Sorter High Capacity 3

Optical Ccd Peanut Nuts Color Sorter High Capacity 4







Our Custom's site:

Optical Ccd Peanut Nuts Color Sorter High Capacity 5



Optical Ccd Peanut Nuts Color Sorter High Capacity 6

Optical Ccd Peanut Nuts Color Sorter High Capacity 7
