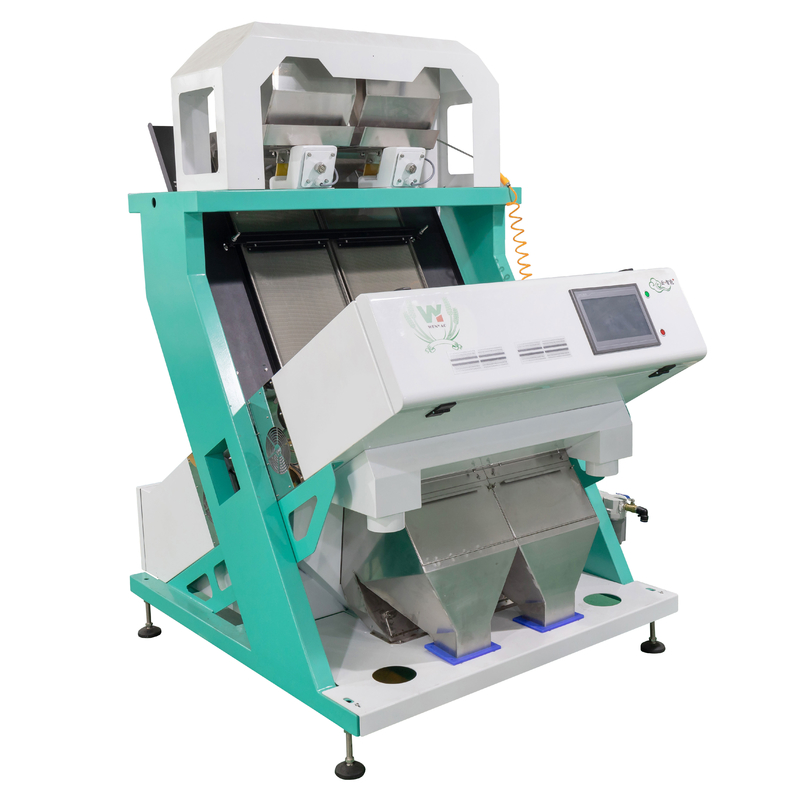

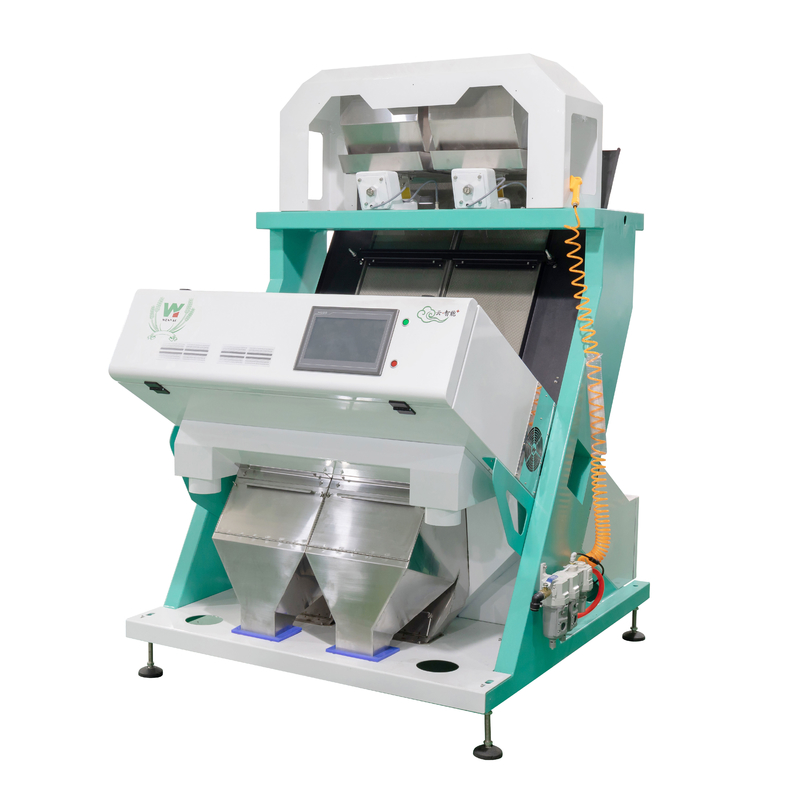

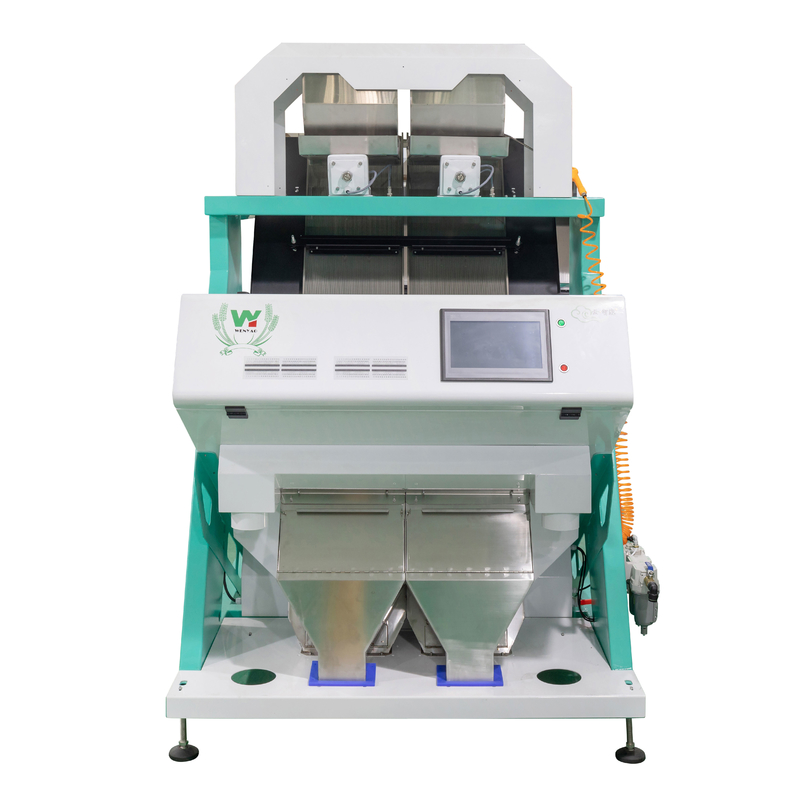

Coffee Bean / Lentil Beans Color Sorter With FPGA Processor

Coffee Bean / Lentil Beans Color Sorter With FPGA Processor

Lentil Color Sorting Machine

FPGA Processor Beans Color Sorter

Lentil Beans Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS2-128

Contact Us

Request A Quote
Product Details
Function:
Coffee Bean Color Sorting
Sorting Accuracy(%):
≥99.99
Channels:
128
Color:
Blue,according To Customer's Need
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Application:
Industrial Machine Color Sorter For Plastic Flake,plastic Granules,glass,salt,rubber
Capacity:
1T/H
CCD Sensor:
Toshiba
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood case package Packing size(L*W*H):1.77x1.54x2.10M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Coffee Bean Color Sorter Beans Color Sorter Lentil Color Sorting Machine



Color 5400CCD sensor fifth Generation ---Pixel is higher,micro color dfference identification ability is stronger. High-speed FPGA processor---Greatly enhance the speed and efficiency for processing huge amounts of data. High-end LED lighting source system---High purity for spectrum,high stability for power supply and long life light-emitting. Intelligent shape sorting system---Special shape recognition algorithm for ensuring a high efficiency. Rich fault self-checking function---Automatic identification&warning in time. Perfect interactive system---Resolution is higher and operation is more convenient.



Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 0





PARTS DETAILS:

Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 1Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 2



Working Principle:

1. The material enters the machine from the upper hopper, through the vibration of the supply
device (vibration feeder vibration), the selected material falls along the supply distribution
tank (chute).
2 The material passes through the upper end of the chute source and accelerates along the chute to enter the sorting box
3. After entering the sorting box, between the CCD of the image processing sensor and the
background device, using the role of the light source, the CCD receives the known synthetic
light signal from the selected material, so that the system generates an output signal,
performs amplification processing, and transmits to FPGA + ARM operation processing system, and transfer to the control system
4. The preferred materials continue to fall into the completion chamber of the hopper and enter
the completion tank, and the materials are selected to achieve the purpose of selection.



Technical Parameters:

MODEL WYCS2-128
Chutes/Channels 2/128
Throughput(t/h) 2-3t/h
Sorting Aaccuracy ≥99.99%
Power 1.1kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <1.2M3/Min
Weight 450kg
Diamension(L*W*H) 1250*1535*1832mm



Examples of color sorting:



Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 3Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 4



Working Principles

The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.

Our Service:
1. We not only provide you machines but also offer the professional technical guidance and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except Two years quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.

Customer's Site :
Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 5
Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 6





Packing & Delivery



Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 7Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 8Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 9Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 10



Certificate :



Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 11Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 12



Contact :

Coffee Bean / Lentil Beans Color Sorter With FPGA Processor 13
