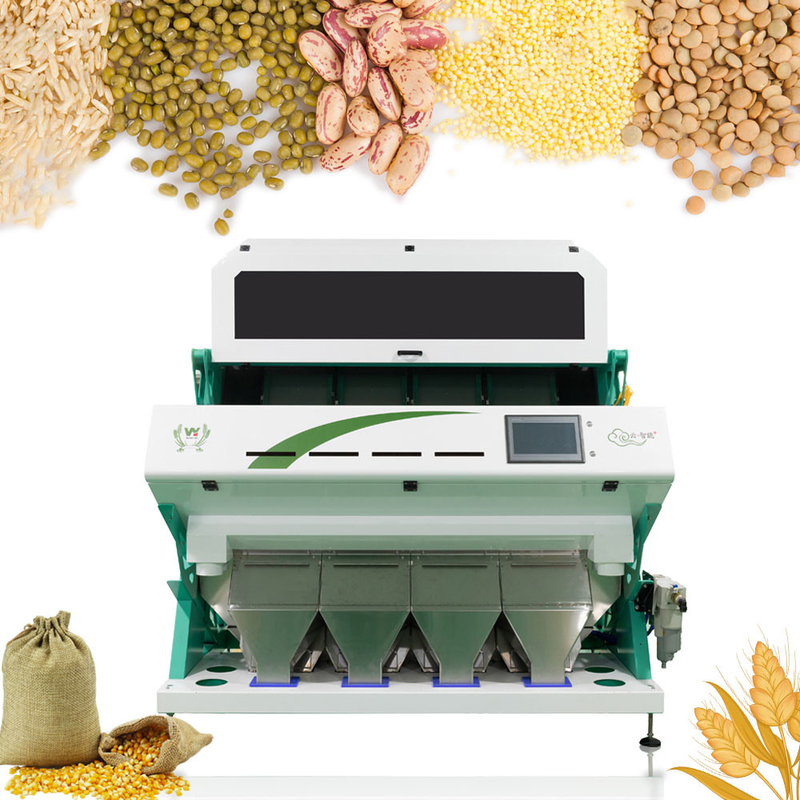

CCD Cardamom Beans Color Sorter More Than 99.99%

Colour sorter cardamom color sorting select machine beans color sorter

Technical Parameters:

1. Advanced image acquisition system: high-resolution CCD image sensor and high-precision industrial lens are used to achieve clear images, capture, and instantly capture subtle defects on the surface of materials. The camera automatically collects and analyzes data. Customers only need to click to keep or remove materials The parameter color selection can be automatically completed, and the operation is simple.

2. High reliability: Adopt high signal-to-noise ratio sensor and circuit system with superior anti-interference performance, multi-angle, all-round and three-dimensional to improve the stability and reliability of the whole machine

3. Intelligent image processing algorithms and shape selection: The color selection algorithms such as grayscale, color difference, and HSV are perfectly combined with shape selection algorithms such as size, shape, and texture to successfully solve a variety of color selection problems and maximize the sorting accuracy. Provide customers with more than 20 color selection schemes, and truly realize the function of multiple selections and multiple uses in one machine

4. High-quality solenoid valve: durable high-quality solenoid valve, long service life, extremely low air consumption, more than 1,000 operations per second, to ensure the removal of bad materials

5. Reliable LED light source configuration: advanced LED light source application technology, ultra-high brightness, long life, the background light can automatically change color 130 million colors, to meet the needs of different color selection

6. Simple and easy-to-use human operation interface: one-key intelligent parameter configuration, which minimizes the burden of customer operation and maintenance, and more than 20 color selection storage modes, which are convenient for quick switching of color selection tasks for different materials

Color sorter Principle as below:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

Examples of color sorting:

Maintenance :

Dedusting
Deash brush
Clean dusts on the rubber strip of the deash brush once a week by ash gun; check the deash brush once a month, if any loose, tighten it. Correct the rubber strip if it cannot operate steadily.

Dedusting for sorting cabinet
If any dust found on the glass inside the sorting box, rub and remove it with clean soft cloth soaked with alcohol, and check if dust wiper works normally. Start machine only after glass surface completely dried and cleaned.

Sewage discharging for filter and replacement of filter element
Sewage discharging for filter
Ambient temperature around the machine should be maintained at 0-40.
In places with night temperature may lower than 0, residual fluid inside the air compressor and air filter shall be removed after shutdown of machine. With the water discharging function, the air compressor and oil-mist separator will automatically discharge water when it reaches to certain height, while it would be difficult to discharge water as the water discharging port will be frozen when the temperature is below 0. Thus, it is required to discharge water manually.
If operate the machine with the compressed air temperature lower than 0, air supplied for the air filter and oil mist separator shall be dried by the air drier as the moist air would frozen the internal filter element, which hampers the air flow and cause damage to the filter element.

In-service inspection
During the operation, inspect the signal indication (including the work instruction, alarm indication) and spray valve operation; inspect the pressure of air compressor and its sound, with water discharging at least one time every 8h.

Maintenance after operation
Clean the feeder (especially the coagulation inside the feeder hopper), interior of the machine, material-receiving hopper and ash removing brush by air gun.
Note: it is forbidden, in cleaning the material-receiving hopper with air gun, to blow the nozzle directly with air gun, which will cause damage to the nozzle valve.

Regular maintenance and inspection
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.

Commissioning and Installation:

1. On Site Installation and Training Service by our professional engineer ;

2. Study and Learn the Machine Operation in Our Factory.

3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.

After Sales Services:

• With presence in a variety of countries, we are strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, we are managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Our machines enjoy 2 years of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.
