Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
ISO9001 and CE
Model Number:
WYCS1-32
Contact Us

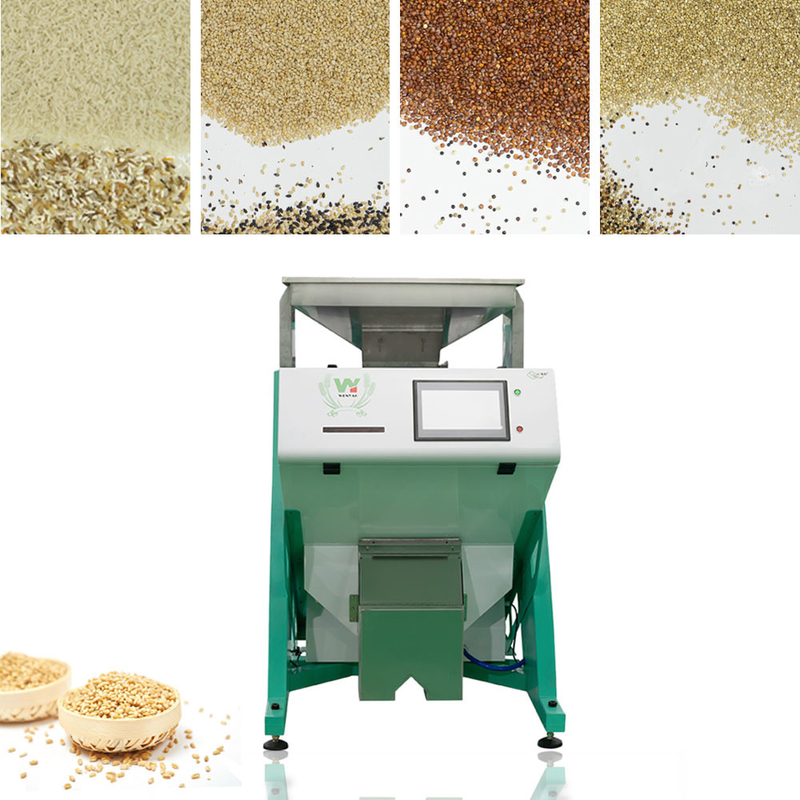

High Sorting Accuracy 1 chute Small Nigeria Parboiled Rice Color Sorter
COLOR SORTER also named color sorting machine, color sorter machine or optical sorting machine, it is according to the color differences of granular materials, using high-resolution CCD optical sensor to drive solenoid valve to sorting different granular materials.CSG Color Sorter has been widely used in many industry in the world. Such as agricultural products, food and mining industries, The most common use is sorting rice, wheat, corn, peanut, a variety of beans, seeds, tea, herbs, dried vegetables, recycled plastic, salt and ore etc
Features:
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Automatic computing and intelligent identification with high speed camera.
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 500-800 kgs/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 750w |
| Power Voltage | 180-240V/50Hz/60HZ |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 200-600 L/min |
| Weight | 280kg |
| Diamension(L*W*H) | 1556.7*800*1889mm |
2. Wenyao Color Sorting Machine Factory Introduction:
Anhui WenYao Intelligent Photoelectric Technology Co., Ltd. is located in "Science City" reputation, known
as the Great Lakes city - Anhui Hefei China. The company is located in the high-end positioning Yaohai
City Technology Industrial Park Is a comprehensive high-tech enterprise integrating scientific research,
development, production, sales and service of CCD intelligent color sorter and near infrared color sorter.
Mainly for the industry to provide high-end sorting, sorting and other equipment, has for many enterprises
and individuals to provide professional, quality products and services.
| Model | Output(t/h) | Sorting Accuracy(%) | Rejection Rate | Weight(kg) | Whole Power(KW) | Dimensions (L*W*H)mm |
Air Pressure(Mpa) |
| WYCS1-32 | 0.15-0.45 | ≥99.9 | ≥12:1 | 180 | 0.5 | 895*460*1157 | 0.6-0.8 |
| WYCS1-64 | 0.3-0.9 | ≥99.9 | ≥12:1 | 280 | 0.75 | 780*1527*1543 | 0.6-0.8 |
| WYCS2-128 | 0.6-2.5 | ≥99.9 | ≥12:1 | 450 | 1.1 | 1250*1535*1832 | 0.6-0.8 |
| WYCS3-192 | 1.0-4.0 | ≥99.9 | ≥12:1 | 600 | 1.6 | 1620*1535*1832 | 0.6-0.8 |
| WYCS4-256 | 1.4-5.0 | ≥99.9 | ≥12:1 | 750 | 2.3 | 1855*1540*1852 | 0.6-0.8 |
| WYCS5-320 | 2.0-6.0 | ≥99.9 | ≥12:1 | 900 | 2.9 | 2244*1540*1852 | 0.6-0.8 |
| WYCS6-384 | 2.5-8.0 | ≥99.9 | ≥12:1 | 1100 | 3.1 | 2595*1540*1852 | 0.6-0.8 |
| WYCS7-448 | 3.0-10.0 | ≥99.9 | ≥12:1 | 1350 | 3.9 | 2905*1540*1852 | 0.6-0.8 |
| WYCS8-512 | 3.5-12.0 | ≥99.9 | ≥12:1 | 1500 | 5 | 3025*1540*1852 | 0.6-0.8 |
| WYCS10-640 | 4.5-16.0 | ≥99.9 | ≥12:1 | 1800 | 6.5 | 3750*1540*1852 | 0.6-0.8 |
| WYCS12-768 | 5.5-20.0 | ≥99.9 | ≥12:1 | 2100 | 7 | 4430*1540*1852 | 0.6-0.8 |
3. Examples of Color Sorting Examples
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
