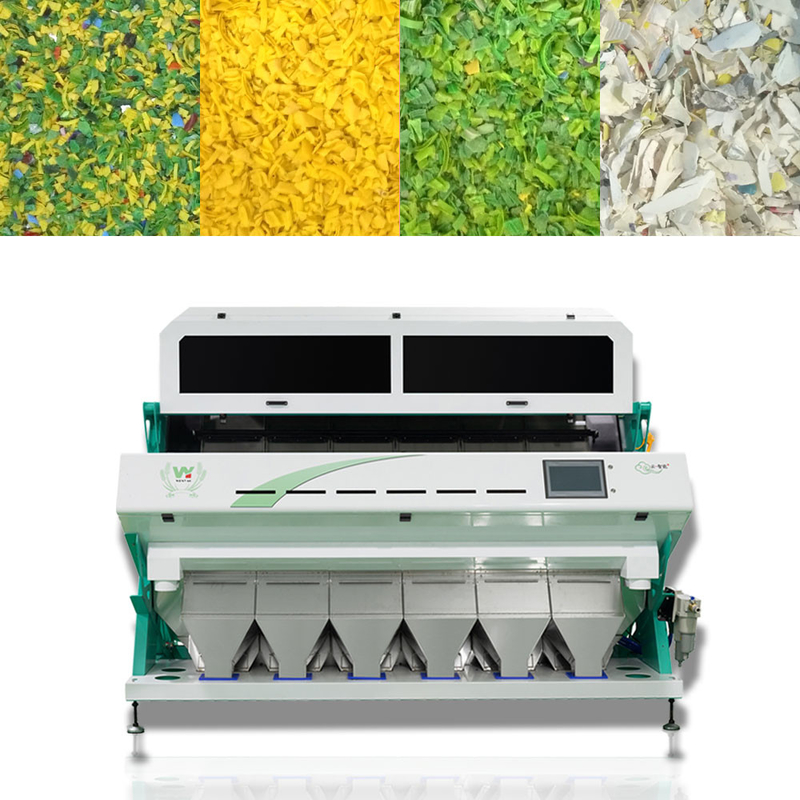

6 Chutes 384 Channels PET PP PVC HDPE PE Recycle Plastic Flakes Color Sorter Machine
Working Principle
When color sorter is working, the materials in hopper is uniformly distributed into each chute by the vibrator. While the materials are dropping,the CCD signal is running. If the cameras catch there are unqualified materials or impurities in the materials, the ejector will blow the defective goods into the hopper.
Wenyao color sorting machine technical parameters:
| MODEL | WYCS6-384 |
| Chutes/Channels | 6/384 |
| Throughput(kg/h) | 600-1200kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.1kw |
| Power Voltage | 180-240V/50Hz/60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 1.5-3.2M3/Min |
| Weight | 1100kg |
| Diamension(L*W*H) | 2595*1540*1852mm |
Color sorter sorting effects :
Parking and delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details:
Within 15 - 20 days after received the 30% deposit
Our customers' case:
Color sorter application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp
