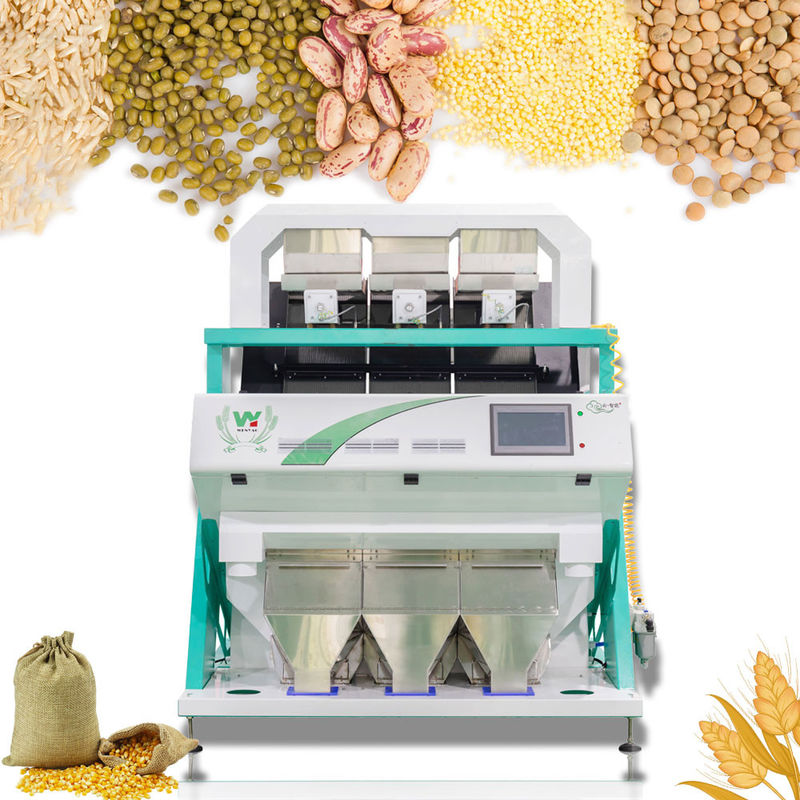

WENYAO Color Sorter
Cheap price Hot Product Rice Color Sorter Rice Color Sorting Machine
What is color sorter machine?
Color sorter machine is an equipment that automatically sorts out different color particles in granular material photoelectechnology according to the difference of material color.
The selected material enters the machine from the hopper at the top, passes through the vibration of the vibrator device, slides down the channel, accelerates its descent into the observation area of the sorting room, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the system generates output signals to drive the solenoid valve to blow out the different color particles into the waste material cavity of the receiving hopper, and the good selected material continue to fall into the finished product cavity of the receiving hopper, so as to achieve the purpose of selection.
Wenyao Rice Color Sorter Machine Description
Technical Parameters
| MODEL | WYCS3-192 |
| Chutes/Channels | 3/192 |
| Throughput(t/h) | 3-6 |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.6kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 0.8-1.8M3/Min |
| Weight | 600kg |
| Diamension(L*W*H) | 1620*1535*1832mm |
Device Features
◉camera : Japanese lens, Toshiba sensors with power of 16 megapixels (5400 CCD) micro-color detection capability
◉ Germany's OSRAM LED
◉ American ALTRA Processor
◉ of Japanese SMC Pneumatic Systems
◉ 15-inch NEC monitors
◉ of Vision's production ejectors with lifetime guarantee
◉ equipped with dust absorption system
◉ equipped with artificial intelligence, adjusting the device with the help of AI
◉ scanning capability up to 30,000 times per second, leading to up to three times more performance than other sorters.
Persian Software
◉ software upgrade capability
◉ reducing energy consumption
Our service:
--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color according to customers’ favor.
--3)Any time customers has problem for using the machine can contact us, and also for large plant, we can send install video or technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.
What you can choose from wenyao?
---Over 15 years experiences focus on color sorter machine,the biggest factory in China.
---Two years warranty for the whole machine and accessories.
---Advanced equipment, high quality.
---Professional skills, all-related services .
---High quality and efficiency technology .
---Complete production line, quick delivery .
---Exporting to more than 100 countries and regions
---Two years warranty for the whole machine and accessories.
company prifile
Development of ANHUI WENYAOANHUI WENYAO Optoelectronic Technology Co., Ltd combined with design, manufacture and sell high-tech optical color sorter machine of sorting wheat, rice, tea, melon seeds, grains, coarse cereals, nuts, dried vegetables, dried seafood, plastics, ores, ect. Supply the Service to customers from Asia, the Middle East European, South Africa and African markets.ANHUI WENYAO Target MarketANHUI WENYAO designs, manufactures, and markets for worldwide Importers, Agencies and Buyers who're in pursuit of Color sorter machine.Corporate cultureWe always follows the principle of corporate culture which covers appropriate design and first-class quality of products also the efficient implementation force in manufacturing. Extensive experience and industry ability Through countless years of cooperation and OEM experience with international partners, ANHUI WENYAO has streamlined the proper procedures and processes, open up the professional techniques that are ahead of the color sorting field and deliver the highest-quality products to every corner of the world. Specialty and high standardsANHUI WENYAO specializes in technological progress and innovation of color sorter. Our professional team can help you to do your own designs and technology upgrading, provide excellent value to customers.ANHUI WENYAO quality control and assurance team strictly adheres to and applies the principle of Quality first and test requests along every step of the supply chains and to every aspect of its production making.Diversified and qualified suppliersANHUI WENYAO has in-depth knowledge of China's color sorter industry. We have tremendous resources and abilities to locate raw materials and components suppliers as well as manufacturers of partically-finished color sorter machine. ANHUI WENYAO also has rich experience in collaborating with domestic suppliers for many years. Quick delivery timeIn this high-paced global environment, lead time means essential to success. Anhui Wenyao guarantees its products to be delivered to glob
color sorter application
