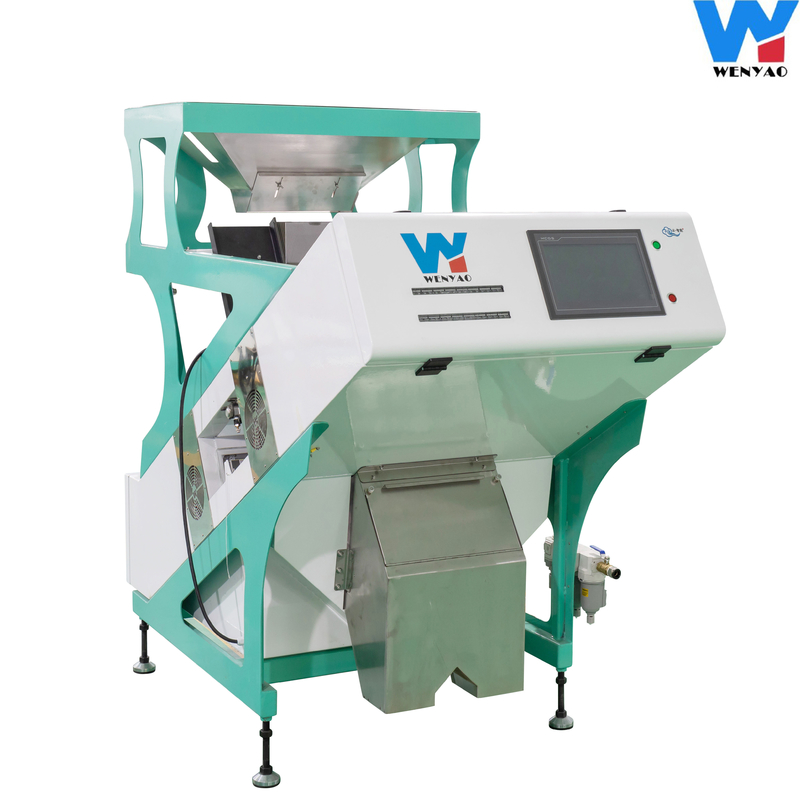

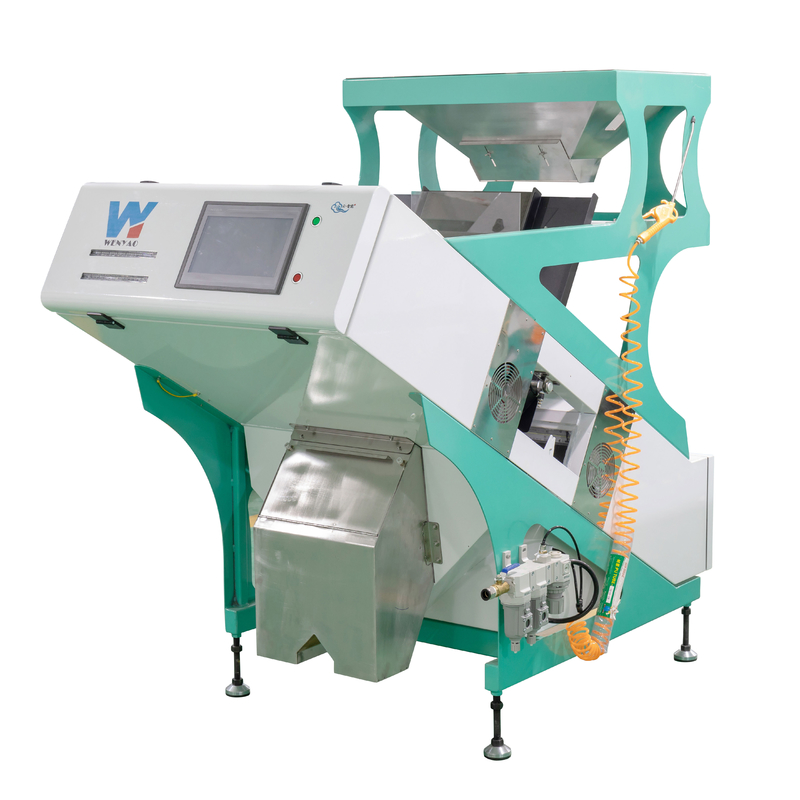

Low Consumption Color Sorting Machine Impurities Choosed For Food and Beverage Plant
Wenyao Color Sorting Machine Working Principle
When color sorter is running , the materials in the hopper is uniformly distributed into each chute because of the action of vibrator.while the materials dropping ,CCD sensor is starting.If the cameras catach the unqualified materials or impurities,PLC will order the ejector to blow the bad goods into the hopper.
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
Features:
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Automatic computing and intelligent identification with high speed camera.
Company profile:
Machine Mode:
Examples Of Color Sorting Materials
FAQ:
1. How to install and use the machine?
The Installating instructions or videos for the clinets are provided.If needed, our engineers will help the clients to train the operators.
2. How long about the guarantee period?
2 years for core components. Lifelong software upgrade services are provided for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
By videos or by remote control or local service or engineers could go abroad when required.
