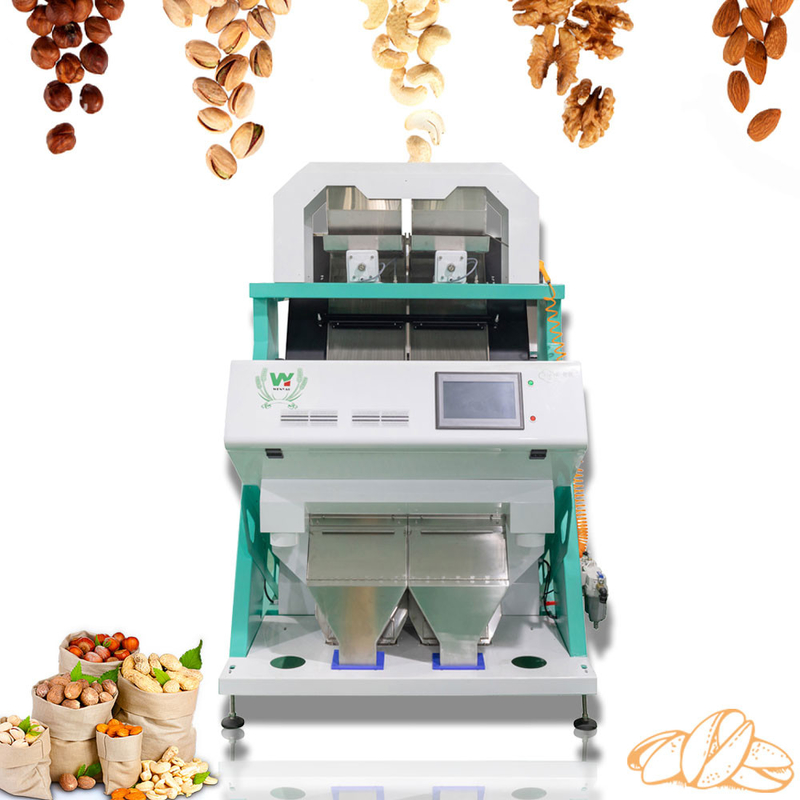

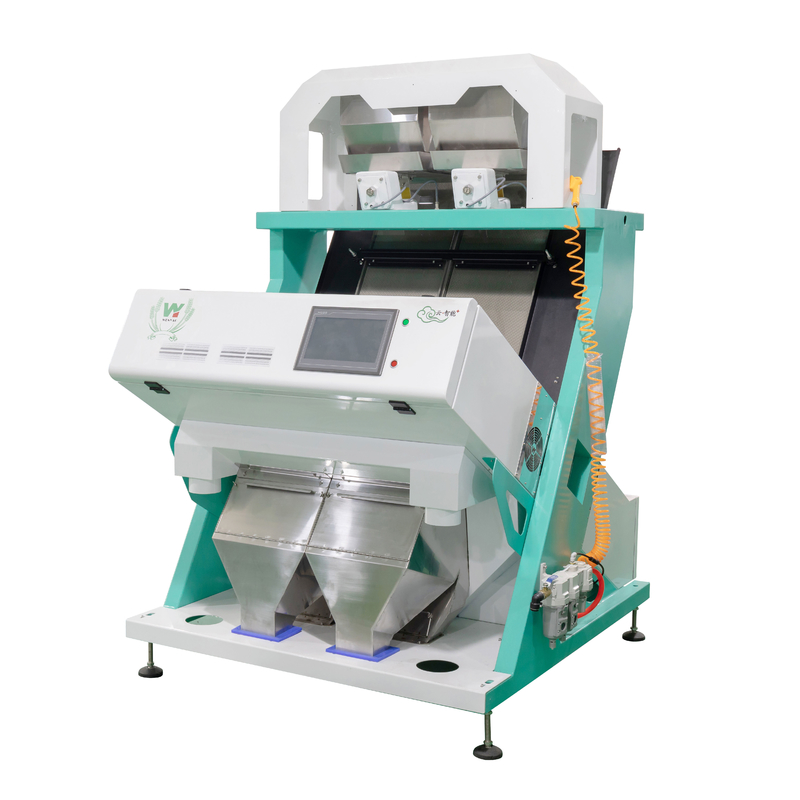

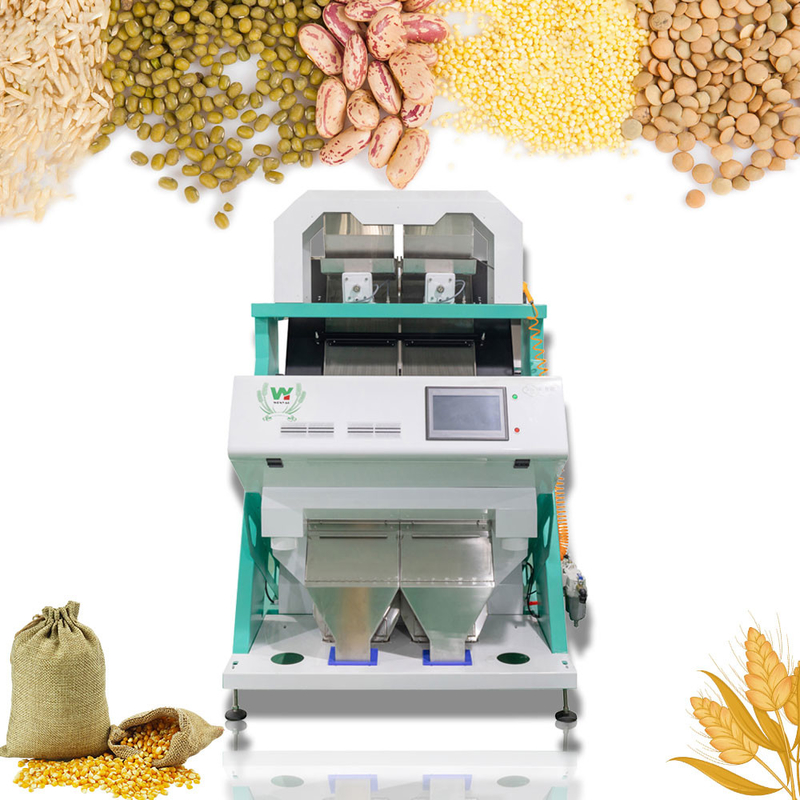

2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator

2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator

grain sorting machine

grain color sorter machine

2 Chute Optical Ccd Color Sorter

Place of Origin:

Hefei,China

Brand Name:

WENYAO

Certification:

ISO9001,CE

Model Number:

WYCS2-128

Contact Us

Request A Quote
Product Details
Product Name:
Wheat Barley Quinoa Color Sorting Machine
Sorting Accuracy(%):
≥99.99
Application:
Oat Seeds Beans Rice Plastic Color Sorting
Function:
Remove The Impurities By Color
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Color:
Randomly According To The Fact Situation
Warranty:
2 Years For Whole Machine
Condition:
2022 Newest
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiated
Packaging Details
Plywood case package Packing size(L*W*H):1.70x1.0x1.55M
Delivery Time
3-5 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment Wheat Barley Quinoa Separator



Photoelectric color sorter is a non-destructive sorting equipment used for quality inspection and grading of bulk materials. It is widely used in grain, food, pigment chemical industry and other industries. , all kinds of beans, all kinds of rice, ore, pepper, pepper, garlic, melon seeds, raisins, seeds, traditional Chinese medicine, dried shrimps, small shrimp, cloves, glass, metal, the same color rod and other malignant impurities and special materials sorting The effects are very significant.



2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 0

2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 1

Technical Parameters

Model WYCS1-64 WYCS2-128 WYCS3-192 WYCS4-256
Chute/Channel 1/64 2/128 3/192 4/256
Throughput(t/h) 1 Ton /H 0.6-2.5 Ton /H 1-4 Ton /H 1.4-5 Ton /H
Sorting Aaccuracy ≥99.99% ≥99.99% ≥99.99% ≥99.99%
Power 0.75kw 1.1kw 1.6kw 2.3kw
Power Voltage 180-240V/50Hz 180-240V/50Hz 180-240V/50Hz 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa
Air Consumption <0.6M3/Min <0.6M3/Min <0.6M3/Min <0.6M3/Min
Weight 280kg 450kg 600kg 750kg
Diamension(L*W*H) L780*W1527*H1543mm L1250*W1535*H1832mm L1620*W1535*H1832mm L1855*W1540*H1852mm



Model WYCS5-320 WYCS6-384 WYCS7-448 WYCS8-512
Chute/Channel 5/320 6/384 7/448 8/512
Throughput(t/h) 2-6 Ton /H 2.5-8 Ton /H 3-10 Ton /H 3.5-12 Ton /H
Sorting Aaccuracy ≥99.99% ≥99.99% ≥99.99% ≥99.99%
Power 2.9kw 3.1kw 3.9kw 5kw
Power Voltag 180-240V/50Hz 180-240V/50Hz 180-240V/50Hz 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa
Air Consumption <0.6M3/Min <0.6M3/Min <0.6M3/Min <0.6M3/Min
Weight 900kg 110kg 1350kg 1500kg
Diamension(L*W*H) L2244*W1540*H1852mm L2595*W1540*H1852mm L2905*W1540*H1852mm L2905*W1540*H1852mm



Advantages:

►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►5400Pixel CCD image acquisition system with high speed chip.

►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►Automatic computing and intelligent identification with high speed camera.



2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 2































































High Performance Sorting Performance for Reference



 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 3  2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 4 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 5
2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 6 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 7 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 8
2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 9   2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 10   2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 11




Key Components

2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 12



Customer Cases:

2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 13

2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 14 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 15
2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 16 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 17
2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 18 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 19
2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 20 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 21



Related Products for Chosing:



2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 222 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 23 2 Chute 0.6-2.5ton/H Optical Ccd Color Sorter Processing Equipment wheat Barley Quinoa Separator 24



How to select a most suitable machine:



Step 1: Confirm the products which you want to sort

            Food materials:
           Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.



           Plastic materials:

           Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.



          Mineral materials:
          Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.



Step2: What's the capacity per hour will you needs

           Such as: 300kg/h, 500kg/h, 800kg/h, 1ton, 3ton,5 ton...,etc



Step 3: Provide three pictures for us reference

         Raw material photo

         Accepted product photo

         Rejected product photos



FAQ:



1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.

2. How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. what about the after sales service?

Yes, By videos or by remote control or local service or engineers could go abroad when required.


5/320
