Place of Origin:
Hefei,China
Brand Name:
WENYAO
Certification:
ISO9001,CE
Model Number:
WYCS3-192
Contact Us

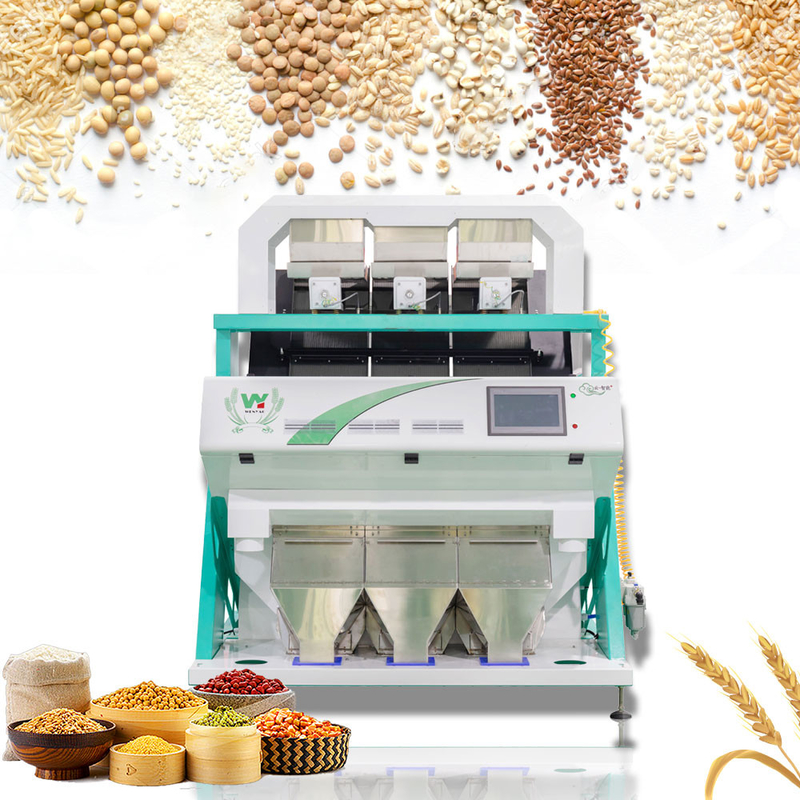

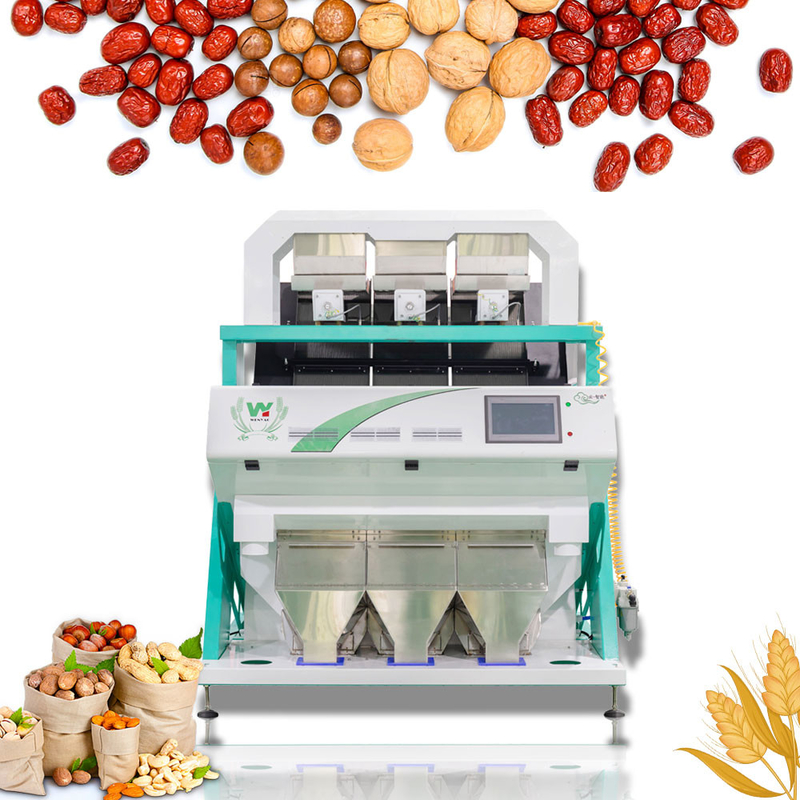

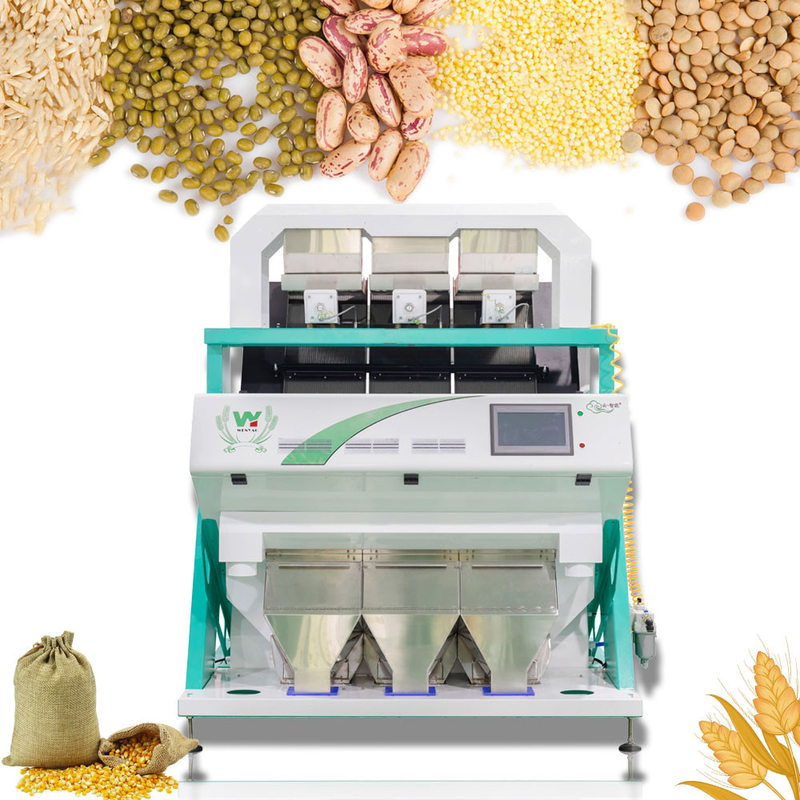

1.6KW 220V Grain Color Sorter , Sesame Seeds Coffee bean Mung bean Processing Machine
Photoelectric color sorter is a non-destructive sorting equipment used for quality inspection and grading of bulk materials. It is widely used in grain, food, pigment chemical industry and other industries. , all kinds of beans, all kinds of rice, ore, pepper, pepper, garlic, melon seeds, raisins, seeds, traditional Chinese medicine, dried shrimps, small shrimp, cloves, glass, metal, the same color rod and other malignant impurities and special materials sorting The effects are very significant.
Technical Parameters
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 | WYCS4-256 |
| Chute/Channel | 1/64 | 2/128 | 3/192 | 4/256 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H | 1.4-5 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw | 2.3kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg | 750kg |
| Diamension(L*W*H) | L780*W1527*H1543mm | L1250*W1535*H1832mm | L1620*W1535*H1832mm | L1855*W1540*H1852mm |
| Model | WYCS5-320 | WYCS6-384 | WYCS7-448 | WYCS8-512 |
| Chute/Channel | 5/320 | 6/384 | 7/448 | 8/512 |
| Throughput(t/h) | 2-6 Ton /H | 2.5-8 Ton /H | 3-10 Ton /H | 3.5-12 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 2.9kw | 3.1kw | 3.9kw | 5kw |
| Power Voltag | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 900kg | 110kg | 1350kg | 1500kg |
| Diamension(L*W*H) | L2244*W1540*H1852mm | L2595*W1540*H1852mm | L2905*W1540*H1852mm | L2905*W1540*H1852mm |
Advantages:
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Automatic computing and intelligent identification with high speed camera.
High Performance Sorting Performance for Reference
| |
|
|
|
|
|
|
|
|
Key Components
Customer Cases:
|
|
|
|
|
|
|
|
Related Products for Chosing:
How to select a most suitable machine:
Step 1: Confirm the products which you want to sort
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Step2: What's the capacity per hour will you needs
Such as: 300kg/h, 500kg/h, 800kg/h, 1ton, 3ton,5 ton...,etc
Step 3: Provide three pictures for us reference
Raw material photo
Accepted product photo
Rejected product photos
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
