Place of Origin:
Anhui China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS6-384
Contact Us
Video
Video

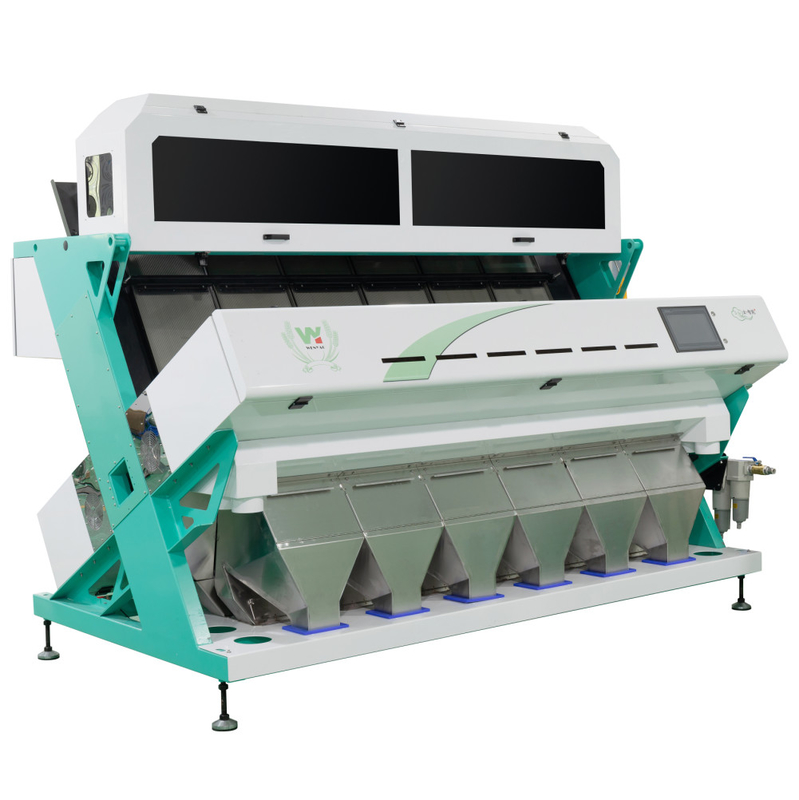

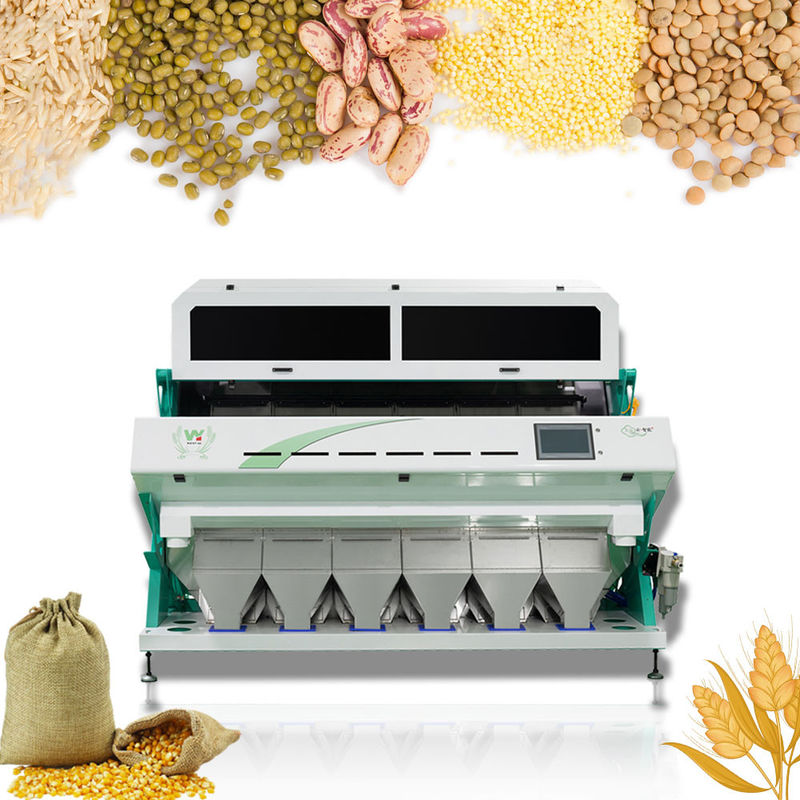

High Quality Lentil ChickPeas RGB Color Sorter Machine Color Sorting Machine
| MODEL | WYCS6-384 |
| Chutes(channels) | 6(384) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥15:1 |
| Output(T/h) | ≥5T/H |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.1 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1500-3200 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2595*1540*1852 |
| Weight(kgs) | 1100 |
| Package | Plywood case |
| Package Size mm | 2645*1590*1902 |
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
Color Sorter Machine Work Principle:
Machine Advantages:
Examples of color sorting:
From Customer's Site :
1. Automatic computing and intelligent identification with high speed camera.
2. 5400Pixel CCD image acquisition system with high speed chip.
3. Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
4. Self design high frequency ejectors,It means high speed and accurate sorting performance.
5. Low temperature LED light source system,Cooling system to make the LED lamp more long life.
6. WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
7. Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
