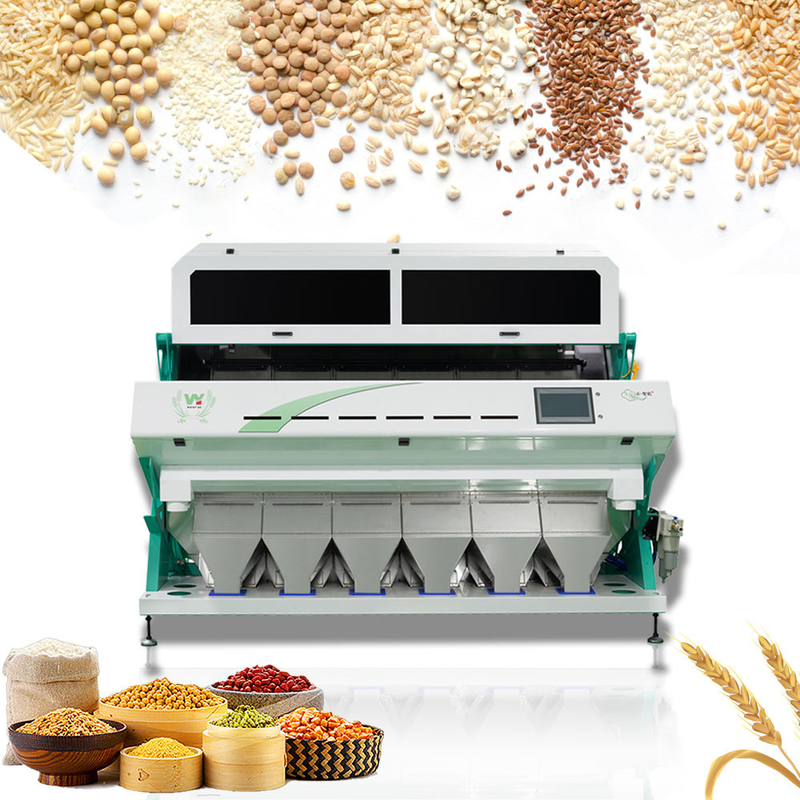

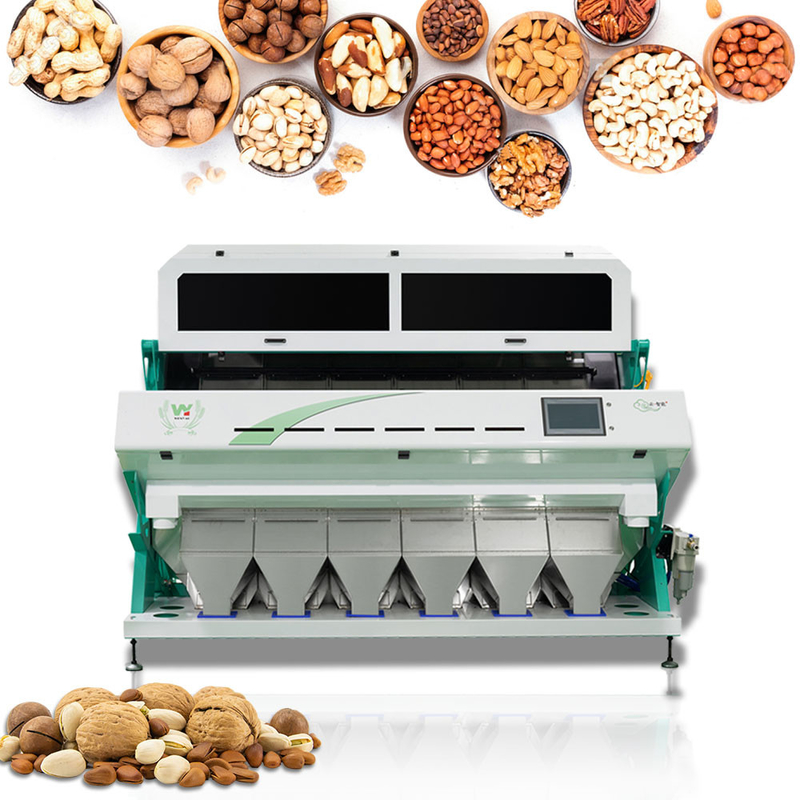

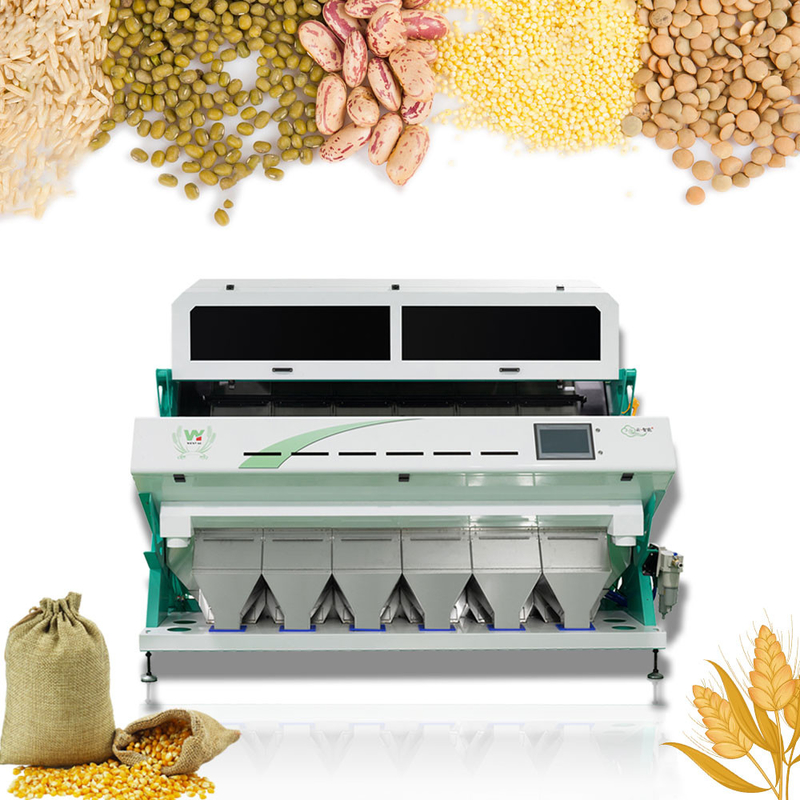

High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate

High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate

bean color sorter

bean sorting machine

Place of Origin:

Hefei,China

Brand Name:

WENYAO

Certification:

CE,SGS,ISO 9001

Model Number:

WYCS6-384

Contact Us

Request A Quote
Product Details
Advantage:
High Speed & Accuracy
Chute/Channels:
6/384pcs
Camera:
Japan Toshiba Brand
Application:
Rice,Seeds,Nuts,Plastic,Ore,Tea Color Sorting
Air Filter:
CKD
Warranty:
2 Years
Color:
Customized
Material:
304 Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1 UNIT
Price
Negotiable
Packaging Details
Plywood Wooden Box with PE film wrapped
Delivery Time
5-7 work days
Supply Ability
300pcs per month
Product Description

High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate​



Main Features:

1. Excellent sorting performance: Advanced image acquisition system + intelligent

image processing algorithm + high quality ejection system=excellent output and

rejection

2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5340 pixel

CCD high speed linear scan imaging sensor also first-class tailored camera lens for color

sorting with a precision identifying tiny defects till 0.01m2

3.Super ease operation system: Simple optical system design and accurate in time auto

calibration system plus simplified GUI design help reduce complicacies of machine

commissioning and running, easy operation and maintenance secured.

4. Customized image processing algorithm: Intelligence algorithm integrating image

color difference and defect size difference;

5. Long-life software upgrading for free.

6.OEM service welcomed.



Technic Parameters



Model WYCS1-64 WYCS2-128 WYCS3-192 WYCS4-256
Chute/Channel 1/64 2/128 3/192 4/256
Throughput(t/h) 1 Ton /H 0.6-2.5 Ton /H 1-4 Ton /H 1.4-5 Ton /H
Sorting Aaccuracy ≥99.99% ≥99.99% ≥99.99% ≥99.99%
Power 0.75kw 1.1kw 1.6kw 2.3kw
Power Voltage 180-240V/50Hz 180-240V/50Hz 180-240V/50Hz 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa
Air Consumption <0.6M3/Min <0.6M3/Min <0.6M3/Min <0.6M3/Min
Weight 280kg 450kg 600kg 750kg
Diamension(L*W*H) 780*1527*1543mm 1250*1535*1832mm 1620*1535*1832mm 1855*1540*1852mm


Color Sorting Machine Working priciple:

High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate 0

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)



Wenyao Color Sorting Machine Highlight Features:

1. Excellent sorting performance: Advanced image acquisition system + intelligent image processing algorithm + high quality ejection system=excellent output and rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5400 pixel,CCD high speed linear scan imaging sensor also first-class tailored camera lens for color sorting with a precision identifying tiny defects till 0.01m
3. Super ease operation system: Simple optical system design and accurate in time auto,calibration system plus simplified GUI design help reduce complicacies of machine,commissioning and running, easy operation and maintenance secured.
4. Customized image processing algorithm: Intelligence algorithm integrating image
color difference and defect size difference;
5. Long-life software upgrading for free.
6. OEM service welcomed.


Packing and delivery:
High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate 1










Our custom's site:

High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate 2
High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate 3
High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate 4
High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate 5

Our service:

Pre-Sales Service:

* Inquiry and consulting support.

* Sample testing for free support.

* View our Factory.

After-Sales Service:

* Video indication about machine installment and operation;

* Training how to install the machine, training how to use the machine for free.

* Engineers available to service machinery overseas.

* 7*24 online service hot-line.

* Life-long service for net cost spare parts.



How can a color sorter benefit your business?

Multi-Functional

This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.

High Efficiency

Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.



Frequently Asked :

Questions:

1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2. How long about the guarantee period?

Two years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipment, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. How about after sales service?

By videos or by remote control or local service or engineers could go abroad when required.
5. Will you accept L/C as payment?
L/C ,T/T both OK.

6. Will you test machine before delivery ?

Yes , we will test carefully before delivery ,and save parameters in the machine .


Package :

High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate 6

High Speed 6 Chute RGB Rice Macadamia Coffee beans Color Sorting Machine with CE certificate 7
