Place of Origin:
Hefei,China
Brand Name:
WENYAO
Certification:
ISO9001,CE
Model Number:
WYCS2-128
Contact Us

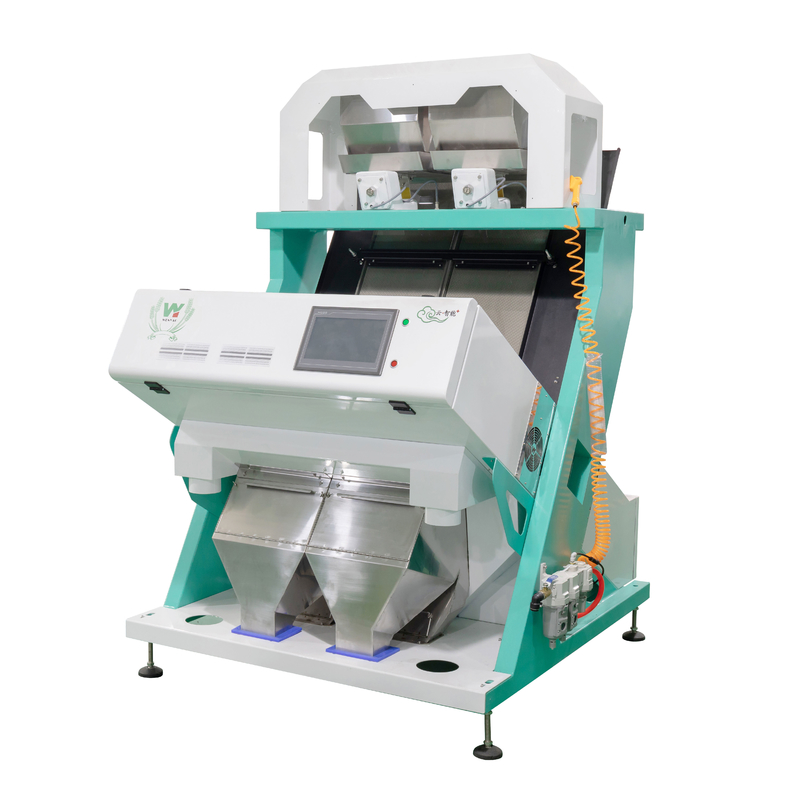

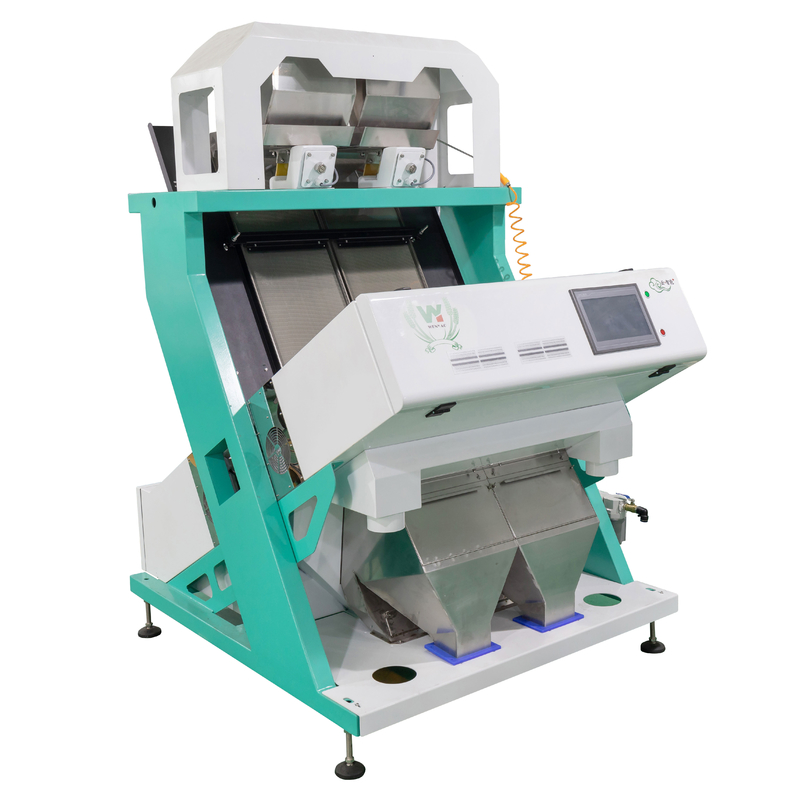

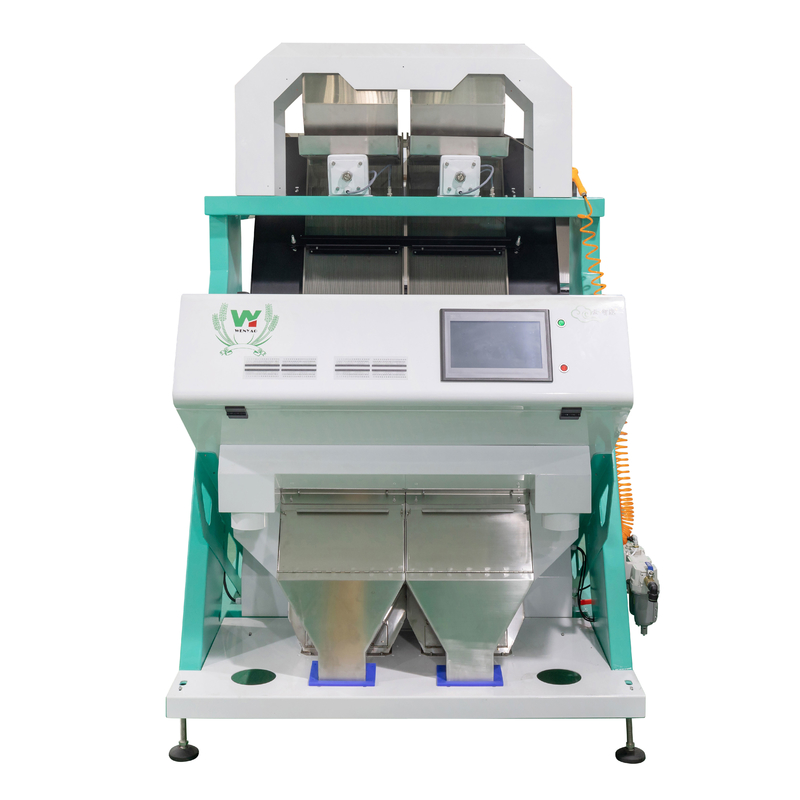

Agriculture Wheat Barley Grain Color Sorter Machine Optical Color Sorting Machine
Color Sorter Function
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Photoelectric color sorter is a non-destructive sorting equipment used for quality inspection and grading of bulk materials. It is widely used in grain, food, pigment chemical industry and other industries. , all kinds of beans, all kinds of rice, ore, pepper, pepper, garlic, melon seeds, raisins, seeds, traditional Chinese medicine, dried shrimps, small shrimp, cloves, glass, metal, the same color rod and other malignant impurities and special materials sorting The effects are very significant.
Technical Parameters
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 | WYCS4-256 |
| Chute/Channel | 1/64 | 2/128 | 3/192 | 4/256 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H | 1.4-5 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw | 2.3kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg | 750kg |
| Diamension(L*W*H) | L780*W1527*H1543mm | L1250*W1535*H1832mm | L1620*W1535*H1832mm | L1855*W1540*H1852mm |
| Model | WYCS5-320 | WYCS6-384 | WYCS7-448 | WYCS8-512 |
| Chute/Channel | 5/320 | 6/384 | 7/448 | 8/512 |
| Throughput(t/h) | 2-6 Ton /H | 2.5-8 Ton /H | 3-10 Ton /H | 3.5-12 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 2.9kw | 3.1kw | 3.9kw | 5kw |
| Power Voltag | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 900kg | 110kg | 1350kg | 1500kg |
| Diamension(L*W*H) | L2244*W1540*H1852mm | L2595*W1540*H1852mm | L2905*W1540*H1852mm | L2905*W1540*H1852mm |
Advantages:
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Automatic computing and intelligent identification with high speed camera.
High Sorting Performance for Reference
 |
|
|
|
|
|
|
|
|
Key Components
Customer Cases:
|
|
|
|
|
|
|
|
Related Products for Chosing:
How to select a most suitable machine:
Step 1.Which kinds of the material do you want to sort ?
Step 2.How much input capacity for the raw materials per hour?
Step 3.In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)
1. who are we?
We are the latest color sorter R&D and sales base in hefei city China.We are professional color sorter manufacturer.
2. what can we do for you?
We will provide solutions to improve the quality of your materials. In order to increase the unit price and sales of your materials
3. What is color sorter?
Color Sorters used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
4. What materials can be sorted
Rice, cereal, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. If you want to sort other materials, please contact our customer service.
