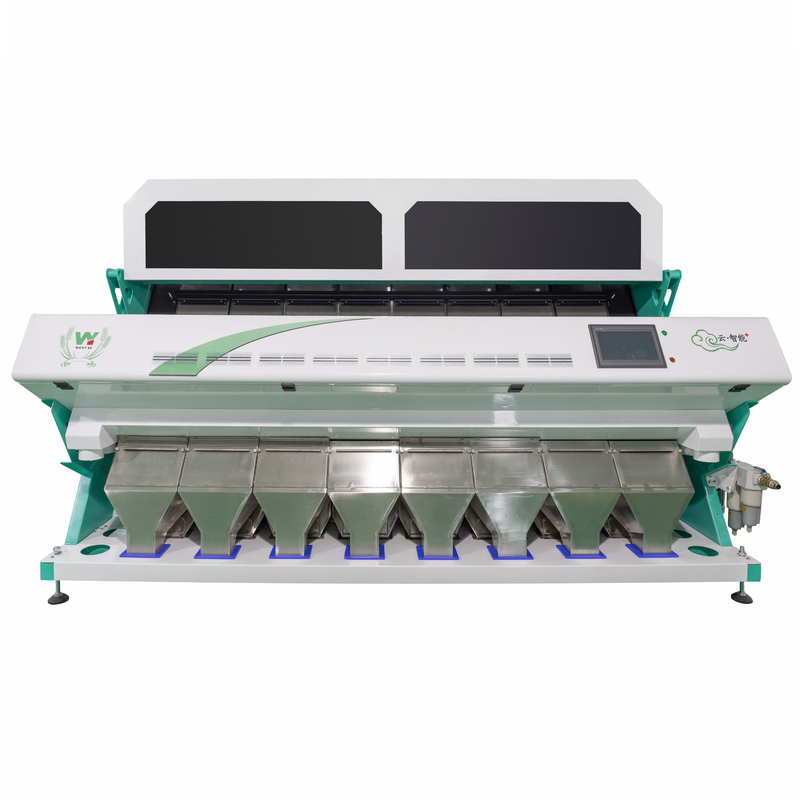

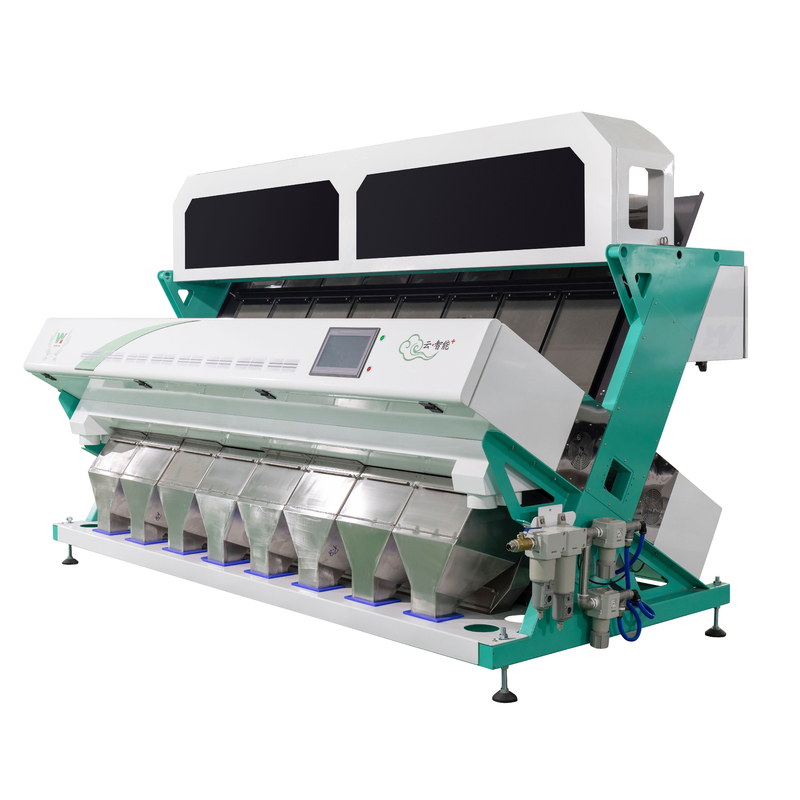

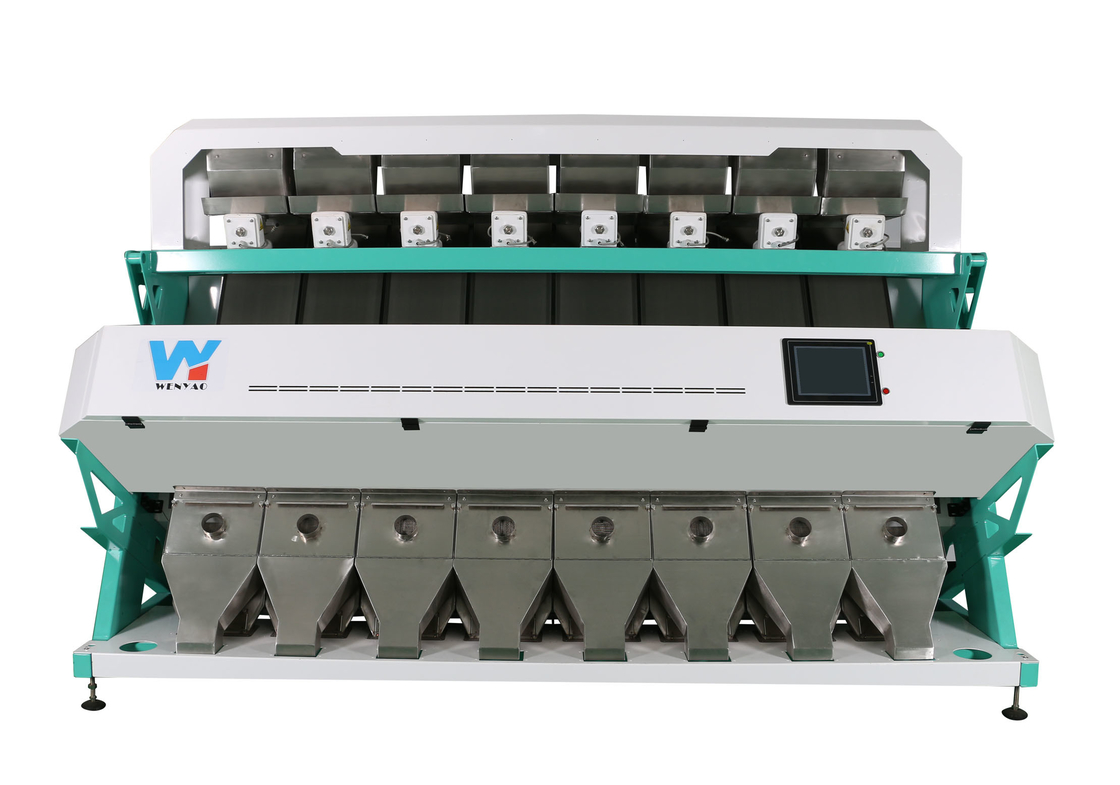

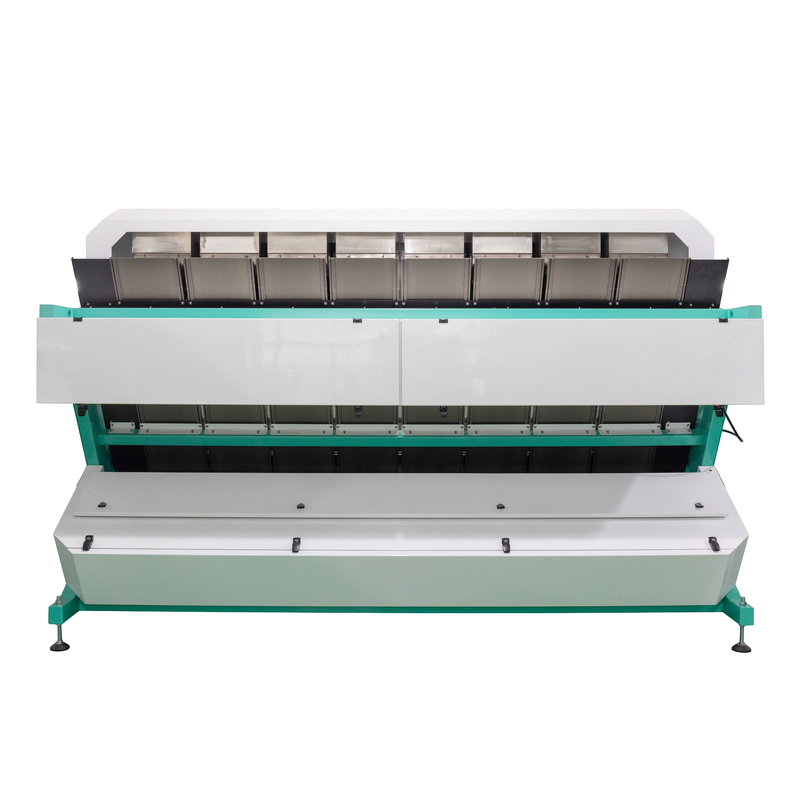

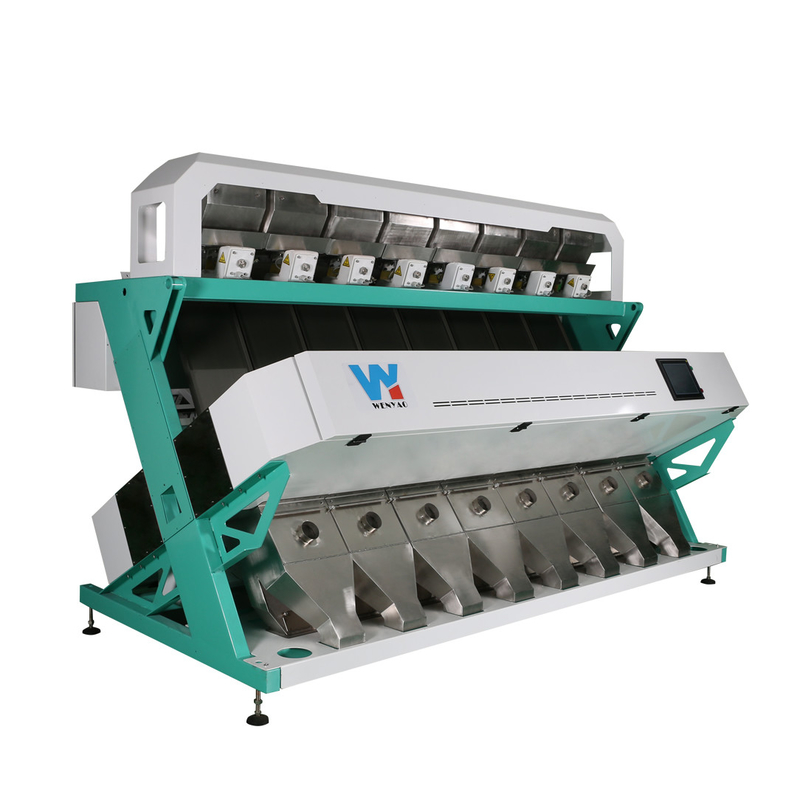

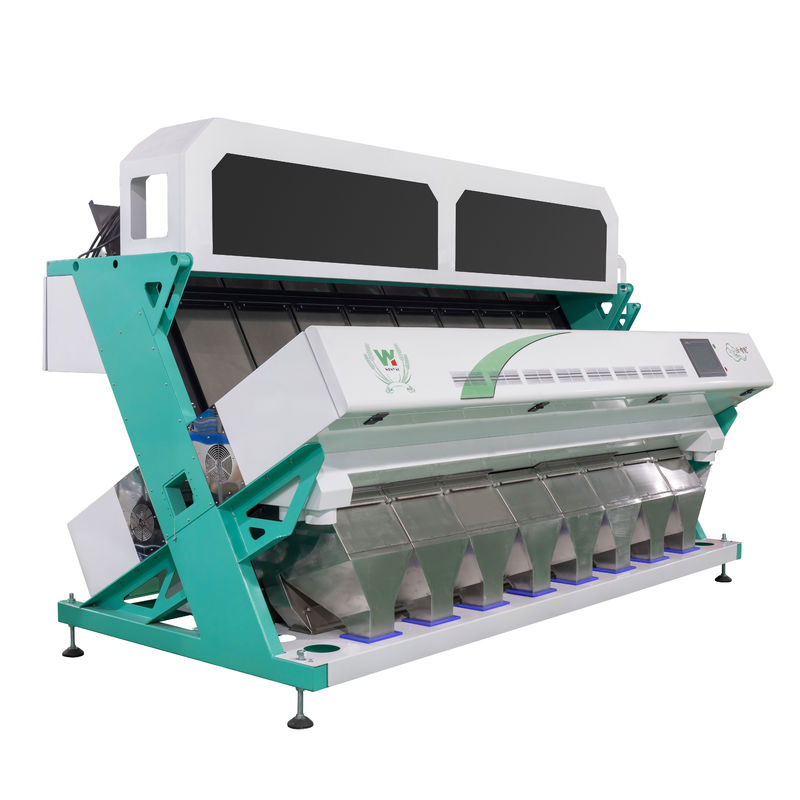

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand

grain sorting machine

grain color sorter machine

Grains Color Sorter 512 Channels

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS8-512

Contact Us

Request A Quote
Product Details
Color:
Whatever Color Or According To Customer Needs
Channels:
512
Sorting Accuracy(%):
≥99.99
Remote:
Wifi Remote Control
Sensor:
Toshiba
Camera:
RGB Camera
Certificate:
CE & ISO9001
Lamp Source:
LED Variable Light
Application:
Grain,rice Sorting
Hopper:
Stainless 304 Food Grade
Warranty:
2 Years
Type:
2022 Newest Machine
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):3.35*1.72*2.05M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

High Sorting Accuracy CCD Camera Grain Color Sorter Sesame Sorter Machine



Color Sorter Function:

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Grain color sorter working principle:



Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 0



What is CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.



Color Sorter Machine Working Flow

1. Raw Material are put into the machine from its feeding hopper on the top.

2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.



Technical Parameters:

MODEL WYCS8-512
Chutes/Channels 8/512
Throughput(t/h) 5-8t/h
Sorting Aaccuracy ≥99.99%
Power 5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <4M3/Min
Weight 1500kg
Diamension(L*W*H) 3025*1540*1852mm

Throughtput:Different impurity with different throughput.



Features:
►5400Pixel CCD image acquisition system.

►WIFI remote control system.

►Low temperature LED light source system.

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

Variable light background easy to operate.





More models parameters as following:

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 1



Examples of color sorting:



Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 2Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 3

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 4





How to get the correct size and suitable price of wenyao color sorter machine?


Step 1.Which kinds of the material do you want to sort ?


Step 2.How much input capacity for the raw materials per hour?


Step 3.In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 5

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 6

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 7



Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 8

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 9

Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 10



Factory Sale High Technology Grains Color Sorter For Grains Industry With World Brand 11

Product Application:

Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili,
Soybean,Red bean, black bean,chickpea,lentil,others.

Tea leaf materials:

Such as:Black Tea,Green Tea,Herb Tea,Corn Flower

Vegetable and frut:

Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp

Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
