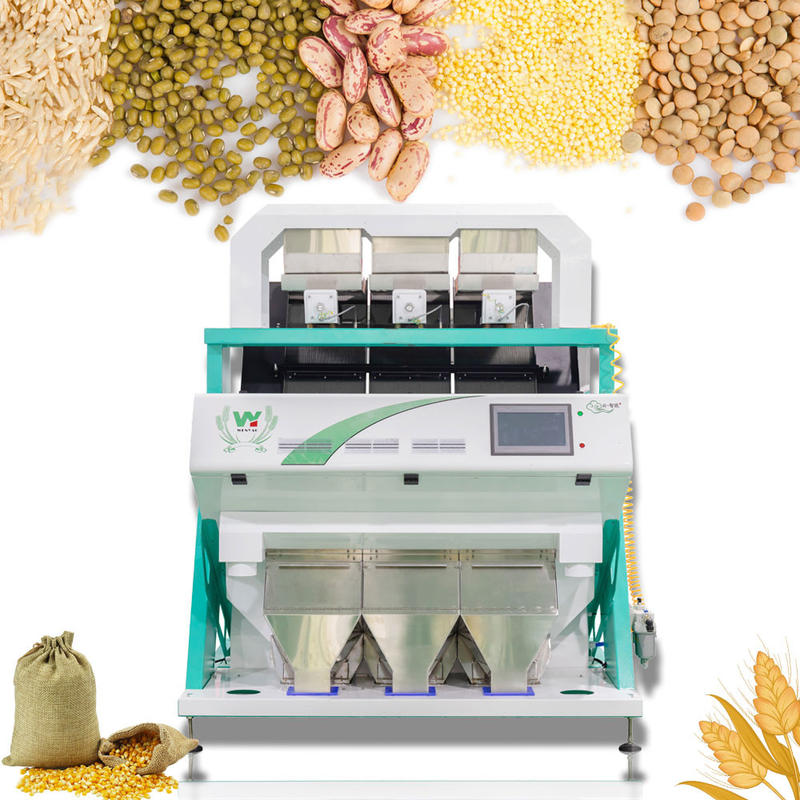

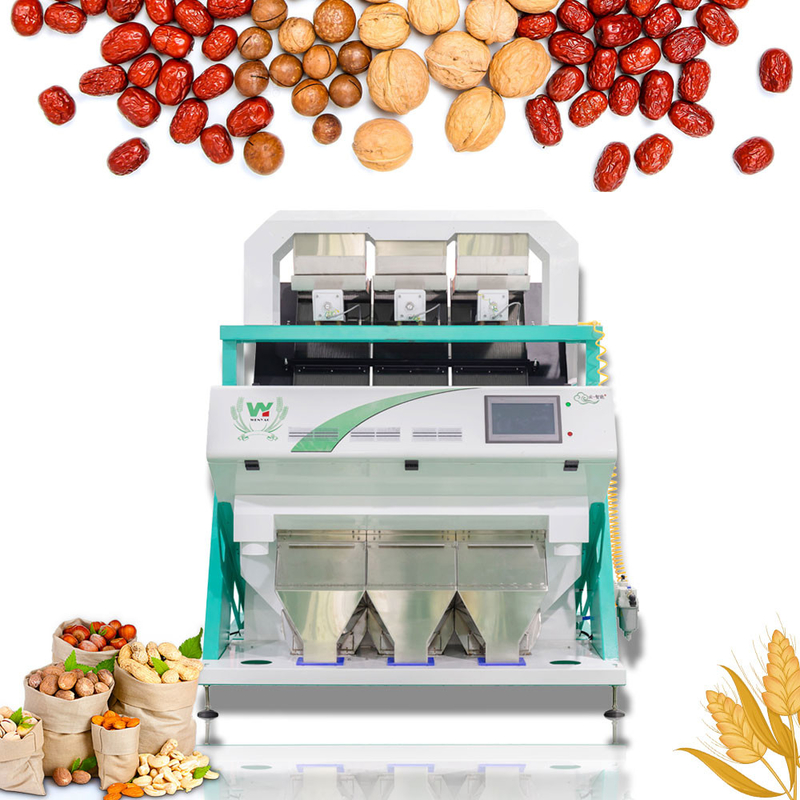

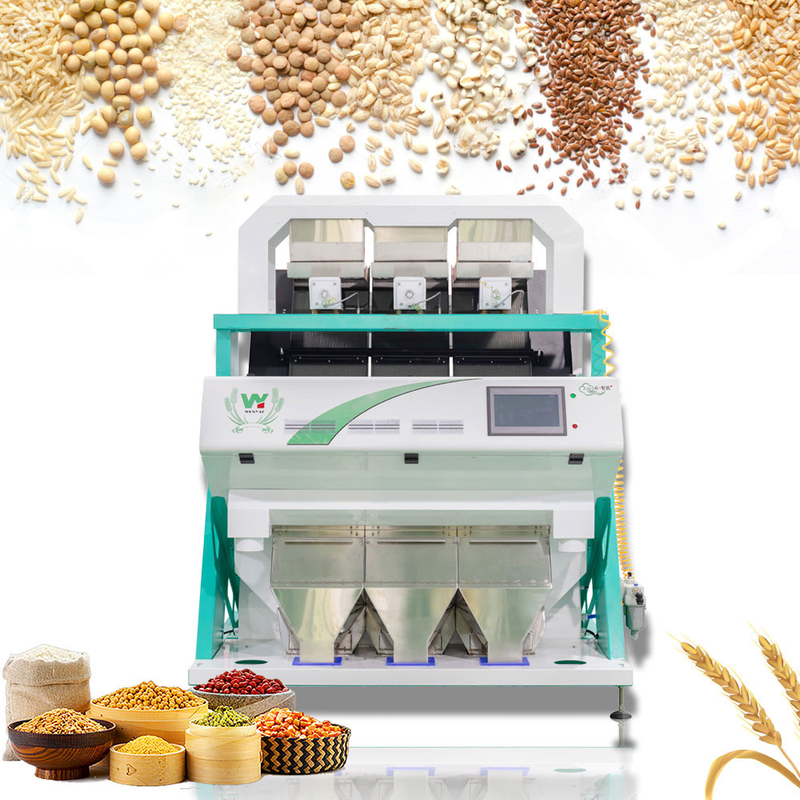

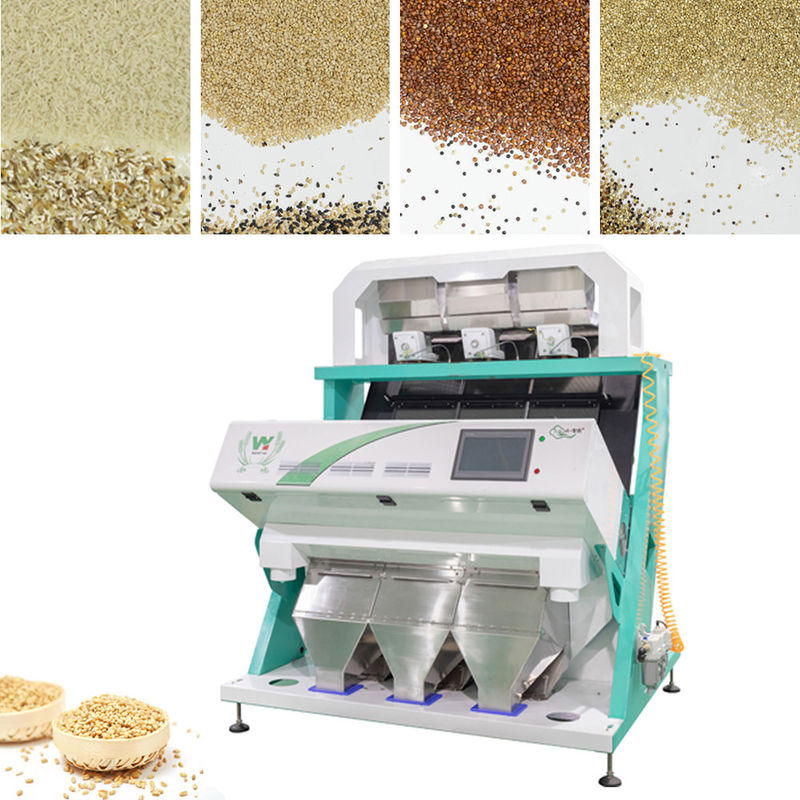

Intelligent Pumpkin Seeds Color Sorting Machine Sesame Watermelon Seed Color Sorter Selection Separator
Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL |
WYCS3-192 |
| Chutes/Channels |
3/192 |
| Throughput(t/h) |
1-4t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1.6kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<2.4M3/Min |
| Weight |
600kg |
| Diamension(L*W*H) |
1620*1535*1832mm
|
| Main Parts |
Parameters/ brand |
Parts Advantage |

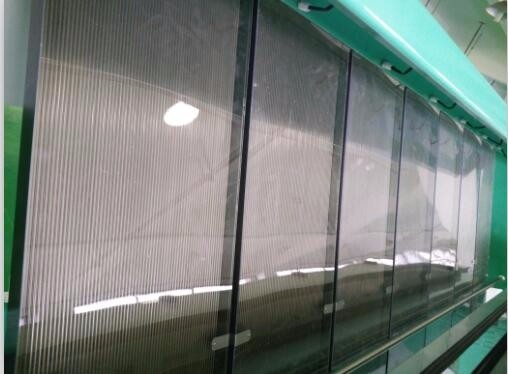

| Channels |
64*4=256 |
1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long. |
| Pixel of camera |
5400 |
1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years |
| CCD sensor |
Toshiba |
High Sensitivity and resolution warranty:2 years |

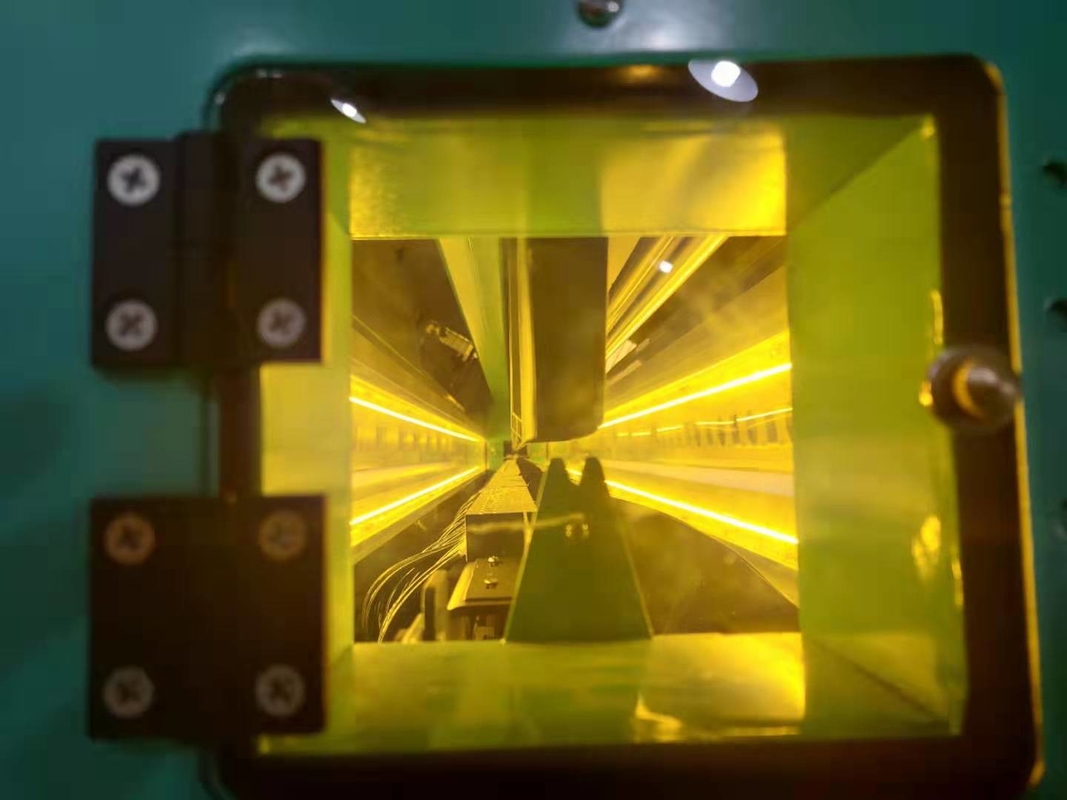

| light source |
LED Lamps |
1.Luminous evenly 2.The service life is long 3.The light is not weak for long time |
| Ejector |
Metal |
1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter |
YSC/CKD |
1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |

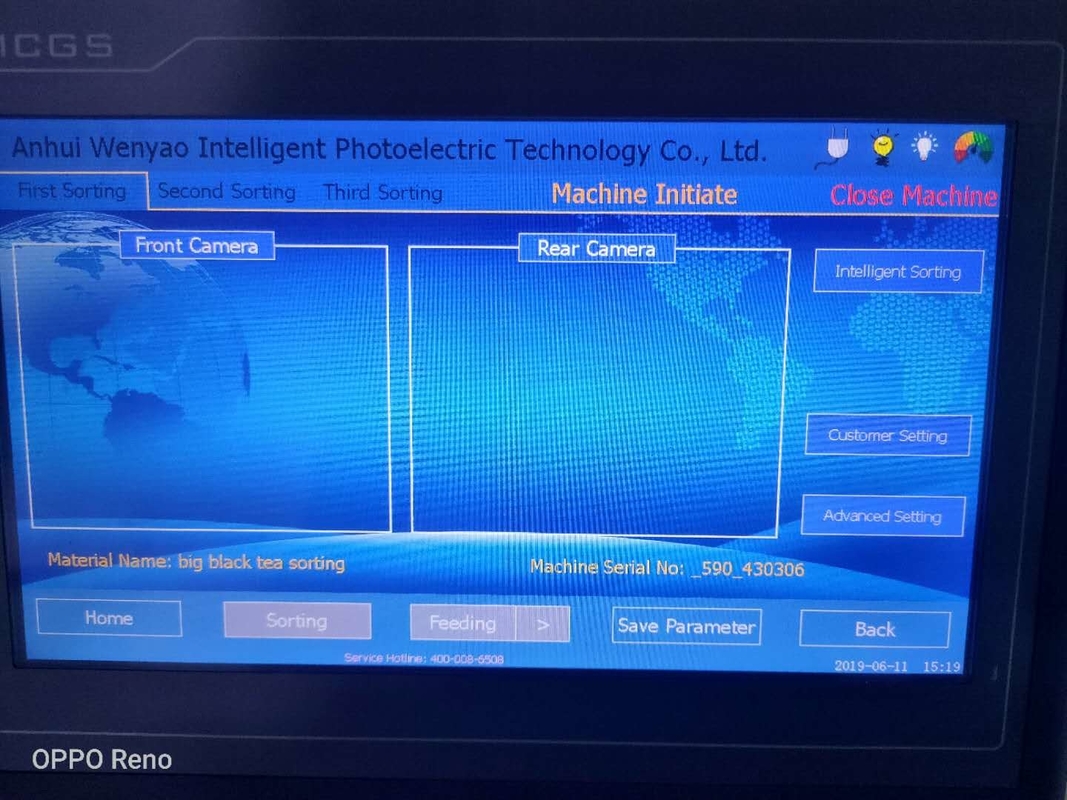

| Screen |
touch screen |
1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper |
304 stainless steel |
1.rust protection 2.wear-resisting,wearproof |
| Package |
Plywood Case |
1.Stable structure no deformation 2.Easy to transport |
Intelligent Pumpkin Seeds Color Sorting Machine Sesame Watermelon Seed Color Sorter Selection Separator
Features:
Super Intelligent Identification Technology
1. Automatically identify the characteristics of materials, match the optimal sorting plan, and reasonably realize the customer's expectations for sorting;
2. Provide customers with the best and most economical sorting scheme;
3. To further realize color selection adaptive operation, learning, decision-making and control, one-click start, intelligent sorting.
1. New LED light source system: adopts intelligent LED optical system design, intelligent light control flexibly switches the color of the backlight, and uses a condenser lens device to prevent LED astigmatism.
2. Feeding and conveying system: According to the characteristics of large, small, dry and wet ore particles, slow, fast and free-fall conveying methods are adopted to ensure uniform feeding and conveying.

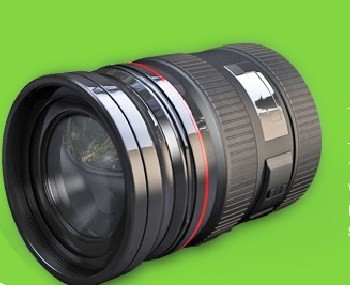

3. Image acquisition system: Adopt high-definition full-color remote special lens to realize the comprehensive acquisition of material (RGB) red, green, and blue color information, and deeply identify small and fine impurities that cannot be selected by ordinary color sorters.

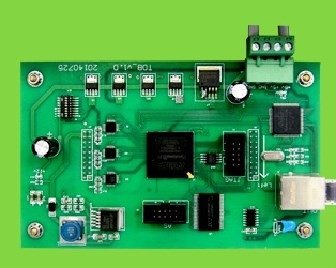

4. Image processing system: full-color line scanning technology, DSP+FPGA cutting-edge processing technology, CCD up to 5400 points X10K scanning capture, color and shape combined with multiple modes of intelligent and complex algorithms, providing "color selection + shape selection + wear" for different ore materials.
5. High-frequency solenoid valve: the use of special solenoid valve for ore, high frequency, accurate color selection, high efficiency and energy saving, intelligent selection for different sizes of ore particles.
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Delivery Detail:
Within 15 - 20 days after received deposit.
Before sales services
We will help you know ahout our color sorter,meets your special requirement according to actual condition.
After sales services
1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for one year(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent servicce for users.
Intelligent Pumpkin Seeds Color Sorting Machine Sesame Watermelon Seed Color Sorter Selection Separator
Packing and Delivery:
FAQ
1.Q:How long about the guarantee period?
One year. And we will supply lifelong software upgrade services for our customers.
2.Q:Will you accept L/C as payment?
L/C ,T/T is OK.
3.Q:How about engineers service oversea?
Our engineers could go abroad services when necessary.
4.How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
5.Q:How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
6.Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
7. Which machine will work together with our color sorter which you can supply?
We can provide Air compressor, air tank, air filters, Cleaning brushes, etc.
