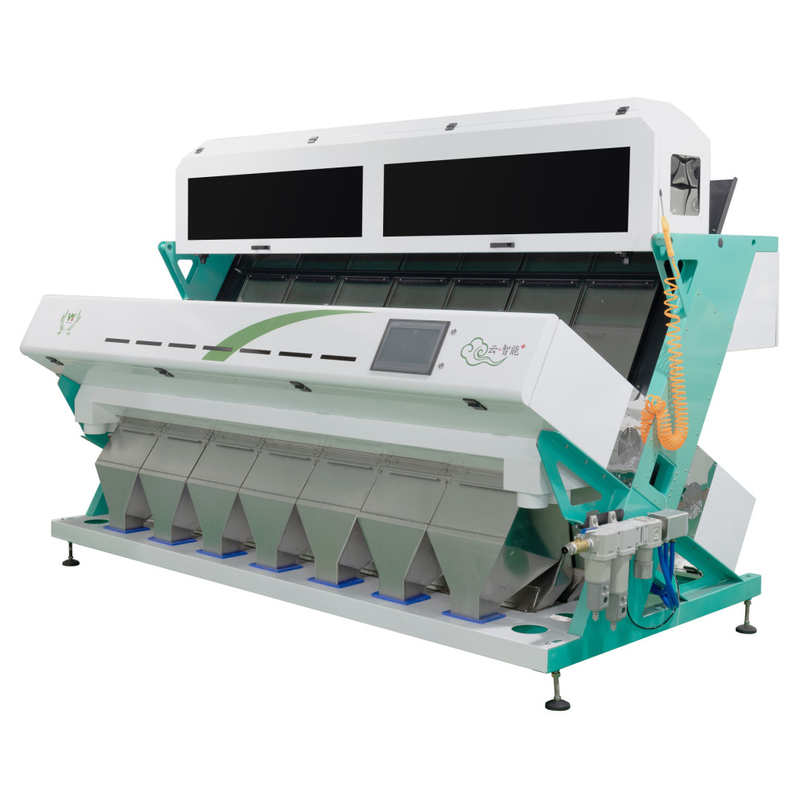

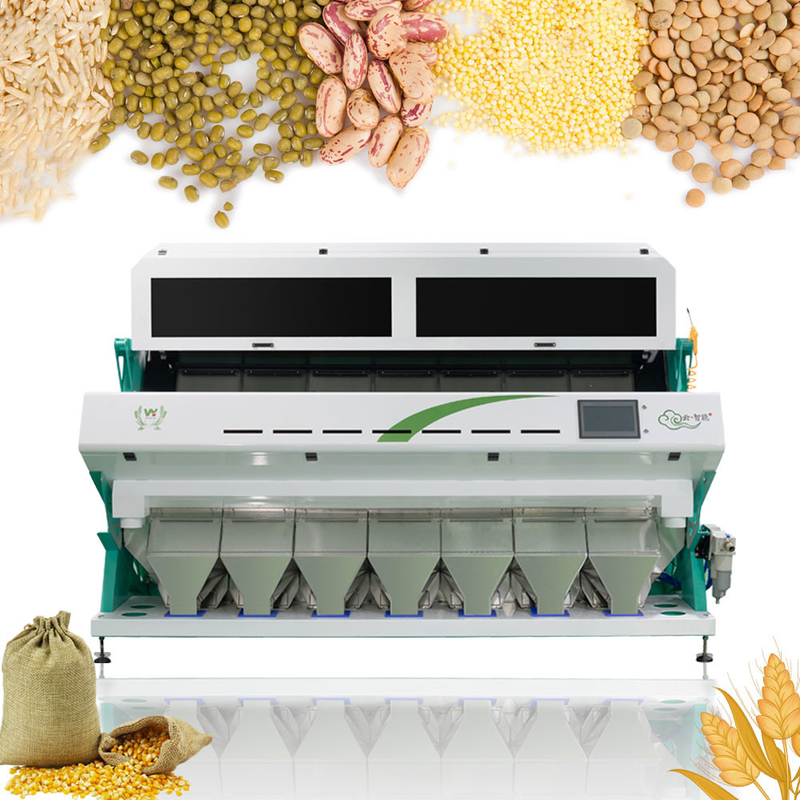

High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil

High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil

bean color sorter

bean sorting machine

Multifunction Garlic Color Separator

Place of Origin:

Anhui China

Brand Name:

WENYAO

Certification:

ISO & CE

Model Number:

WYCS7-448

Contact Us

Request A Quote
Product Details
Voltage:
220V/50Hz/60Hz
Accuracy(%):
99.99%
Condition:
2022 New
Weight:
1350 Kg
Capacity:
3-10 T/h
Chip:
America FPGA Process Chip
Filter:
CKD &S MC
Lens:
Japan Nikon Lens
Air Pressure:
0.6-0.8Mpa
CCD Sensor:
Japan Toshiba
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood case package:2100*1700*2100mm
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
235Pieces Per Month
Product Description

High Accuracy CCD Optical Multifunction Color Separator Popular in Brazil

1. WENYAO  Colour Sorter Machine Working Pricinple:

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber.







High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil 0



2. Technical Parameters:



MODEL WYCS7-448
Chutes/Channels 7 / 448
Throughput(T/h) 3-10t/h
Sorting Aaccuracy ≥99.99%
Power 3.9kw
Power Voltage 180-240V/50Hz/60Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.8M3/Min
Weight 1350kg
Diamension(L*W*H) 2905*1540*1852mm





3. Advantage:

A: Free direct the installation and operation of the equipments and train operators for customer.
B: Safe and reliable, efficient and energy saving, easy operating.
C: In time with English operating instruction program.

D: Timely, professionally



4. Installation and commissioning of color sorter machine:



The optical color sorter must be installed at an overall level. It should be installed in a place without vibration to avoid vibration and reduce the accuracy of color selection. Do not install the color sorter in a place where it can be directly exposed to sunlight, as it will affect its photoelectric system to collect signals. Do not install the color sorter in a humid, hot, dusty place. If possible, install it in a separate and isolated room, and install air conditioning maintenance. As for the color sorter commissioning, senior engineers generally need to work on site, because work experience and professional knowledge are required.





5. Examples of Color Sorting Examples:



High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil 1



High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil 2



High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil 3



High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil 4



6.How to get the correct size and suitable price of wenyao color sorter machine?


Step 1. Which kinds of the material do you want to sort ?


Step 2. How much input capacity for the raw materials per hour?


Step 3. In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)


Delivery Detail:
Within 15 - 20 days after received deposit.



High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil 5



High Accuracy CCD Optical Multifunction Garlic Color Separator Popular In Brazil 6

7.FAQ

1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.

2. How long about the guarantee period?two year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

4. Is oversea service available?
Yes, our engineers could go abroad when required.
