Place of Origin:
Anhui,China
Brand Name:
WENYAO

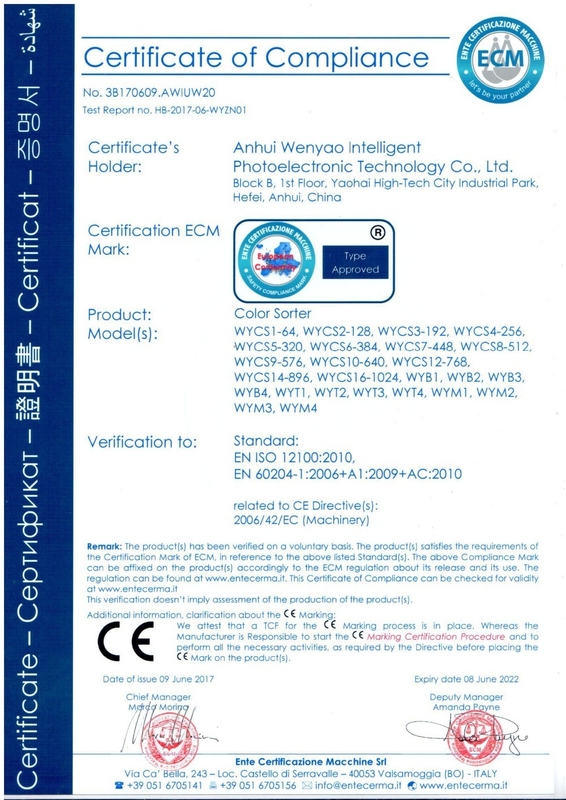

Certification:
CE,ISO 9001,SGS,TUV
Model Number:
WYCS10-640
Contact Us
Video

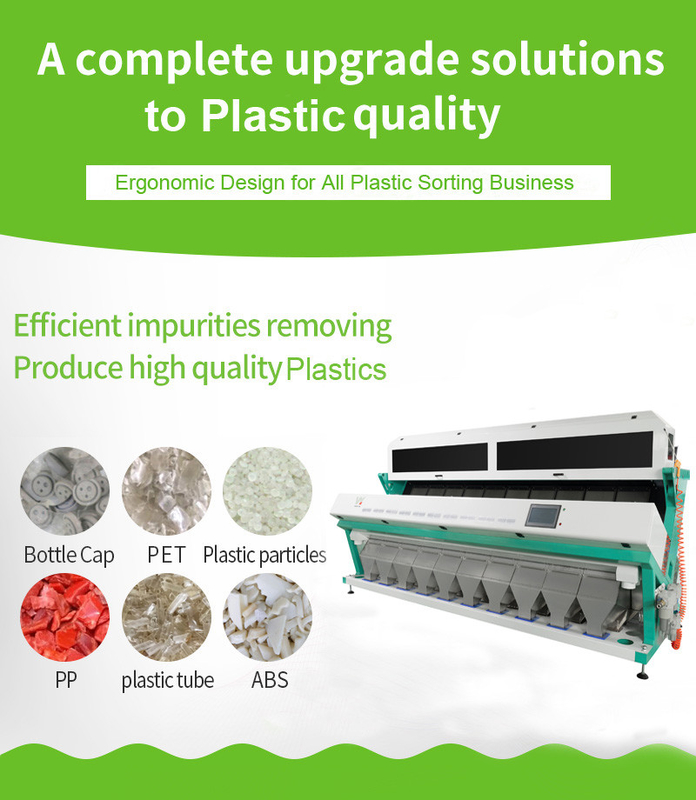

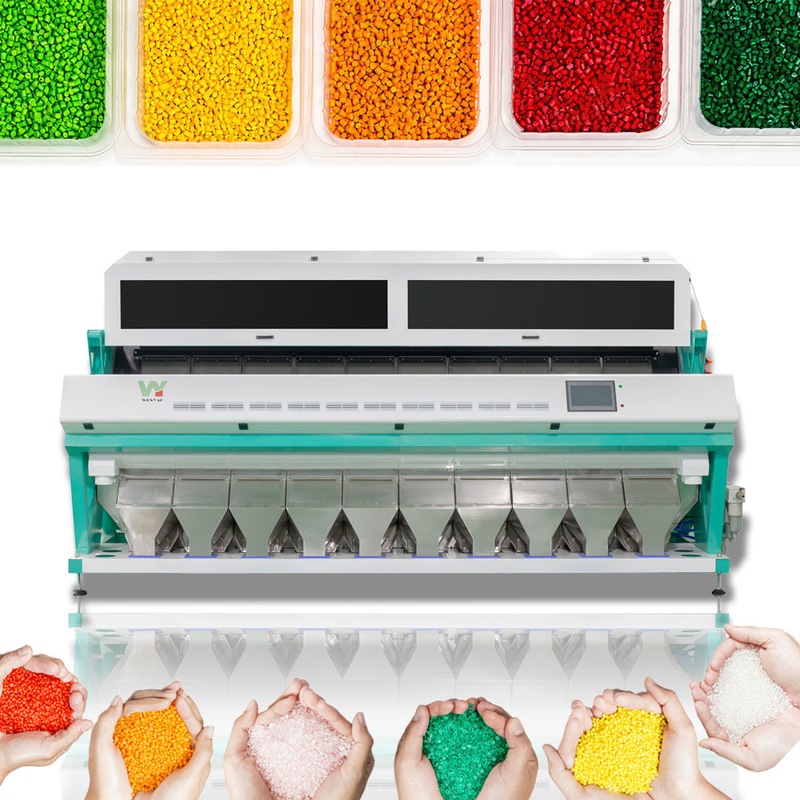

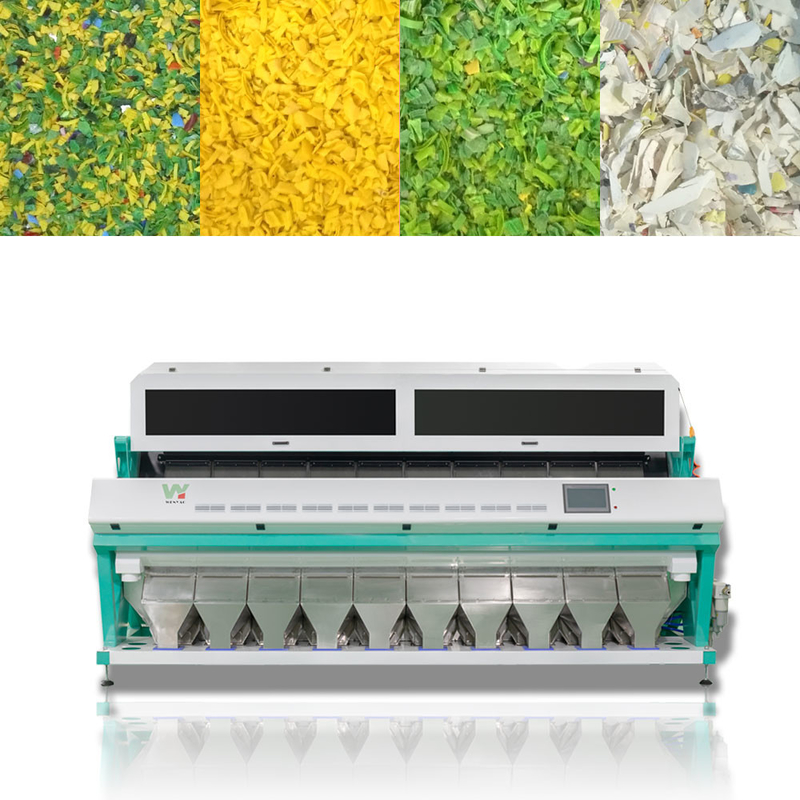

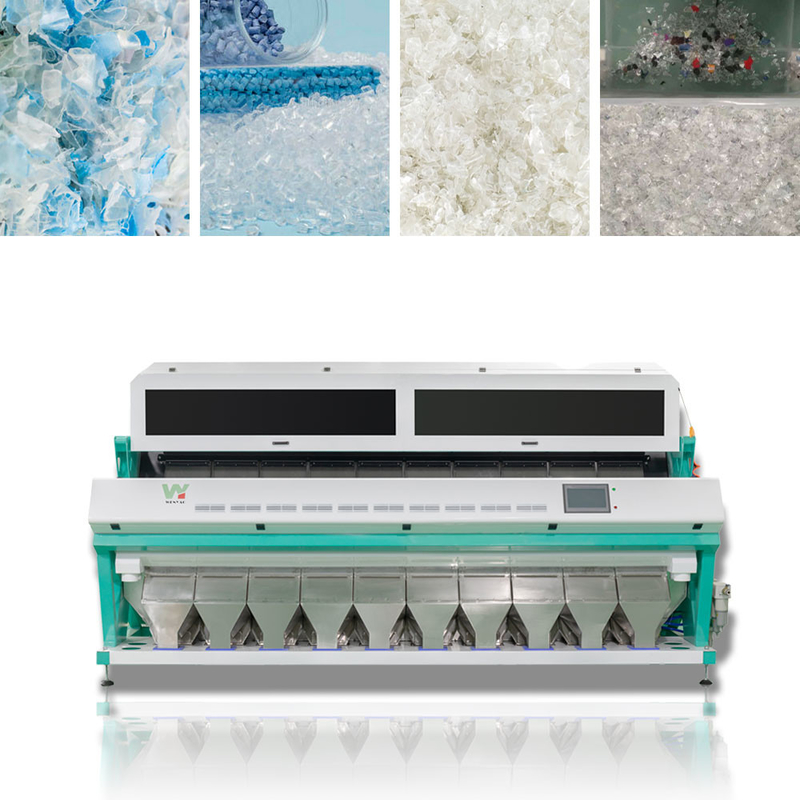

Recycled Mixed Plastic Flakes Multifunction Color Sorting Machine ISO9001 Approval

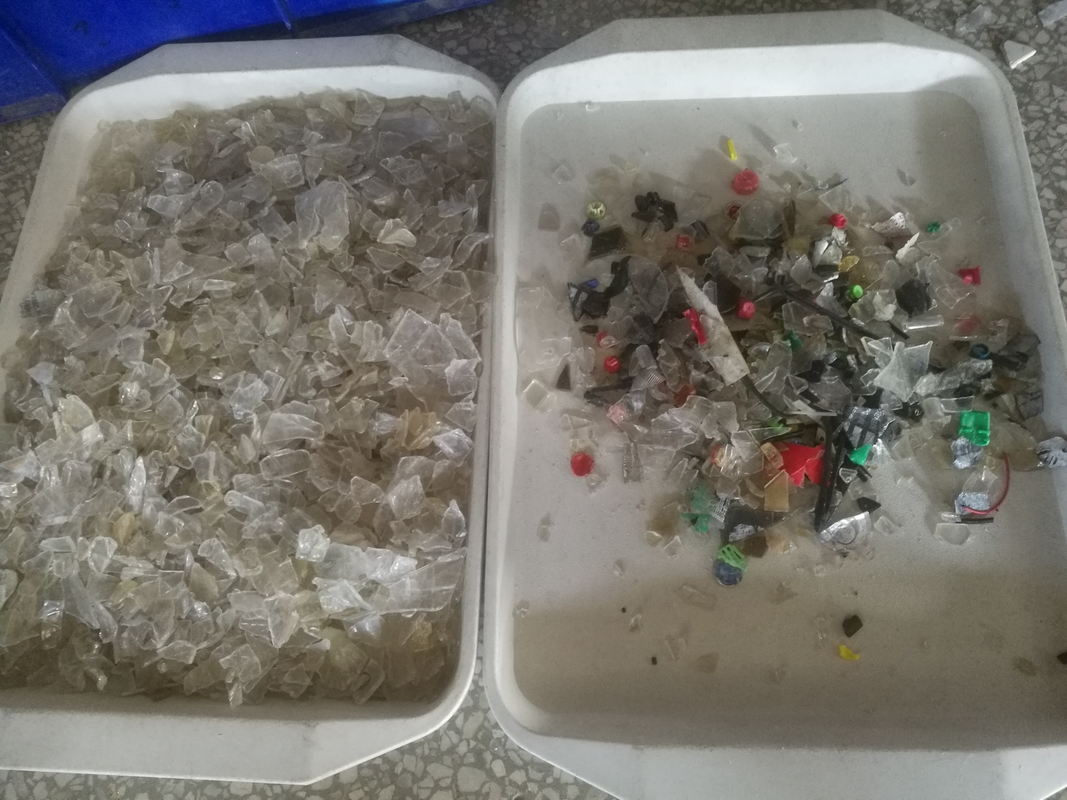

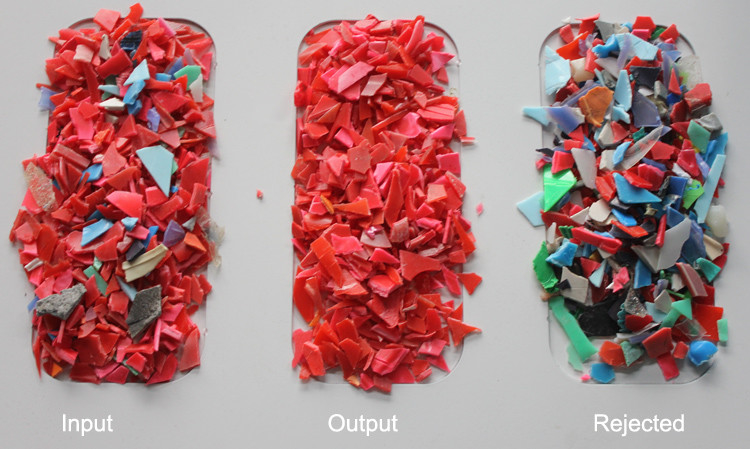

Sorting Performance
Technic Parameters
| MODEL | WYCS10-640 |
| Chutes(channels) | 10(640) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥12:1 |
| Output(T/h) | ≥4 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 6.5 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 2600-5000 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 3750*1540*1852 |
| Weight(kgs) | 1800 |
| Package | Plywood case |
| Package Size mm | 3750*1590*1852 |
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
From Customer's Site :
Color Sorter characteristic:
1.Automatic computing and intelligent identification with high speed camera.
2.5400Pixel CCD image acquisition system with high speed chip.
3.Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
4.Self design high frequency ejectors,It means high speed and accurate sorting performance.
5.Low temperature LED light source system,Cooling system to make the LED lamp more long life.
6.WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
7.Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
.
What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
The cashew sorting technology is according to the color differences of cashew materials, using a high-resolution CCD optical sensor to separate black,red,broken,small and moldy etc.Sorting machines improve product quality and add social benefits.
1. With Over 14 years experiences.focus on sorter machine.
2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.
3.We have service station, cooperate reseller in more than 100 countries.
4.Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
