Optical Multifunctional CCD Rice Sorter High Precision

Optical Multifunctional CCD Rice Sorter High Precision

Rice Sorter High Precision

Customized Rice Color Sorting Machine

Multifunctional Rice Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE ISO9001

Model Number:

WYCS1-32

Contact Us

Request A Quote
Product Details
Warranty:
2 Years
Function:
Removing The Impurities From The Mixed Rice
Sorting Accuracy(%):
≥99.00
Condition:
New
Color:
Customized Available
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Application:
Rice Processing Equipment
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiated
Packaging Details
PE Bag with Fumigation Free Plywood case package Packing
Delivery Time
3-5 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

High Precision Optical Multifunctional CCD Rice Color Sorting Machine For Rice Mill



Unsorted rice in the feedhopper on the top of mahince under the vibrating of vibration will be disbutrited and sliding along the chute into the zone of observation with nir sensor and background plate.Under the effect of light source, CCD sensor receives compound lights reflect from the mixed rice to be sorted.The light intensity and color changes,make the system occur signal and drive solenoid valve to reject the discolor rice to defect chamber and good rice continue to fall into the accept chamber.



Optical Multifunctional CCD Rice Sorter High Precision 0





























































































High Precision Optical Multifunctional CCD Rice Color Sorting Machine For Rice Mill



Technical Parameters:

MODEL WYCS1-64
Chutes/Channels 1-32
Throughput(t/h) 500 kg /H
Sorting Aaccuracy ≥99.99%
Power 500w
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption 200-600 L/Min
Weight 180kg

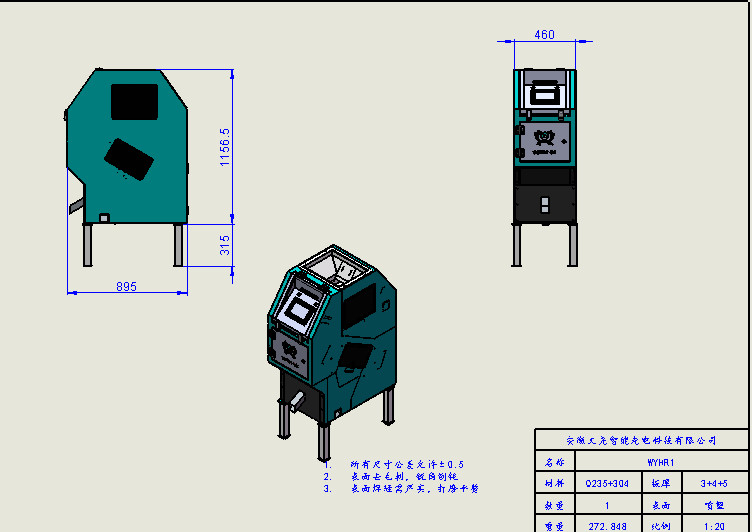

Dimension(L*W*H) 460*895*1356mm




Examples of color sorting:



Optical Multifunctional CCD Rice Sorter High Precision 1







































Optical Multifunctional CCD Rice Sorter High Precision 2

Optical Multifunctional CCD Rice Sorter High Precision 3Optical Multifunctional CCD Rice Sorter High Precision 4Optical Multifunctional CCD Rice Sorter High Precision 5



FAQ:

1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2. How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. what about the after sales service?

Yes, By videos or by remote control or local service or engineers could go abroad when required.



Product Features

*Wide-spectrum, co-focusing system, Toshiba HD imaging capture, accurately position the aim and Intelligent analyze and high speed processing.

*Multi-function,multi-purpose,widely used for rice,millet,sesame etc.

*Espcially good at identifying and sorting light yellow, tiny spot, micro color difference etc.

*Cold LED light source, long life span and maintenance free.

*Combined with color sorting, shape sorting and size sorting.

*High and specification ensures high stability,with high sorting accuracy, small carry over and low energy consumption.

*Full color technology with wide spectrum, intelligent system, self-learning function, easy operation.

*Suitable for rice mill line of 15 model.

Optical Multifunctional CCD Rice Sorter High Precision 6
Optical Multifunctional CCD Rice Sorter High Precision 7
