4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent

4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent

4 Chutes Color Sorting Machine

Sunflower Seeds Color Sorter

Fully Automatic Nuts Color Sorter

Place of Origin:

Anhui China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS4-256

Contact Us

Request A Quote
Product Details
Function:
Color Sorting
Accuracy(%):
99.99%
Condition:
2022 New
Warranty:
2 Years
Application:
CCD Nuts Color Sorter
Color:
Customized / Standard
After-sales Service Provided:
Engineers Overseas Are Available
Camera:
Japan Toshiba
Rejection Rate:
25:1
Air Pressure:
0.6-0.8 Mpa
Whole Power:
2.3KW
Voltage:
220V 50Hz/60Hz
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood Box package Packing size(L*W*H):2.15*1.72*2.05M
Delivery Time
7-15 Working Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 PCS Per Month
Product Description

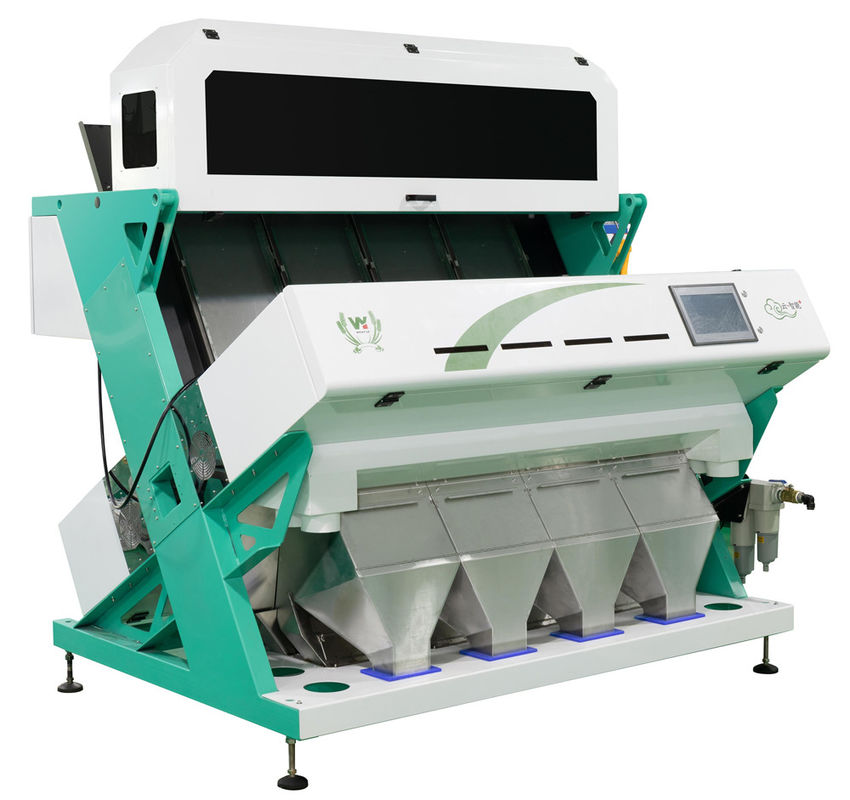

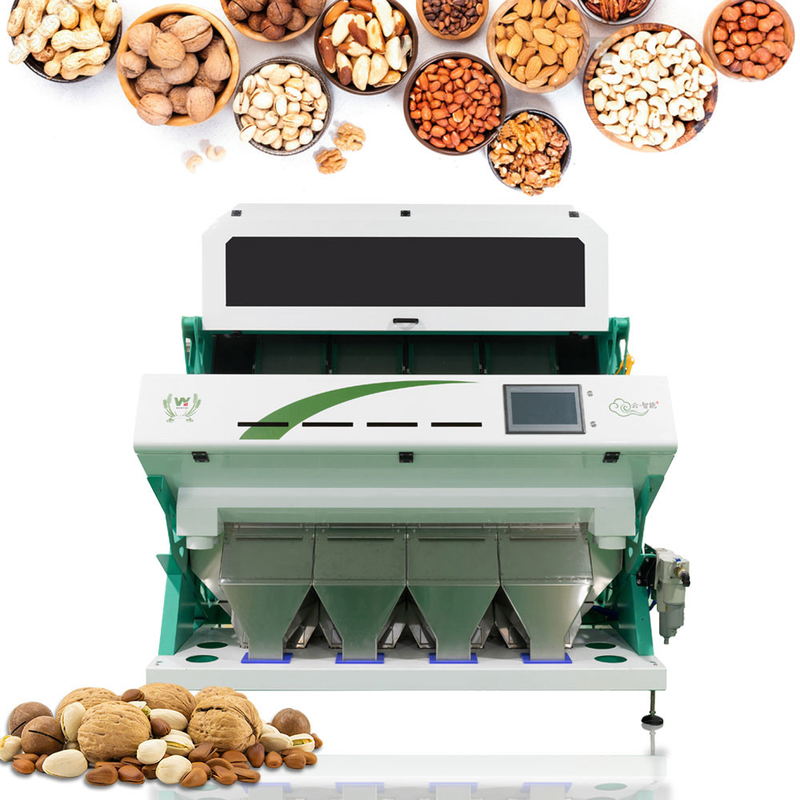

100% Fully Automatic Intelligent 4 Chutes Nuts Sunflower Seeds Color Sorter Machine



When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Technical Parameters:

MODEL WYCS4-256
Chutes/Channels 4/256
Throughput(t/h) 2-3t/h
Sorting Aaccuracy ≥99.99%
Power 2.3kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.4M3/Min
Weight 750kg
Diamension(L*W*H) 1855*1540*1852mm




Color Sorter Working Principle:



4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent 0



Color sorter Definition :



One of the primary uses of an optical color sorter is to find blemishes in products, and remove unsatisfactory items from the manufacturing process. These flaws may be merely superficial, or they might indicate that a product is defective or unsafe. In a factory that produces a specific size item, for example, a defect or size variation with one of the products could cause significant problems. An optical sorter can detect the defect, and remove the improperly sized part before it is released from the factory.



Examples of color sorting:



4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent 1



4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent 2



4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent 3



4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent 4



Maintenance and inspection
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.



Packing And Delivery :



4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent 5



4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent 6



4 Chutes Nuts Sunflower Seeds Color Sorter Machine Fully Automatic Intelligent 7
