Place of Origin:
Anhui,China
Brand Name:
WENYAO
Certification:
CE,ISO9001,SGS,TUV
Model Number:
WYCS3-192
Contact Us

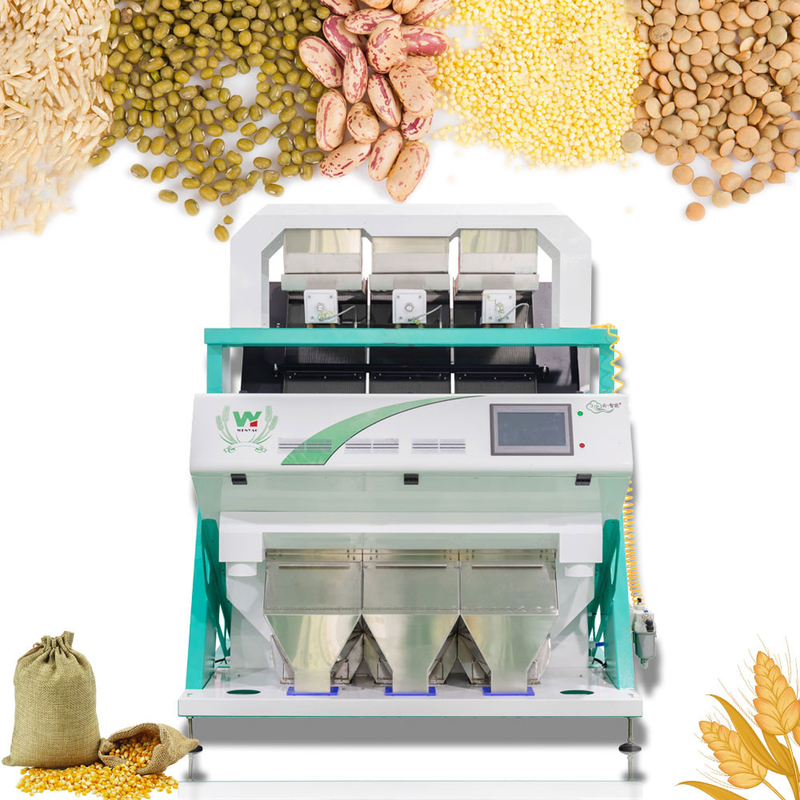

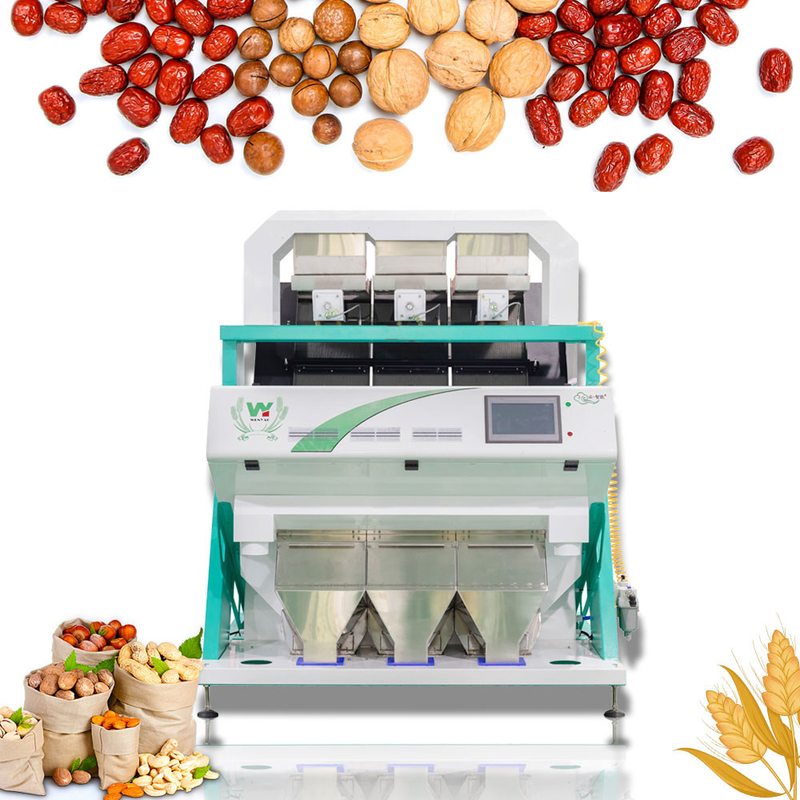

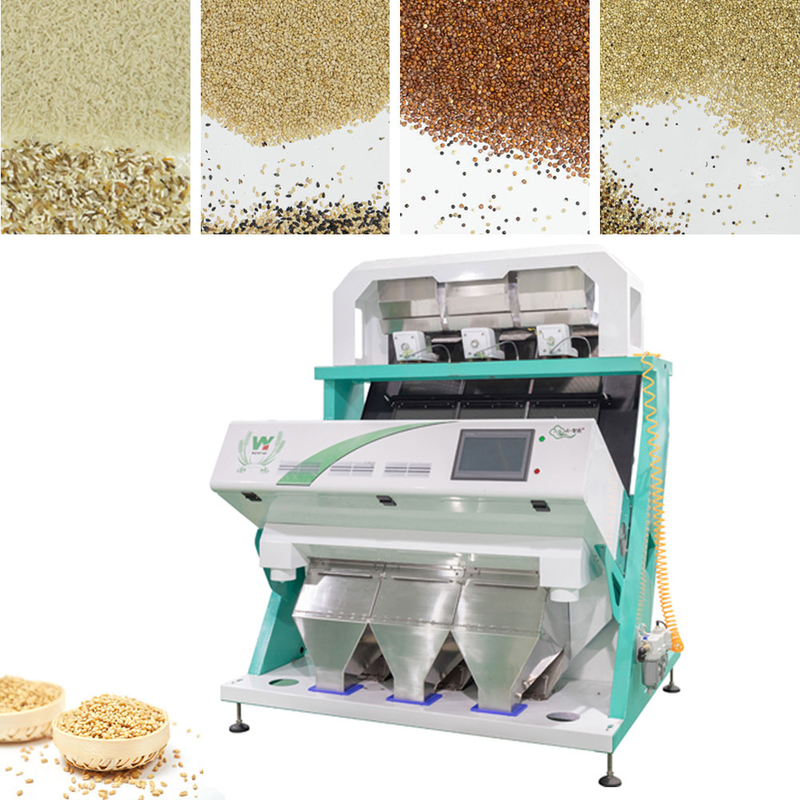

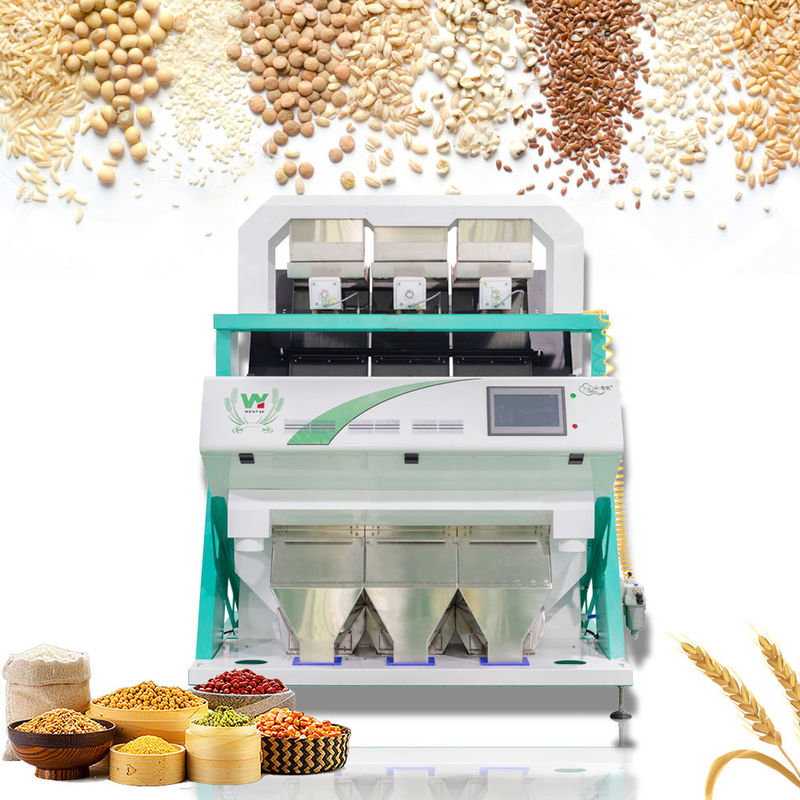

High Quality Low Price Fast Speed 3 Chutes Japonica Oat Rice Color Sorter Suitable For Farm
Unsorted rice in the feedhopper on the top of mahince under the vibrating of vibration will be disbutrited and sliding along the chute into the zone of observation with nir sensor and background plate.Under the effect of light source, CCD sensor receives compound lights reflect from the mixed rice to be sorted.The light intensity and color changes,make the system occur signal and drive solenoid valve to reject the discolor rice to defect chamber and good rice continue to fall into the accept chamber.
Good Life Start Here , Wenyao Color Sorter , Keep The Beautiful World For You !
Technical Parameters:
Model | WYCS3-192 |
Chute/Channel | 3/192 |
Throughput(t/h) | 1-4 Ton /H |
Sorting Aaccuracy | ≥99.99% |
Power | 1.6kw |
Power Voltage | 180-240V/50Hz |
Air Source Pressure | 0.6-0.8Mpa |
Air Consumption | <0.6M3/Min |
Weight | 600kg |
Diamension(L*W*H) | 1620*1535*1832mm |
Application Scope
Examples of color sorting:
WHY THE CLIENTS CHOOSE CHINA WENYAO
1. More than 10 years experiences.focus on sorter machine.The famour sorter machine factory.
2. After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and test the machine
3. Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
