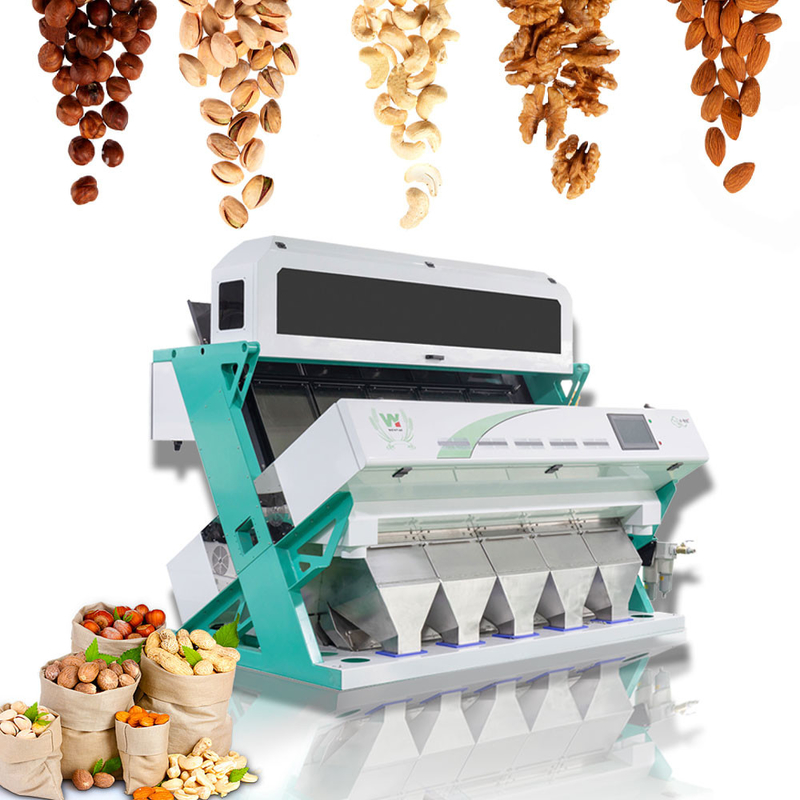

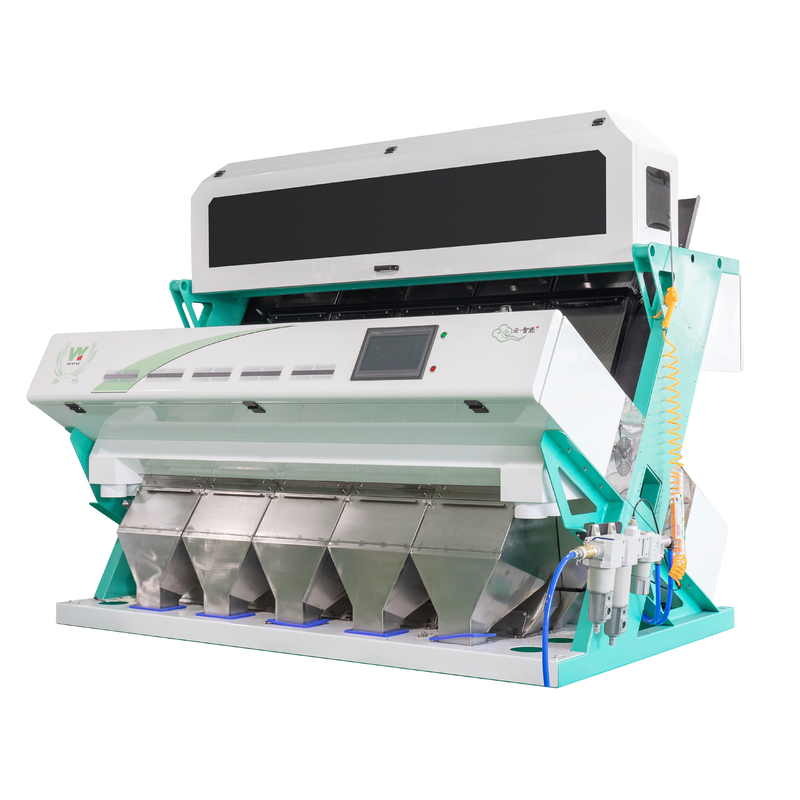

CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels

CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels

5 Chutes Peanut Sorter

320 Channels Peanut Sorter

CCD LED Nuts Color Sorter

Place of Origin:

Anhui China

Brand Name:

WENYAO Brand

Certification:

CE & ISO9001

Model Number:

WYCS5-320

Contact Us

Request A Quote
Product Details
Condition:
2022 New
MOQ:
1 Pcs
Accuracy(%):
≥99.99%
Chutes:
5/320
Voltage:
220V/50Hz/60Hz
CCD Sensor:
Japan Toshiba
Filter:
CKD & SMC
Capacity:
2-6 T/H
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood Cases Packing size(L*W*H):2550*1720*2050mm
Delivery Time
7-15 Working Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 PCS Per Month
Product Description

New Design CCD LED 5 Chutes 320 Channels Peeled Peanut Nuts Color Sorter Machine

Color Sorter Working Principle:



Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.

CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 0





2. Technical Parameters:



MODEL WYCS5-320
Chutes/Channels 5 / 320
Throughput(kg/h)2-6t 2-6t/h
Sorting Aaccuracy ≥99.99%
Power 2.9kw
Power Voltage 240V/50Hz or Customized
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.8M3/Min
Weight 900kg
Diamension(L*W*H) 2244*1540*1852mm




3.What is color sorter?

Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.



The cashew sorting technology is according to the color differences of cashew materials, using a high-resolution CCD optical sensor to separate black,red,broken,small and moldy etc.Sorting machines improve product quality and add social benefits.



1. With Over 14 years experiences.focus on sorter machine.

2. After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.

3. We have service station, cooperate reseller in more than 100 countries.

4. Quality assurance of raw materials: The raw materials we purchase are certified qualified products.



5. Quality process assurance: We pass ISO quality management system, each process of production are under strictly standard.
6System test: Our technical engineers check the product performance, to ensure that the factory products in full compliance with customer requirements



4. Examples of Color Sorting Examples:



CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 1



CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 2



CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 3



CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 4



How can a color sorter benefit your business?



  • Multi-Functional

This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.

  • High Efficiency

Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.

6. Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need





5. Real Photo of WYCS5-320 in customer site:



CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 5



CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 6



CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 7



6.Our After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.


7.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.

CCD LED Peeled Peanut Nuts Color Sorter 5 Chutes 320 Channels 8
