Place of Origin:
Anhui China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS6-384
Contact Us
Video
Video
Video

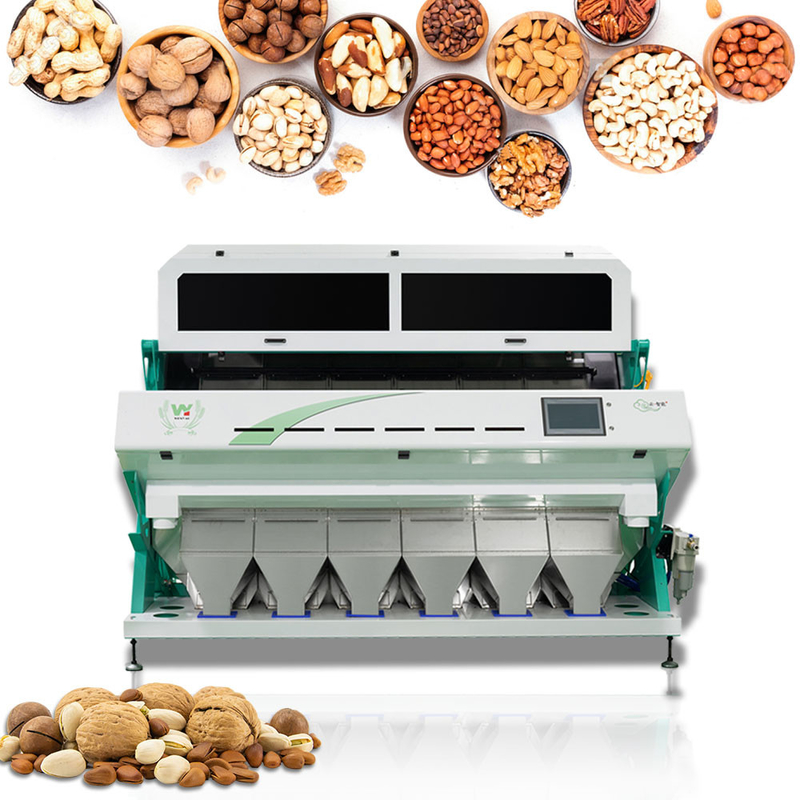

Professional Factory High Quality Pumpkin Kernels Nuts Color Sorter Machine
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
| Main Parts | Parameters/ brand | Parts Advantage and warranty |
| Channels | 64*6=384 | 1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long. |
| Pixel of camera | 5400 | 1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years |
| CCD sensor | Toshiba | High Sensitivity and resolution warranty:2 years |
| Light source | LED Lamps | 1.Luminous evenly 2.The service life is long 3.The light is not weak for long time |
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | SMC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
Technical Parameters:
| MODEL | WYCS6-384 |
| Chutes/Channels | 6/384 |
| Throughput(t/h) | 2.5-8t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.1kw |
| Power Voltage | 180-240V/50Hz/60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <3.2M3/Min |
| Weight | 1100kg |
| Diamension(L*W*H) | 2595*1540*1852mm |
Applications as below :
Cereals:rice,millet,parboil rice,black rice,red rice,brown rice,thai rice,glutinous rice.
Grains:peanut, corn,sesame,oat.
Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
Industries:plastic,electronic component,industrial salt,quartz sand
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Color sorter work principle:
Working principle of CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
From Customer's Site :
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
