Place of Origin:
Hefei,China
Brand Name:
WENYAO
Certification:
CE,ISO9001,SGS
Model Number:
WYCS8-512
Contact Us

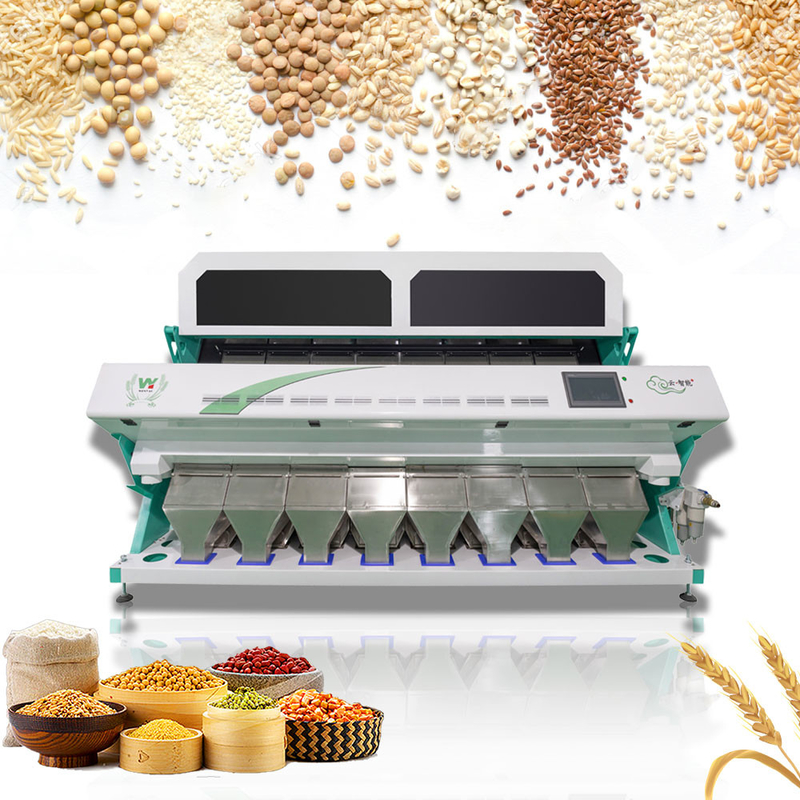

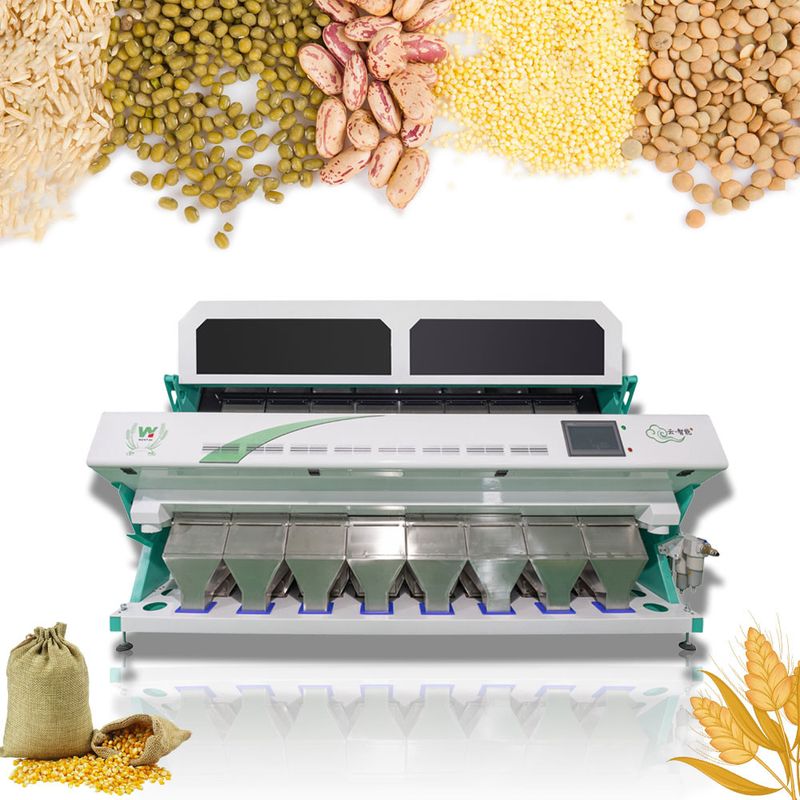

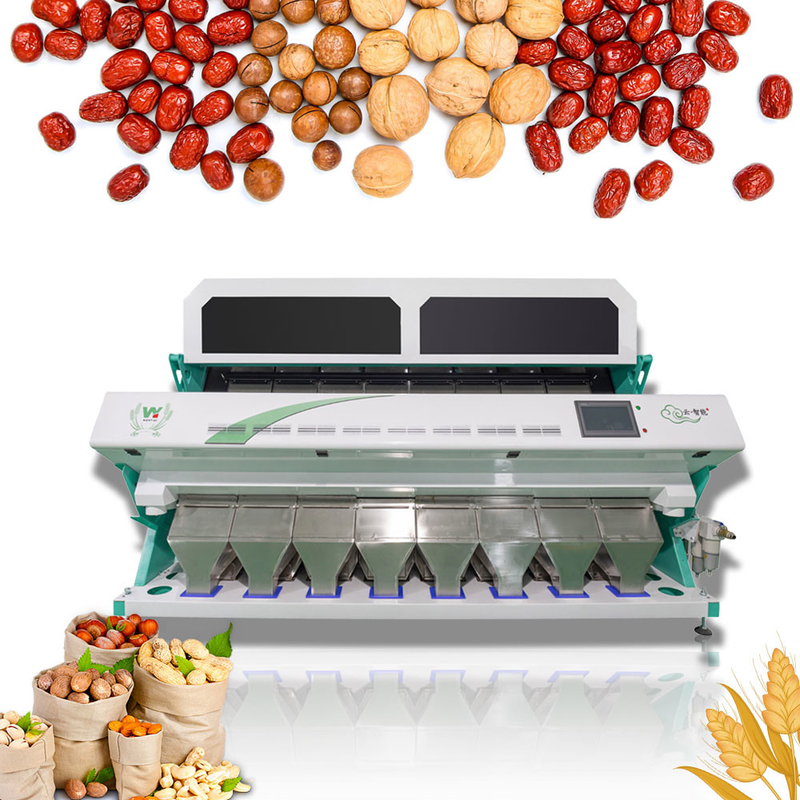

China Factory Wholesale Customized Automatic Soybean Kidney Lentil Beans Color Sortere
Kidney Beans color sorter working principle:
When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Chickpea Color Sorter Technical Parameters:
| Model | WYCS8-512 |
| Chute/Channel | 8/512 |
| Throughput(t/h) | 3.5-12 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 150kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Throughtput:Different impurity with different throughput.
Coffee bean color sorter features:
.
►Automatic computing and intelligent identification with 5400 pixels CCD camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
Advantage:
1. Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.
2. Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.
3. Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience
4. Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.
Examples of color sorting:
Customer site:
Delivery:
