Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
ISO9001 and CE
Model Number:
From WYCS1-32 to WYCS10-640
Contact Us
Video
Video

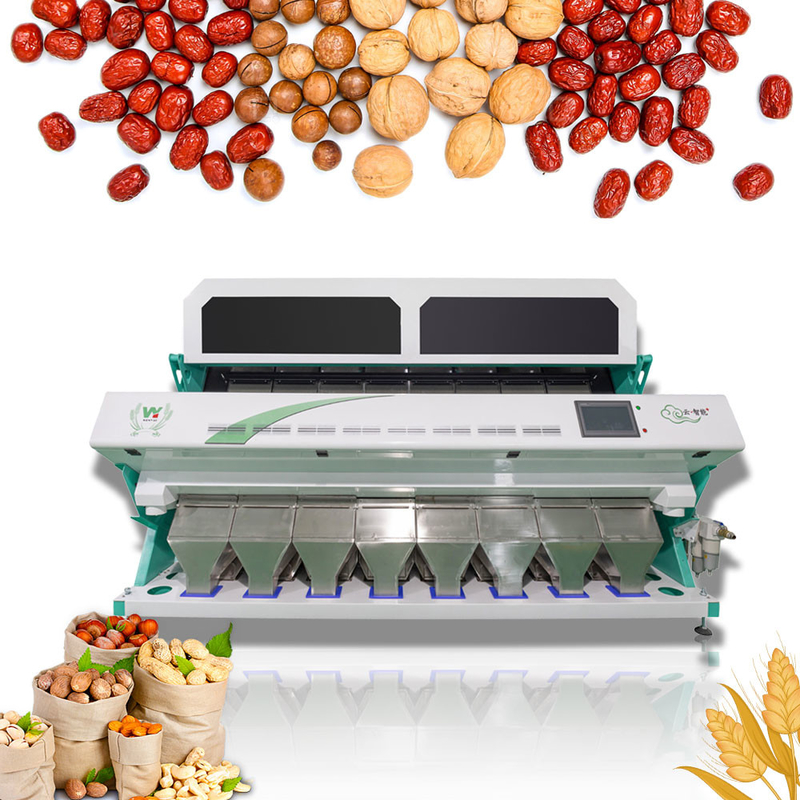

Artificial Cashew Color Sorter Walnut Color Sorter Peanut Color Sorter Machine
2. Technical Parameter:
Color Sorter Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
| Model | Output(t/h) | Sorting Accuracy(%) | Rejection Rate | Weight(kg) | Whole Power(KW) | Dimensions (L*W*H)mm |
Air Pressure(Mpa) |
| WYCS1-32 | 0.15-0.45 | ≥99.9 | ≥12:1 | 180 | 0.5 | 895*460*1157 | 0.6-0.8 |
| WYCS1-64 | 0.3-0.9 | ≥99.9 | ≥12:1 | 280 | 0.75 | 780*1527*1543 | 0.6-0.8 |
| WYCS2-128 | 0.6-2.5 | ≥99.9 | ≥12:1 | 450 | 1.1 | 1250*1535*1832 | 0.6-0.8 |
| WYCS3-192 | 1.0-4.0 | ≥99.9 | ≥12:1 | 600 | 1.6 | 1620*1535*1832 | 0.6-0.8 |
| WYCS4-256 | 1.4-5.0 | ≥99.9 | ≥12:1 | 750 | 2.3 | 1855*1540*1852 | 0.6-0.8 |
| WYCS5-320 | 2.0-6.0 | ≥99.9 | ≥12:1 | 900 | 2.9 | 2244*1540*1852 | 0.6-0.8 |
| WYCS6-384 | 2.5-8.0 | ≥99.9 | ≥12:1 | 1100 | 3.1 | 2595*1540*1852 | 0.6-0.8 |
| WYCS7-448 | 3.0-10.0 | ≥99.9 | ≥12:1 | 1350 | 3.9 | 2905*1540*1852 | 0.6-0.8 |
| WYCS8-512 | 3.5-12.0 | ≥99.9 | ≥12:1 | 1500 | 5 | 3025*1540*1852 | 0.6-0.8 |
| WYCS10-640 | 4.5-16.0 | ≥99.9 | ≥12:1 | 1800 | 6.5 | 3750*1540*1852 | 0.6-0.8 |
| WYCS12-768 | 5.5-20.0 | ≥99.9 | ≥12:1 | 2100 | 7 | 4430*1540*1852 | 0.6-0.8 |
3. Machine Features:
Features:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
4. Examples of Color Sorting Examples
FAQ
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer
should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local
