Mini Rice Color Sorting Machine By Optical CCD Camera

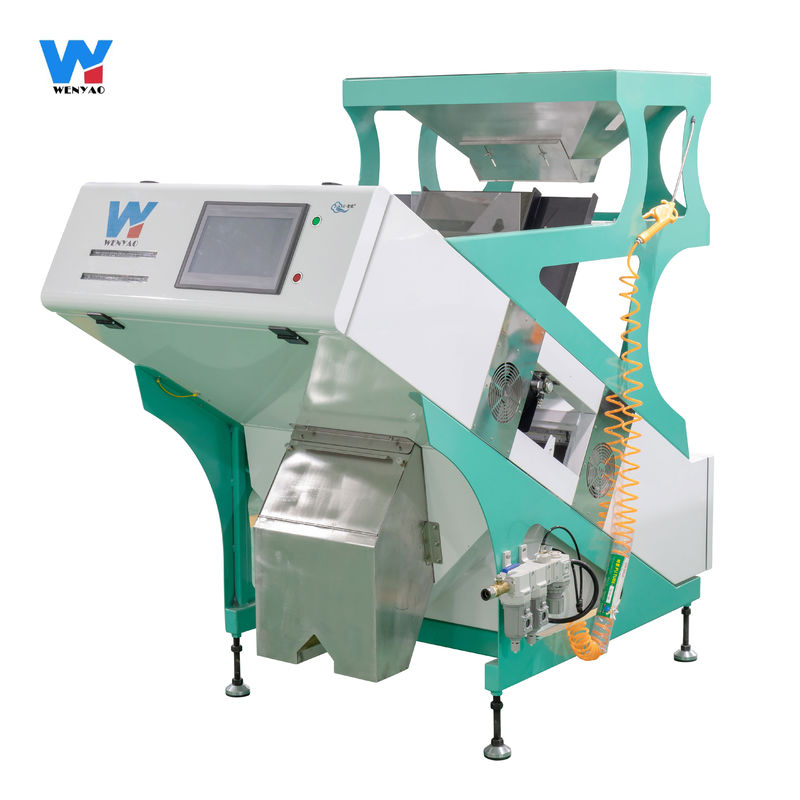

Mini Rice Color Sorting Machine By Optical CCD Camera

Optical Rice Color Sorting Machine

All LED Lamps Rice Sorter

LED Lamps Rice Color Sorting Machine

Place of Origin:

Anhui,China

Brand Name:

WENYAO

Certification:

CE,ISO9001,TUV,SGS

Model Number:

WYCS1-64

Contact Us

Request A Quote
Product Details
Produnct Name:
Rice Color Sorting Machine
Capacity:
300-800kg/h
Core Component:
PLC,camera,ejector
Hopper:
Stainless Stell 304
Light Source:
All LED Lamps
Core Selling Point:
Top Accuracy,Easy To Operate
Warranty:
2 Years
After-sales Service Provided:
WIFI Remote Support
Marketing Type:
2022 New Product
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package with PE bag wrapped Packing size(L*W*H):0.63x1.05x1.49M
Delivery Time
3-5 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

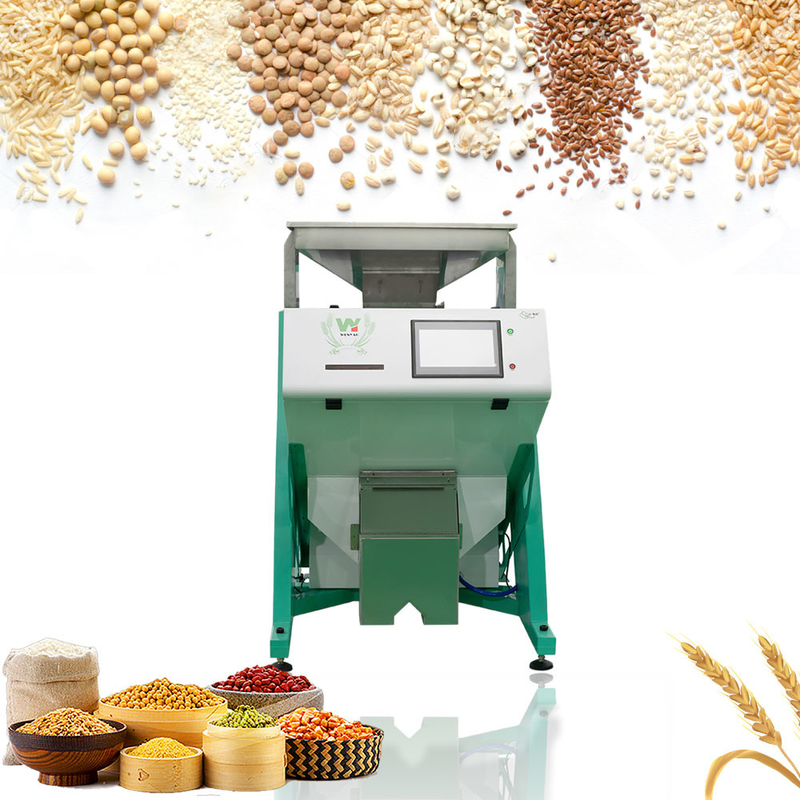

Mini Rice Color Sorting Machine with Removing Small Stone Glass by Optical CCD Camera



Wenyao Color Sorter Working Principle :

Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .

Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.

Mini Rice Color Sorting Machine By Optical CCD Camera 0







Mini Rice Color Sorting Machine with Removing Small Stone Glass by Optical CCD Camera

Technical Parameters:

MODEL WYCS1-64
Chutes/Channels 1/64
Throughput(t/h) 500-800kg/h
Sorting Aaccuracy ≥99.99%
Power 0.75kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption 0.2-0.6M3/Min
Weight 255kg
Diamension(L*W*H) 780*1527*1543mm



Mini Rice Color Sorting Machine with Removing Small Stone Glass by Optical CCD Camera

Highlight Features:

1. High reliability Wenyao color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.

2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (5400 pixels) and high accuracy lens to realize image acquisition, which can detect 0.04mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.

3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.

4. High quality ejector.Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.

5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.

6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease to operate.



Color sorter application:

Food materials:

Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.

Plastic materials:

Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.

Mineral materials:

Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.

Tea leaf materials:

Such as:Black Tea,Green Tea,Herb Tea,Corn Flower

Vegetable and fruits:

Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp



What you can choose from us?

1. Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.

2. Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.

3. Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience

4. Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.



Our service:

--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color according to customers’ favor.
--3)Any time customers has problem for using the machine can contact us, and also for large plant, we can send install video or technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.



Sorting effects :

Mini Rice Color Sorting Machine By Optical CCD Camera 1

Mini Rice Color Sorting Machine By Optical CCD Camera 2



Our Custom's site:

Mini Rice Color Sorting Machine By Optical CCD Camera 3



Mini Rice Color Sorting Machine By Optical CCD Camera 4







Mini Rice Color Sorting Machine By Optical CCD Camera 5

Mini Rice Color Sorting Machine By Optical CCD Camera 6

Mini Rice Color Sorting Machine By Optical CCD Camera 7
