Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us
Video
Video
Video

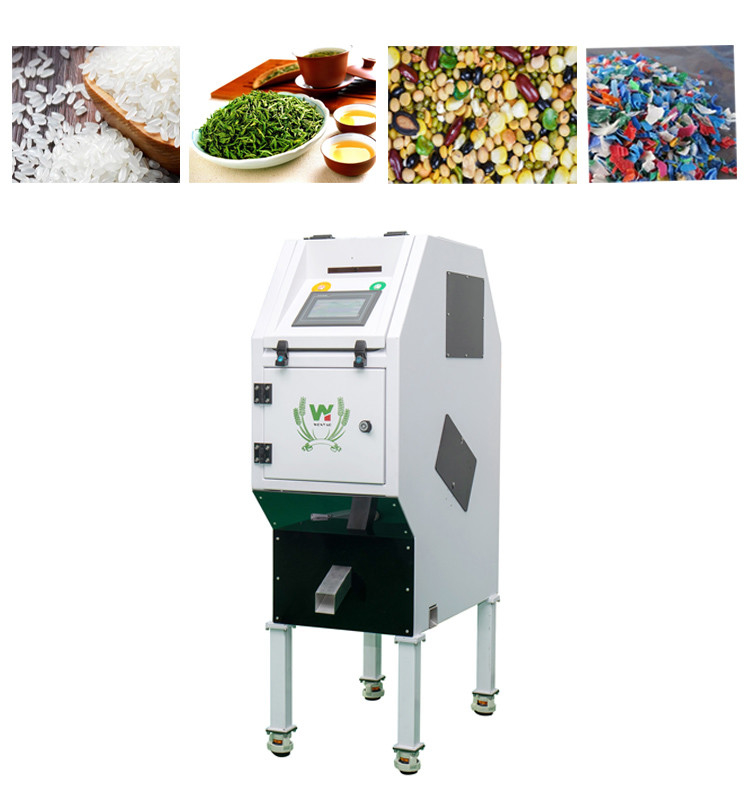

Automatic Intelligent Peanuts Color sorter machine
color sorter function
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
Color sorter Definition :
One of the primary uses of an optical color sorter is to find blemishes in products, and remove unsatisfactory items from the manufacturing process. These flaws may be merely superficial, or they might indicate that a product is defective or unsafe. In a factory that produces a specific size item, for example, a defect or size variation with one of the products could cause significant problems. An optical sorter can detect the defect, and remove the improperly sized part before it is released from the factory.
Color sorter Principle as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
Maintenance and inspection
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.
FAQ:
1. How will we get Quotations for Color Sorter?
Color Sorter separates materials by optoelectronic technology according to color difference.
Please indicate Input Materials name, and Production Throughput. It will be better if you could provide materials photos, and mark accepted colors and rejected colors.
2. How do we do Samples Test?
Welcome customers provide test materials or visit us, then we provide test report together with test video in time. If you could not send it, Please provide photos like these, Original Materials, Accepted Materials and Rejected Materials. Then we use stored materials for test, and advise you with test data.
3. What is your After-sale service?
We provides detailed technical assistance on how to install, After the machinery is installed, our service engineer comes to customer workshop, debugging well on-cite, and training customers staff free-charge.
4. Hong long is Warranty time?
We provide Two years warranty of whole machine.
5. Could you supply Accessories of Color Sorter?
Yes, also supply these spare devices like Air compressor, Air tank, Platform, Air filter, Elevator, UPS, Regulated Power supply. Quotation will be separate.
6. How many models do you have?
We supply Various Models to meet the needs of different production, from household to large scale production, We also accepts orders of customized models.
7. We are interested in your machine, How we have a meeting face by face?
our staff visit oversea clients regularly, Please make an appointment in advance with us. In additional, if you visit our office and workshop, please take your materials sample together and let us test it in our workshop.
Why choose US?
1. Over 15years experiences focus on color sorter. We have the strength give better service and price to you.
2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. We can meet your requirements on testing, installation and after sales service.
3. OEM/ODM is Supported: We have a strong R&G team. We can research and development suitable color sorter for you.
4. Quality Process Assurance: We pass CE, RoHS and ISO quality management system, each process of production are under strictly standard.
5. Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.
Packing And Delivery :
