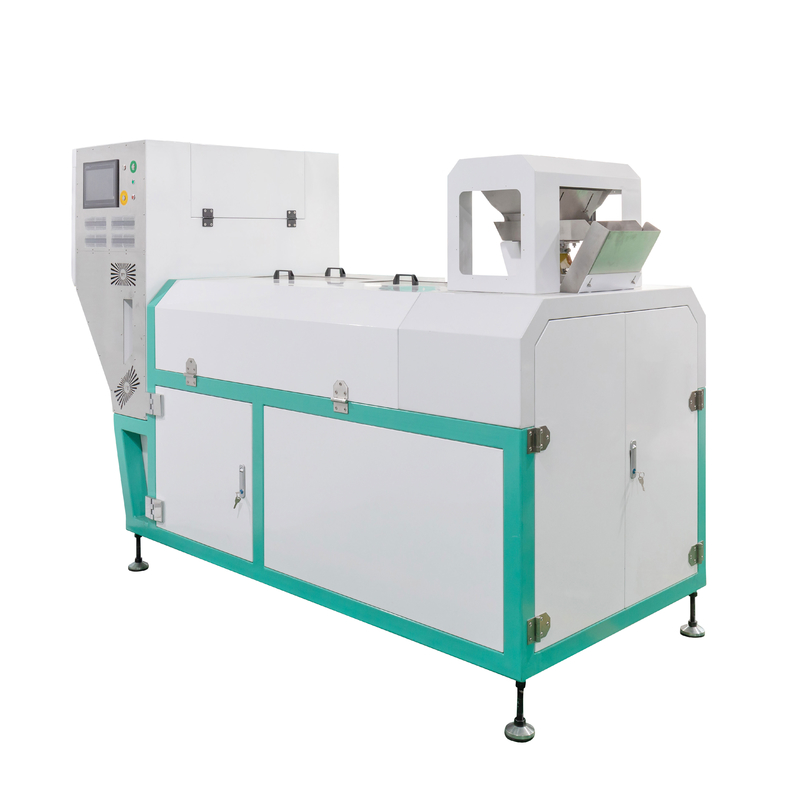

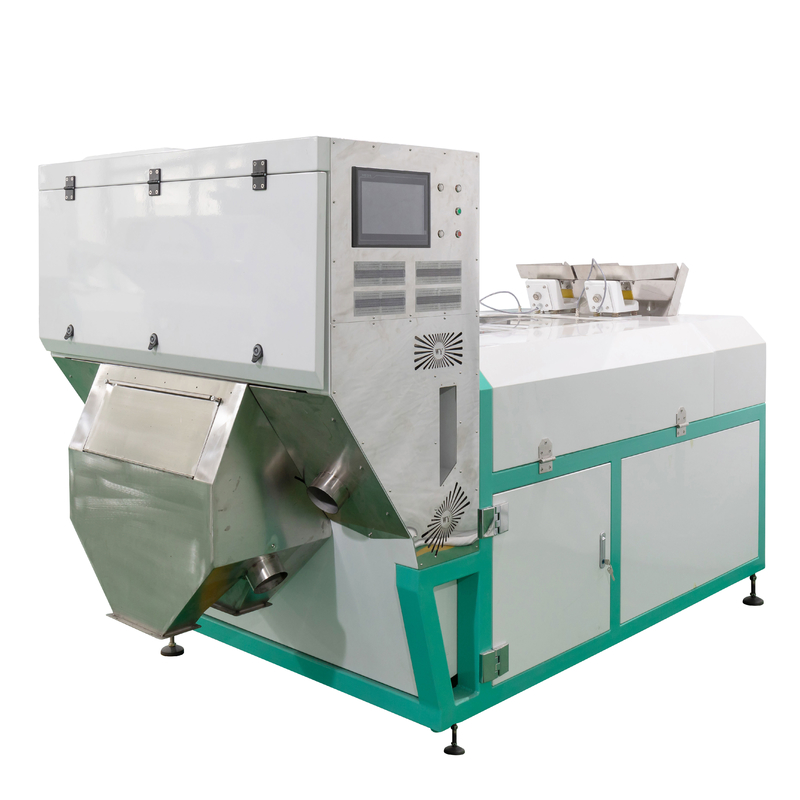

WENYAO High Speed Transmission Belt CCD Metal Color Sorter For Mineral Glass

WENYAO 2022 High Speed Transmission Belt CCD Metal Color Sorter For Mineral Glass Metal

What is a CCD in a camera?

Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber.

Belt Color Sorter Technical characteristics:

1) High speed lne scan, CCD sensor.-----------CCD Camera

2) Super clear imaging, resolution ratio, solor reduction well, no distortion.------------CCD lens

3) Swift reaction, high sensituvity, reliable, easy operation.--------------Pro-face Touch screen

4) High luminance, low power consumption, long life , reliable.-----------LED light

5) Special for color sorting, high frequency, low power consumption, high sorting accuracy.------------High frequency soleniod Valve

6)High quality food grade belt ; Stable sustain structure ; The import of high performance motor.--------Low broken

7)Unique air-suction and ventilation system, can help to clear away the floats in the material higher resolution of lens ----------- more accurate color-based sorting rate.

Technical Parameters:

Remarks: The parameters are based on Quartz stone (trash content is 8%), specific indices are subject to change according to the material and trash content; Products are subject to update without prior notice, please see the actual products.

Powelful Color Sorting Function:

Belt-Type Color Sorters Can Not Only Meet The Color Sorting Range Of Chute Color Sorters,It Can Also Provide Satisfactory Color Soting Alternatives For Ethereal,Iregular,Easily Broken,Highly-Moist Materials,Which Can Effectively Solve The Unsatisfactory Color Sorting Effects Due To Small Gravity Speed Caused By Light Weight Of These Special Materials,The Conveyance Speed Of Bell-Type Color Sorter Can Be Up To 4m/S,Which Can Effectively Meet The Requiements For Color Sorting And Yield.

The Crushing Rate Of Easly Broken Materials Can Be Minimized；Easy Color Sorting Solution Can Be Avoilable For Materials With High Moisture；Perfect Color Sorting Solution Can Also Be Available For Easily Bonded Mateials.

5400 Full Color Line Scan Technology,Algorithms Combining Colors And Spaces Can Provide"Color Sorting+Shape Sorting"For Different Materials,A Vaieties Of Modes Can Be Set Freely.

It Is Applicable To Many Materials.

Examples of belt type color sorting:

Our service:

We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.

We have over 30 after-sale service staff, with our service penetrating to prefecture-level city, and provide 24h door-to-door prompt and thoughtful service for customers.

We provide customer with two years free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.

Service commitment: Two years free repair and maintenance for complete machine, 24h door-to-door fast response, 7x24h consultation service .No matter where you are, you can visit us .
