Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us

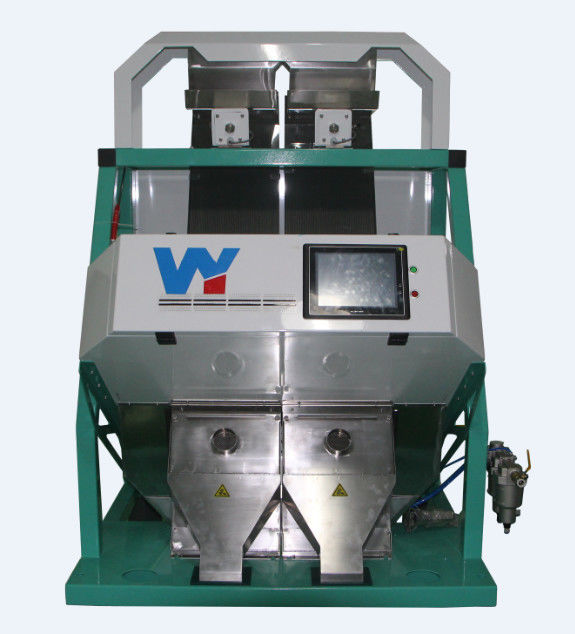

Melon Seeds Color Sorter Intelligent Watermelon Seeds Colour Sorter Machine
Sunflower Seed Color Sorter In China Watermelon Seed Colour Sorter
Technical Parameters:
MODEL | WYCS4-256 |
Chutes/Channels | 4/256 |
Throughput(t/h) | 2-3t/h |
Sorting Aaccuracy | ≥99.99% |
Power | 2.3kw |
Power Voltage | 180-240V/50Hz |
Air Source Pressure | 0.6-0.8Mpa |
Air Consumption | <2.4M3/Min |
Weight | 750kg |
Diamension(L*W*H) | 1855*1540*1852mm |
Main Parts | Parameters/ brand | Parts Advantage |
Channels | 64*4=256 | 1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long. |
Pixel of camera | 5400 | 1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years |
CCD sensor | Toshiba | High Sensitivity and resolution warranty:2 years |
light source | LED Lamps | 1.Luminous evenly 2.The service life is long 3.The light is not weak for long time |
Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
Screen | touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years |
Hopper | 304 stainless steel | 1.rust protection 2.wear-resisting,wearproof |
Package | Plywood Case | 1.Stable structure no deformation 2.Easy to transport |
Feeding system
It consists of feeding hopper, vibrating feeder, and chute. Raw material enters into vibrating feeder from the feeding hopper, then automatically be arranged into a series of continuous current line by vibration and a guiding mechanism, and fall to a detection zone at a constant speed after being accelerated by the chute. to ensure that the material is clearly present in the sorting cabinet. The feeding system also controls the capacity of the color sorting machine in addition to the function of providing raw material.T through the adjustment of the vibration amount of the feed hopper flow control plate and the vibration hopper, the control of the output of the color sorter per unit time can be realized.
Features:
Super Intelligent Identification Technology
1. Automatically identify the characteristics of materials, match the optimal sorting plan, and reasonably realize the customer's expectations for sorting;
2. Provide customers with the best and most economical sorting scheme;
3. To further realize color selection adaptive operation, learning, decision-making and control, one-click start, intelligent sorting.
HD Camera
1. Exclusive customized ultra-clear CCD sensor technology with high-definition low-distortion industrial lens;
2. The material can be scanned more than ten thousand times in one second, and the recognition accuracy reaches micron level, which can accurately identify tiny and fine lesions;
3. Recognize 130 million colors, achieve faster (speed), higher (precision), better (take out).
Custom high frequency solenoid valve
1. Lower gas consumption and longer service life;
2. Higher removal rate, no longer wearing parts.
Real-time big data system
1. Realize remote operation, remote diagnosis, remote warranty and online training.
2. Real-time collection, analyze and push remote business opportunity information on the operation data of the equipment in real time, so as to ensure that customers can grasp all kinds of value-added business news in the first time.
Global unique color sorter air duct circulation cooling system
1. Unique heat dissipation system can effectively improve the service life of LED and equipment.
2. Enhance circuit stability and make the reliability of the whole machine more superior to similar products on the market.
Three-dimensional ring suction
1. Three-dimensional ring suction system, the ultimate cleaning effect, reduce the cleaning frequency.
2. Super long cleaning interval, easier production and better color selection effect.
According to the system dynamics carefully design, make the material stable with the light source.
Advanced automatic dimming technology can automatically match the best brightness according to the requirements of material selection and changes in the environment to achieve the best and most stable sorting performance.
Multispectral analysis technology
With high-definition micron recognition technology and intelligent shape selection technology, can accurately select glass, plastic particles, desiccant, gravel and other non-rice materials.
Our Service:
Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
1. The color sorter uses 5000+ pixels high performances CCD sensors with resolution up 0.1mm.
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting.
3. The high speed FPGA technology signal processor with fast detection and high identification rate.
4. Master control system adopts ARM9 embedded processor, and effectively enhances and control
speed and color selection precision.
5.Overall unit adopts intelligent closed-loop control.
6.The operation interface adopts industrial grade 10 inch capacitive touch screen and features simple parameters
setting and esay operation.
7.High speed air value is used to ensure quick response, low power consumption and long service life.
8.Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
9. Failure alarm automation and modular construction makes easy repair.
Customer's Site :
Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
Why choose US?
1. Over 15years experiences focus on color sorter. We have the strength give better service and price to you.
2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. We can meet your requirements on testing, installation and after sales service.
3. OEM/ODM is Supported: We have a strong R&G team. We can research and development suitable color sorter for you.
4. Quality Process Assurance: We pass CE, RoHS and ISO quality management system, each process of production are under strictly standard.
5. Shipping Guarantee: We have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.
