Sesame Grain Soybean Mini Rice Color Sorter 32 Channels

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels

32 Channels Mini Rice Color Sorter

Rice Sorter WIFI remote control

32 Channels Soybean Sorting Machine

Place of Origin:

Anhui,China

Brand Name:

WENYAO

Certification:

CE,SGS,TUV,ISO9001

Model Number:

WYCS1-32

Contact Us

Request A Quote
Product Details
Function:
Removing The Bad Rice And The Other Impurites
Sorting Accuracy(%):
≥99.00
Power Source:
Mean Well
Camera/Sensor:
Toshiba/CCD Sensor
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Weight:
280kg
Size:
460*895*1356mm
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiated
Packaging Details
Plywood case package Packing size(L*W*H):1.70x1.0x1.55M
Delivery Time
3-5 working days after payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300PCS Per Month
Product Description

32 Channels Mini Rice Color Sorter Sesame Grain Soybean Sorting Machine Used In Indonesia



32 Channels Mini Rice Color Sorter Sesame Grain Soybean Sorting Machine Widely Used In Indonesia



Working Principle


The photoelectronic color sorter is a kind of non-destructive sorting equipment for the quality,inspection and classification of bulk materials.It has a wide range of applications in the grain,food,pigment chemical industry and other industries.As for beans,rice,ore,pepper,garlic,melon seeds, raisins, seeds,Chinese medicine,sea rice,shrimp skin,broken glass,metal pellets,the same color rod and other impurities and special materials.The sorting effect is very significant.

1. The selected materials enter the machine from the hopper at the top.With the vibration of the vibrator device,the selected materials are conveyed along the channels,enter the observation area of ​​the sorting room, and passe between the sensor and the background plate.

2. Under the affect of the light,the system generates an output signal to drive the solenoid valve to blow out the different-colored particles to the waste hopper with the intensity of the light and the color change.And the good materials continue to fall into the finished hopper .

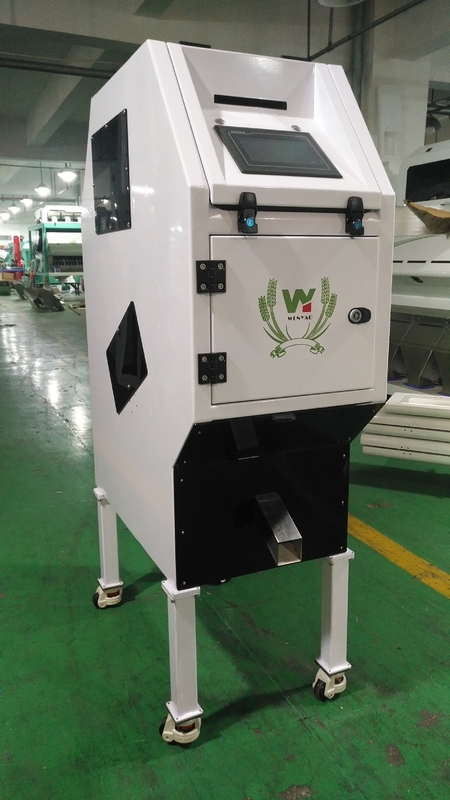

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 0


Product Application


Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney
bean,Chili,Red bean, others.


Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.


Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.

Technical Parameters:

MODEL WYCS1-32
Chutes/Channels 1/32
Throughput(t/h) 500-800 Kg /H
Sorting Aaccuracy ≥99.99%
Power 0.45kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.2-0.3Mpa
Air Consumption 200-300L/Min
Weight 180kg
Diamension(L*W*H) 460*895*1356mm



Features:

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►5400Pixel CCD image acquisition system with high speed chip.



Examples Of Color Sorting

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 1

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 2

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 3

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 4

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 5

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 6

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 7

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 8

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 9



The Catalogue Of Wenyao Color Sorter Machine





Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 10Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 11Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 12Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 13



























Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 14Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 15Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 16



Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 17Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 18

Sesame Grain Soybean Mini Rice Color Sorter 32 Channels 19

















FAQ:

1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.

2. How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.

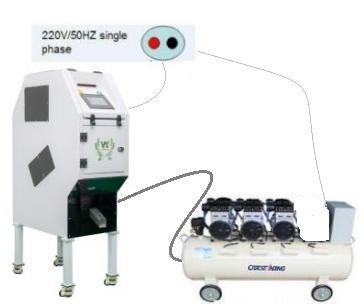

3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. what about the after sales service?

Yes, By videos or by remote control or local service or engineers could go abroad when required.
