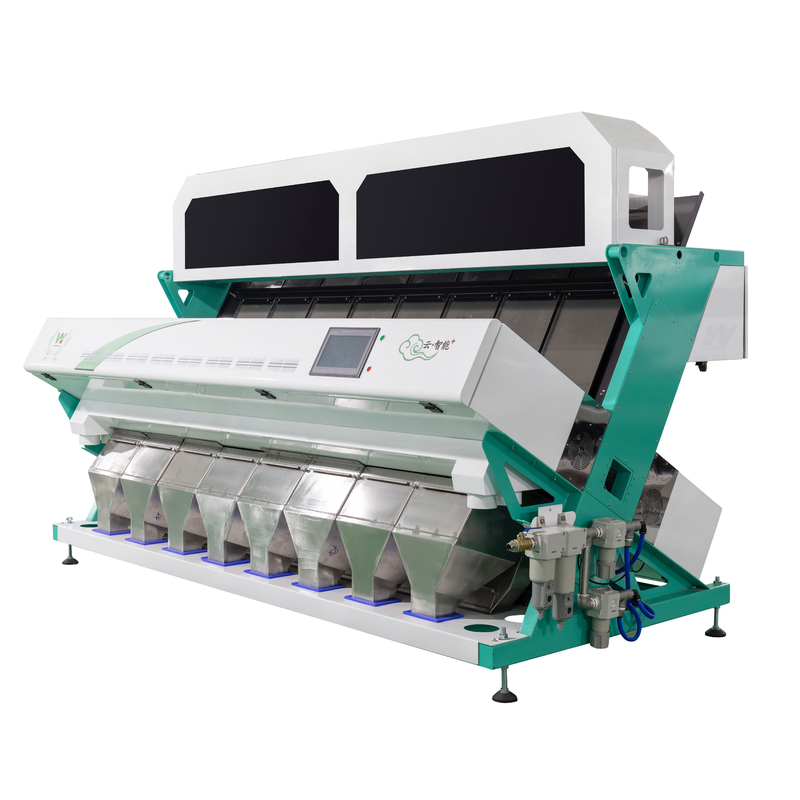

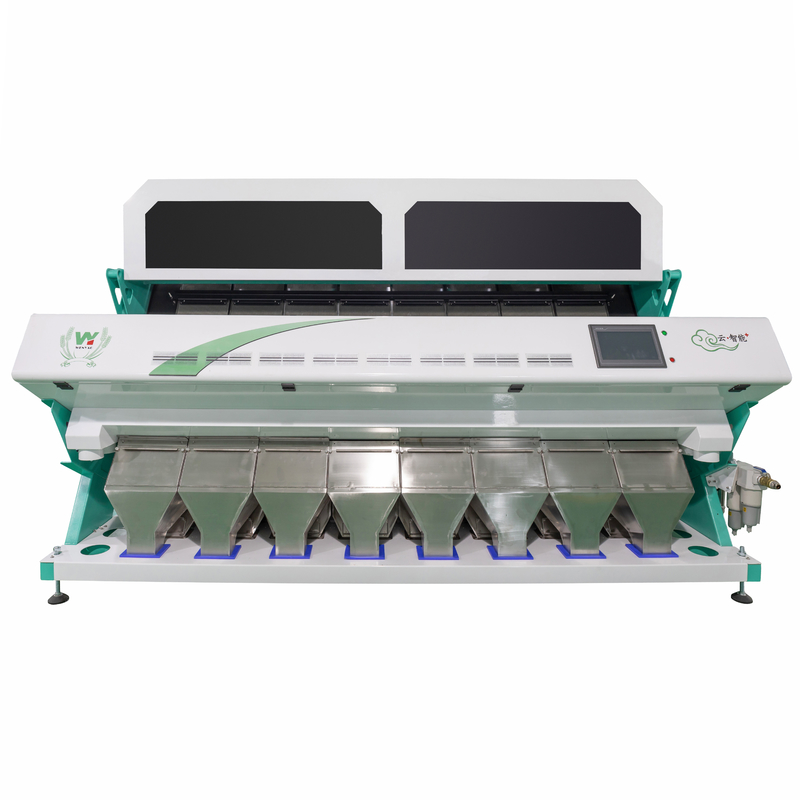

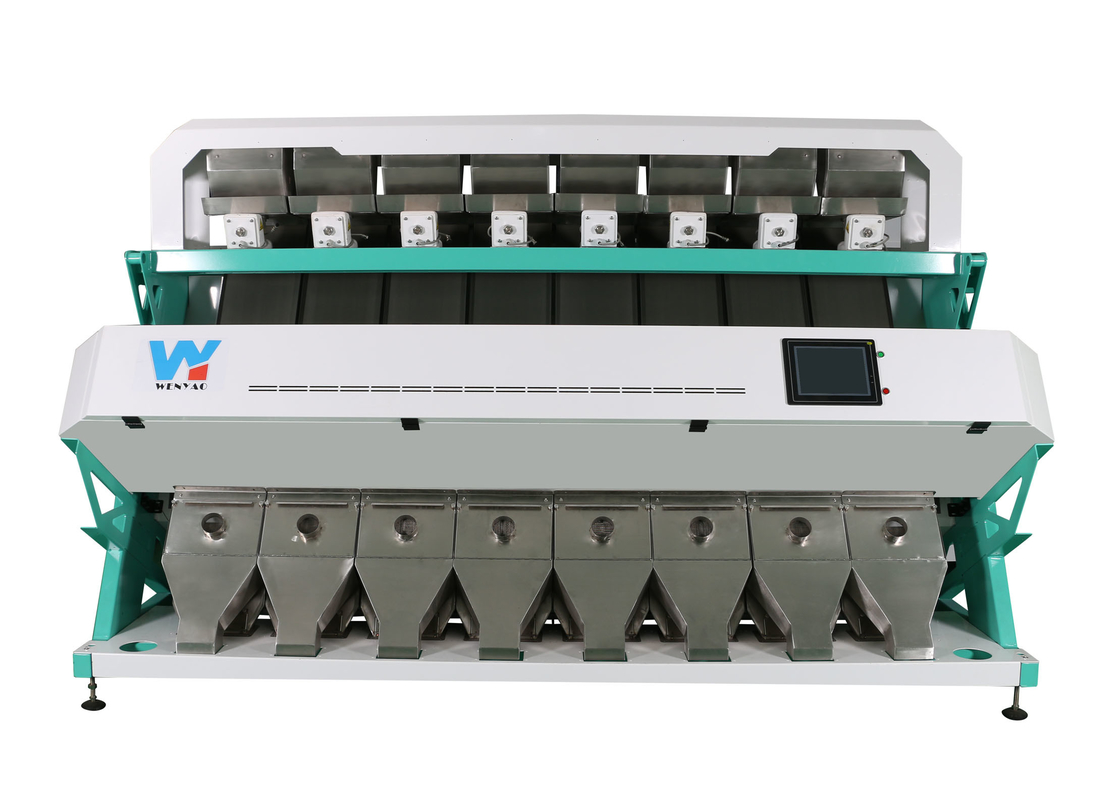

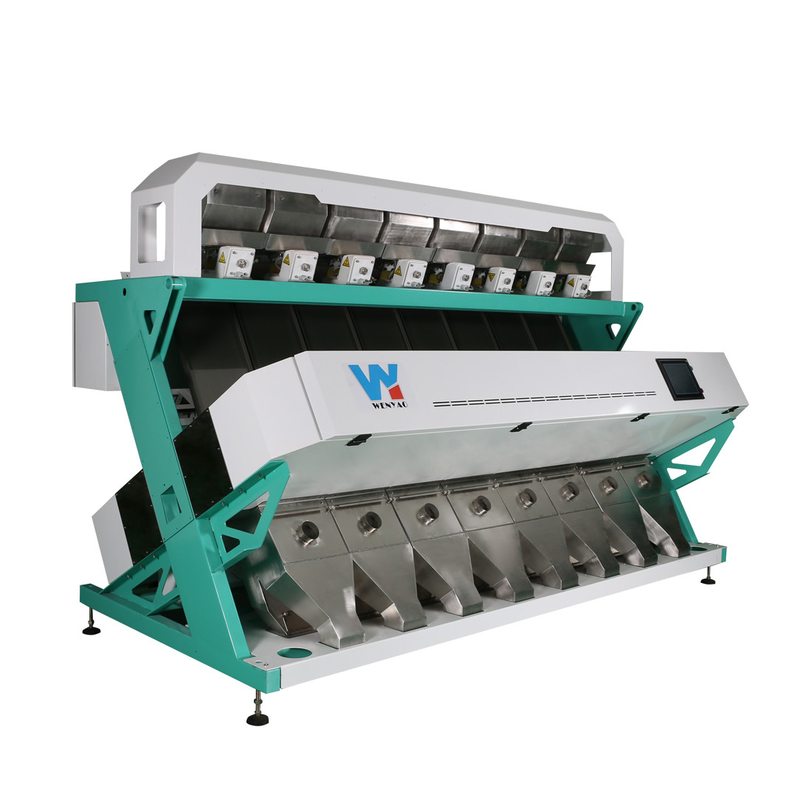

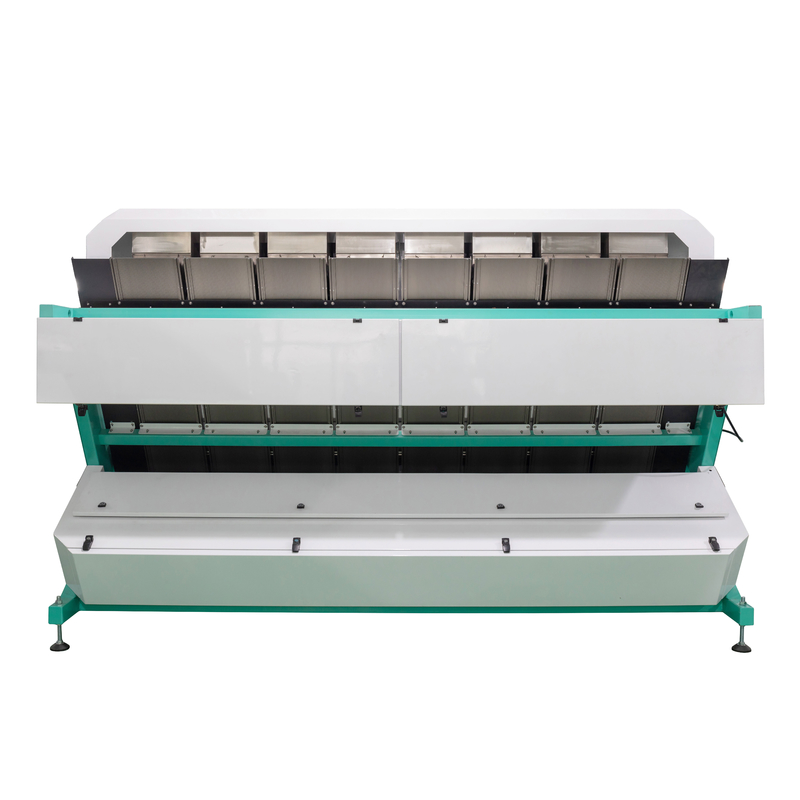

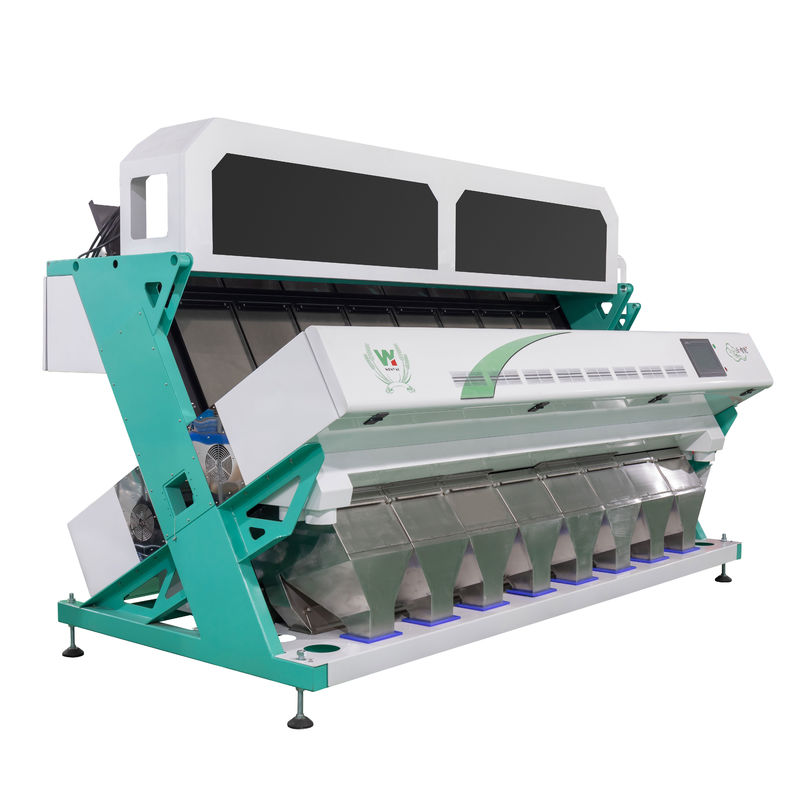

Intelligent Color Sorting Machine Rice Color Sorter Separator Machine For Rice Mill
Color sorter is a machine which used for separating the bad grain from the raw material through the color difference between the rejection and finished products. Wenyao color sorter adopting 5400 pixel high resolution CCD camera, advanced image analysis and processing technology, long-life high-efficiency easy maintenance ejector as well as excellent optical system.
Color sorter working principle
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
Technical Parameters:
| MODEL | WYCS18-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 7-16t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 2000-4000L/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Rice Colour Sorter Features
1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.
2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.
5. Humanization true color screen, visual effect is more clear, operation is more easier.
6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.

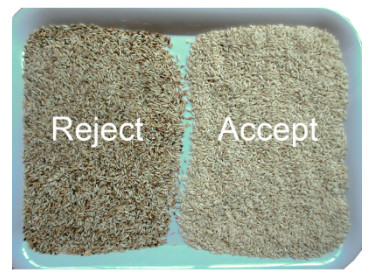

Examples of color sorting for rice
Our service
1. We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.
2. We have over 30 after-sale service staff, with our service penetrating to prefecture-level city, and provide 24h door-to-door prompt and thoughtful service for customers.
3. We provide customer with two years free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.
4. Service commitment: Two years free repair and maintenance for complete machine, 24h door-to-door fast response, 7x24h consultation service .No matter where you are, you can visit us .
