Place of Origin:
China Hefei
Brand Name:
WENYAO
Certification:
CE AND ISO9001
Model Number:
WYCS6-384
Contact Us
Video
Video

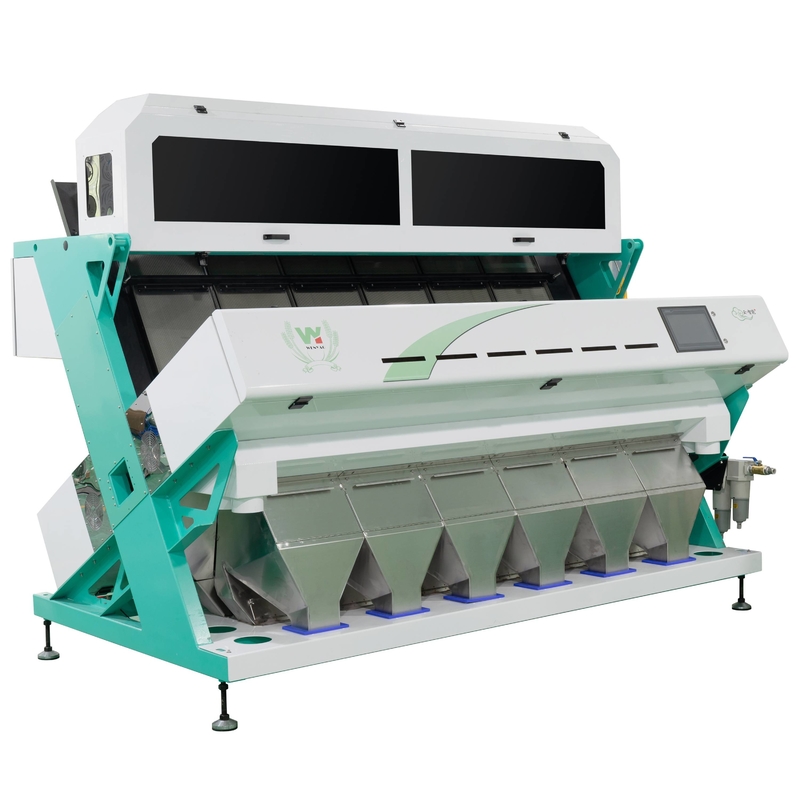

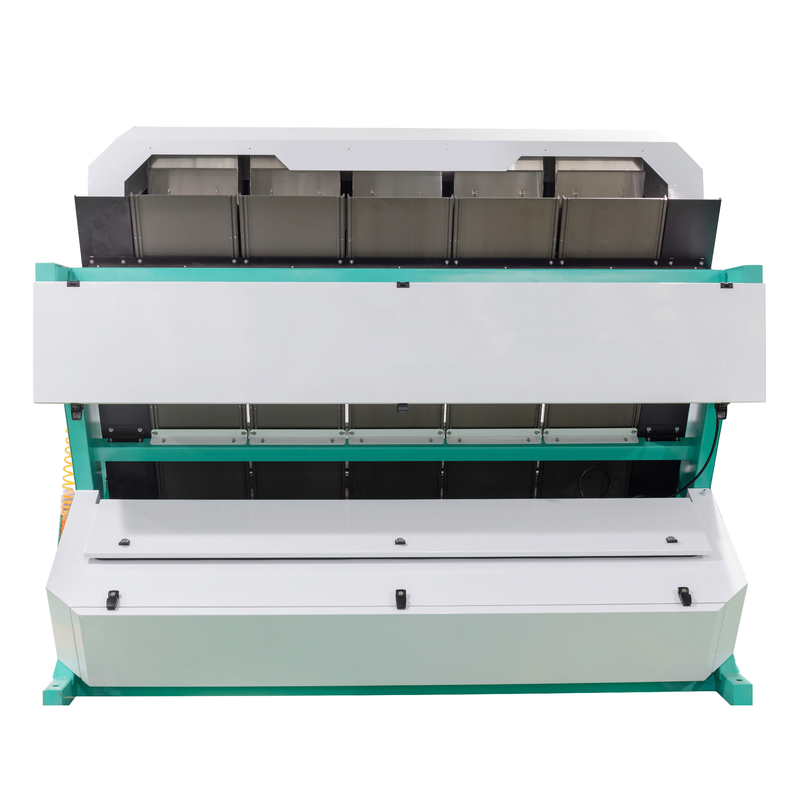

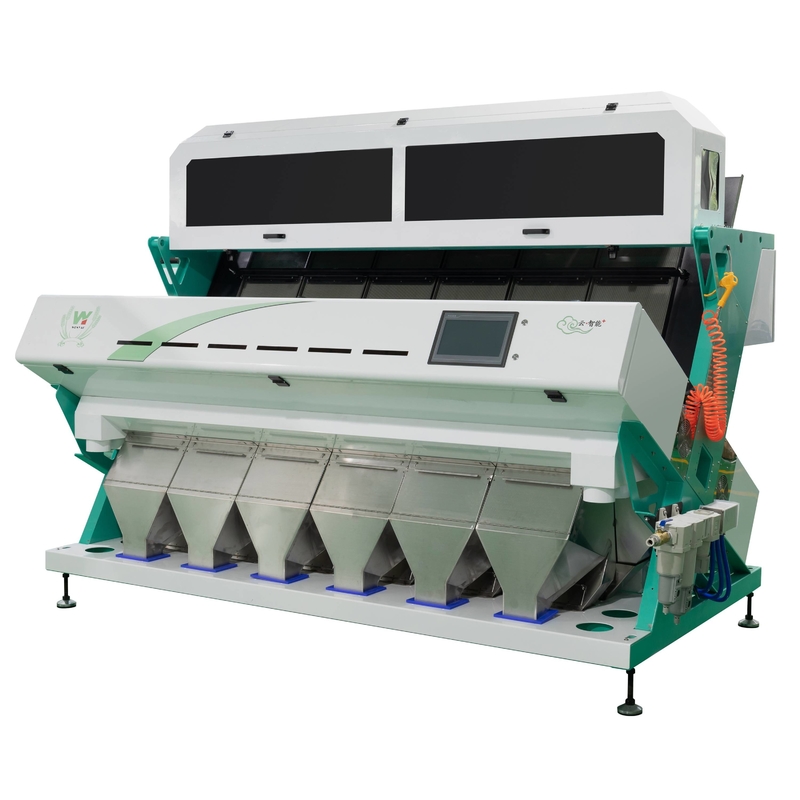

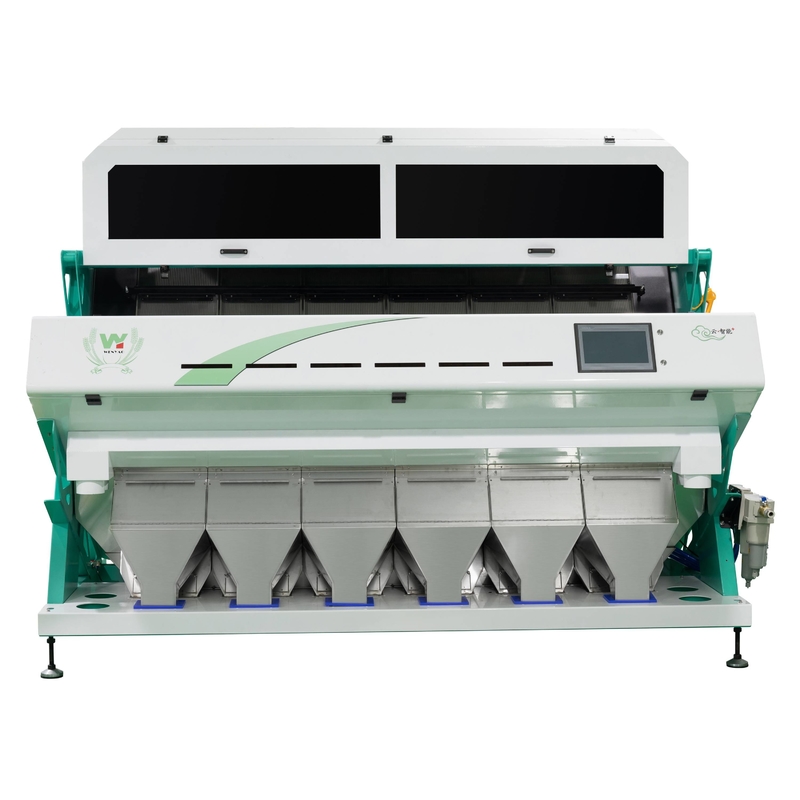

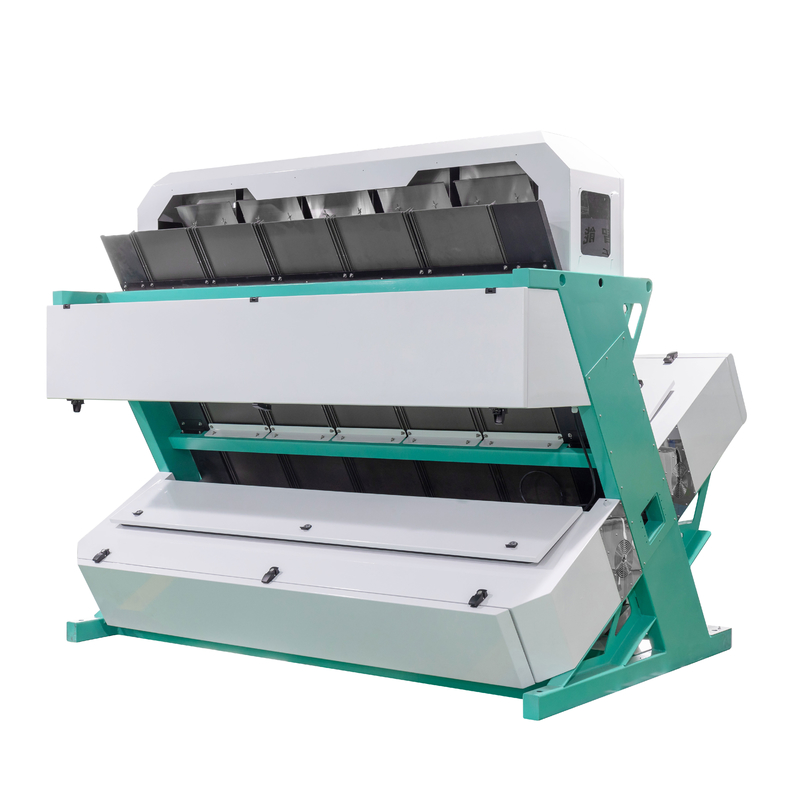

High Quality Color Sorter Plastic PET Color Sorting Machine With 2 Years Warranty
Based on Full-Colour technology, Wenyao providing the highest yield and quality on standard commodities, such as grains, seeds, coffee, nuts and other food applications.
It can combine smart Full-Colour cameras with NIR technology, depending on the sorting target, and can provide the best detection and removal of unwanted elements.
Technical parameters
| MODEL | WYCS6-384 |
| Chutes/Channels | 6/384 |
| Throughput(ton/h) | 2.5-8 |
| Sorting Aaccuracy | ≥99.98% |
| Power | 3.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 1500-3200L/Min |
| Weight | 1100kg |
| Diamension(L*W*H) | 2595*1540*1852mm |
Wenyao color sorting machine features
1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.
2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.
5. Humanization true color screen, visual effect is more clear, operation is more easier.
6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.
Sorting examples for plastic:
Service of
--1) We can promise machine all details with high quality.
--2) The rice mill machine can be painted in different color according to customers’ favor.
--3) Any time customers has problem for using the machine can contact us, and also for large plant, we can send install video or technical workers go to guide how to install and how to operate.
--4) Guaranty time for two years.
Customer Sites :
