WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty

WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty

CKD Filter Wheat Color Sorter

2 Years Warranty Wheat Color Sorter

CCD Optical Wheat Color Sorter

Place of Origin:

Hefei China

Brand Name:

WENYAO

Certification:

CE ISO9001

Model Number:

WYCS1-32

Contact Us

Request A Quote
Product Details
Function:
Multifunction Color Sorting
Accuracy(%):
≥99.99
Condition:
2022 New
Power:
450W
Voltage:
220V/50Hz/60Hz
Warranty:
2 Years Warranty
After-sales Service Provided:
Engineers Available T
Weight:
180 Kg
Dimension:
460mm*895mm*1356mm
Filter:
CKD & SMC
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiated
Packaging Details
Plywood case package Packing size(L*W*H):1.70x1.0x1.55M
Delivery Time
7-15 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50PCS Per Month
Product Description

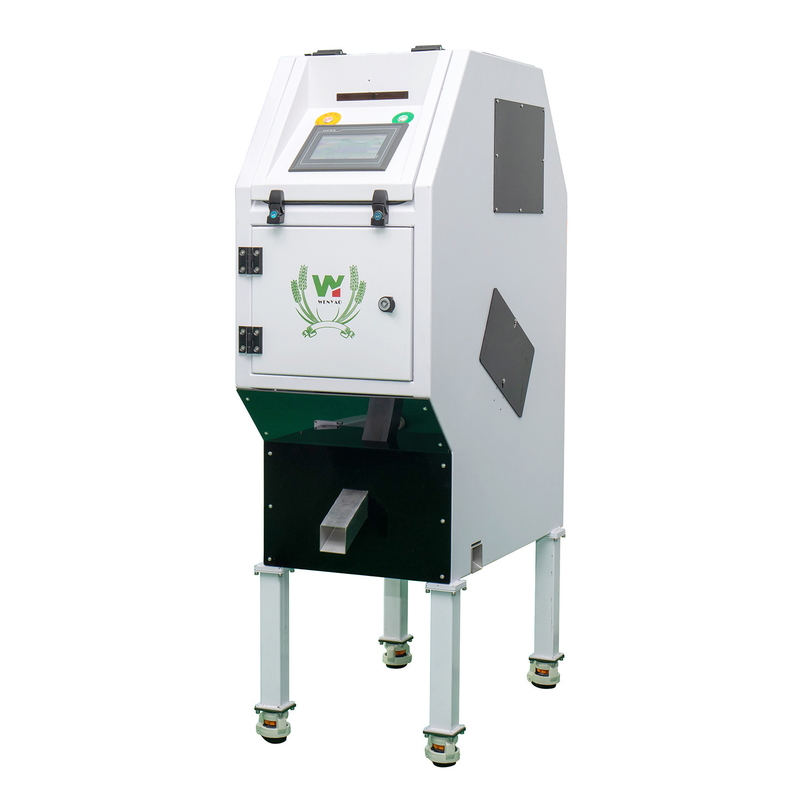

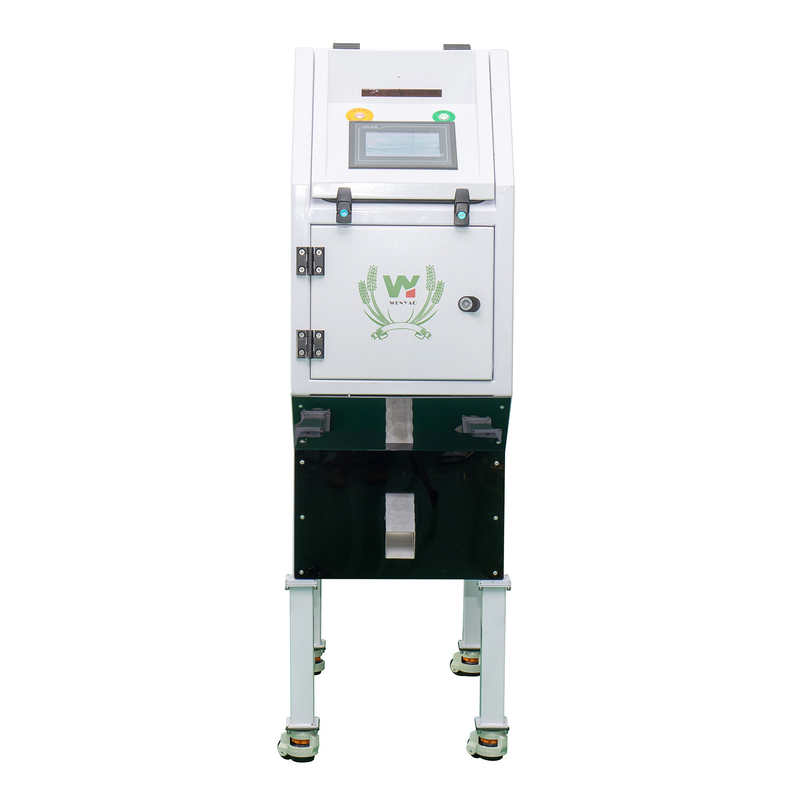

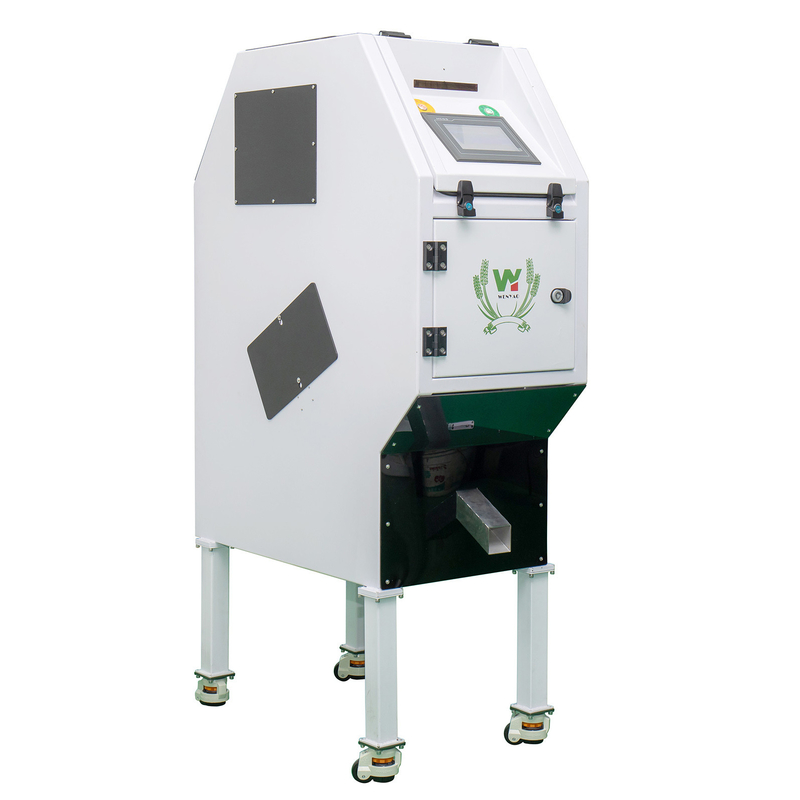

WENYAO 2022 CCD Optical Small Rice Grain Wheat Color Sorter with 2 Years Warranty



Based on Full-Colour technology, Wenyao providing the highest yield and quality on standard commodities, such as grains, seeds, coffee, nuts and other food applications.It can combine smart Full-Colour cameras with NIR technology, depending on the sorting target, and can thus provide the best detection and removal of unwanted elements.




Working Principle


The photoelectronic color sorter is a kind of non-destructive sorting equipment for the quality,inspection and classification of bulk materials.It has a wide range of applications in the grain,food,pigment chemical industry and other industries.As for beans,rice,ore,pepper,garlic,melon seeds, raisins, seeds,Chinese medicine,sea rice,shrimp skin,broken glass,metal pellets,the same color rod and other impurities and special materials.The sorting effect is very significant.



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 0



Technical Parameters:



MODEL WYCS1-32
Chutes/Channels 1/32
Throughput(t/h) 500-800 Kg /H
Sorting Aaccuracy ≥99.99%
Power 0.45kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.2-0.3Mpa
Air Consumption 200-300L/Min
Weight 180kg
Diamension(L*W*H) 460mm*895mm*1356mm



Features:



1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.

2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.

3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.

4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.

5. Humanization true color screen, visual effect is more clear, operation is more easier.

6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.



Examples Of Color Sorting





WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 1







































The Catalogue Of Wenyao Color Sorter Machine





WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 2WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 3WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 4WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 5



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 6WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 7WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 8



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 9WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 10



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 11

Sorting Examples and Customers' Sites:



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 12



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 13



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 14



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 15



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 16



WENYAO CCD Optical Rice Grain Wheat Color Sorter 2 Years Warranty 17



Service :


--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color according to customers’ favor.
--3)Any time customers has problem for using the machine can contact us, and also for large plant, we can send install video or technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.



How can a color sorter benefit your business?

Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products.



FAQ:



1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.

2. How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. what about the after sales service?

Yes, By videos or by remote control or local service or engineers could go abroad when required.
