High Capacity Peanuts Nuts Color Sorter 32 Channels

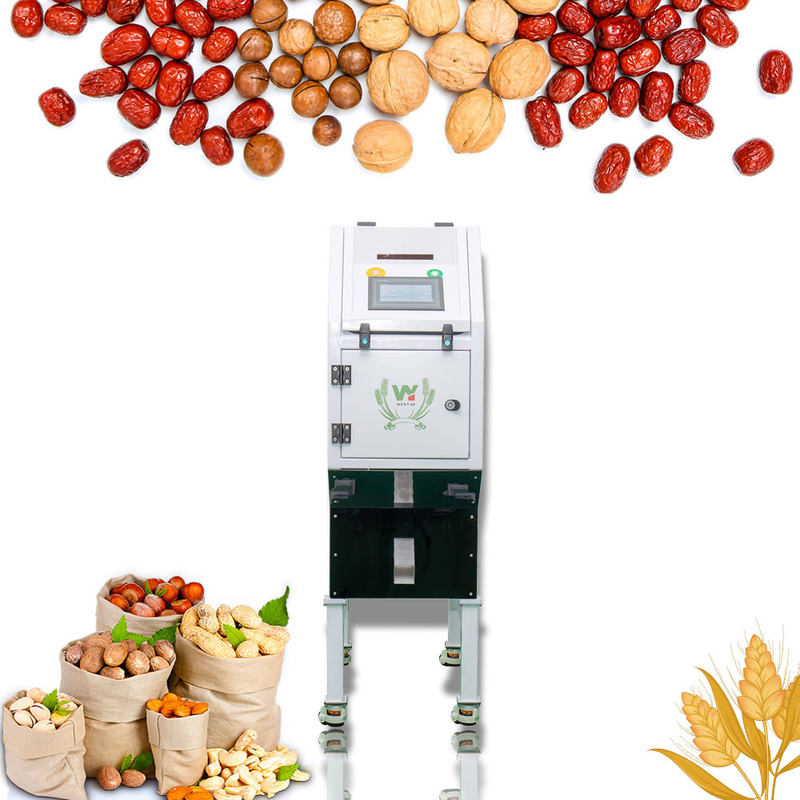

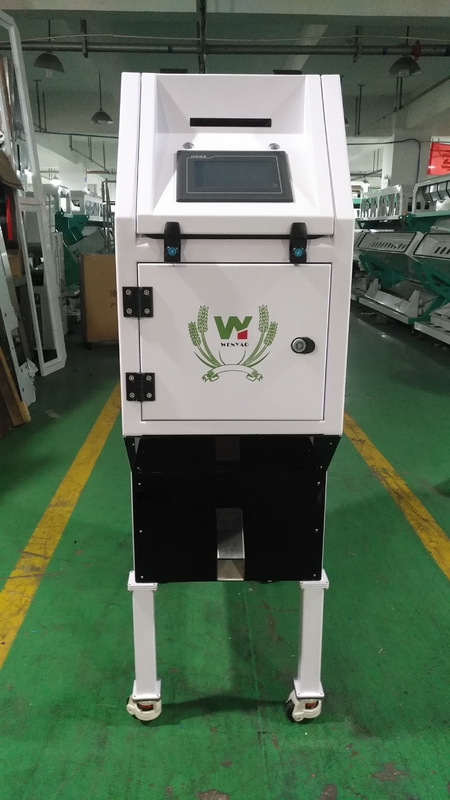

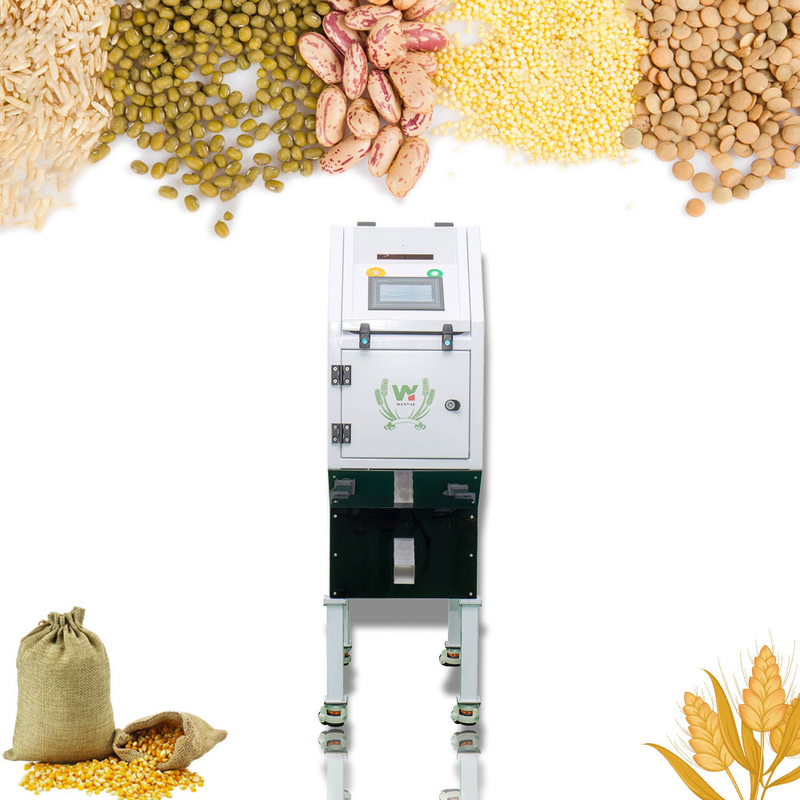

High Capacity Peanuts Nuts Color Sorter 32 Channels

32 Channels Peanut Color Sorter

High Capacity Nuts Color Sorter

32 Channels Peanut Color Sorting Machine

Place of Origin:

Hefei,China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS1-32

Contact Us

Request A Quote
Product Details
Produnct Name:
Nuts Color Sorting Machine
Application Scope:
Walnut Peanut Cashew Almond Pistachio Macadamia Nut
Channels:
32
Sorting Accuracy(%):
≥99.99
CCD Sensor:
Japan Toshiba
Light Source:
Meanwell LED
Warranty:
2 Years
After-sales Service Provided:
7*24h On Line Support
Machinery Function:
Color & Size Sorting
Capacity:
0.3-0.5ton/h
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):0.63x1.05x1.49M
Delivery Time
5-7 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300PCS Per Month
Product Description

Professional High Capacity Nuts Color Sorter Peanuts Color Sorting Machine Made in China





What is color sorter?

Color sorter is a machine which used for separating the bad grain seeds from the raw material through the color difference between the rejection and finished products. Wenyao color sorter adopting 5400 pixel high resolution CCD camera, advanced image analysis and processing technology, long-life high-efficiency easy maintenance ejector as well as excellent optical system.



Working Principle:

High Capacity Peanuts Nuts Color Sorter 32 Channels 0



Technical Parameters

MODEL WYCS1-32
Chutes/Channels 1/32
Throughput(t/h) 0.3-0.5t/h
Sorting Aaccuracy ≥99.99%
Power 0.5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <0.3M3/Min
Weight 180kg
Diamension(L*W*H) 460*895*1356mm



we use the following listed technology in themachine :



1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.

2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.

3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.

4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.

5. Humanization true color screen, visual effect is more clear, operation is more easier.

6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.

3.



Product Application

Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili,
Soybean,Red bean, black bean,chickpea,lentil,others.

Tea leaf materials:

Such as:Black Tea,Green Tea,Herb Tea,Corn Flower

Vegetable and frut:

Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp

Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.

High Capacity Peanuts Nuts Color Sorter 32 Channels 1

High Capacity Peanuts Nuts Color Sorter 32 Channels 2



Service :


--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color according to customers’ favor.
--3)Any time customers has problem for using the machine can contact us, and also for large plant, we can send install video or technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.



How can a color sorter benefit your business?

Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products.



FAQ

1. Q: How long about the guarantee period?
Two years. And we will supply lifelong software upgrade services for our customers.
2. Q: Will you accept L/C as payment?
L/C ,T/T is OK.
3. Q: How about engineers service oversea?
Our engineers could go abroad services when necessary.
4. How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
5. Q: How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
6. Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
7. Which machine will work together with our color sorter which you can supply?
We can provide Air compressor, air tank, air filters, Cleaning brushes, etc.



Examples of nuts color sorting

High Capacity Peanuts Nuts Color Sorter 32 Channels 3



High Capacity Peanuts Nuts Color Sorter 32 Channels 4

High Capacity Peanuts Nuts Color Sorter 32 Channels 5





Our custom's site

High Capacity Peanuts Nuts Color Sorter 32 Channels 6

High Capacity Peanuts Nuts Color Sorter 32 Channels 7

High Capacity Peanuts Nuts Color Sorter 32 Channels 8

High Capacity Peanuts Nuts Color Sorter 32 Channels 9

High Capacity Peanuts Nuts Color Sorter 32 Channels 10



Packing delivery


Packaging Details:Our products use professional wooden cases with PE plastic bag.Package size will depend on each model size.
Delivery Detail:Within 15 - 20 days after received deposit


High Capacity Peanuts Nuts Color Sorter 32 Channels 11



High Capacity Peanuts Nuts Color Sorter 32 Channels 12

High Capacity Peanuts Nuts Color Sorter 32 Channels 13
