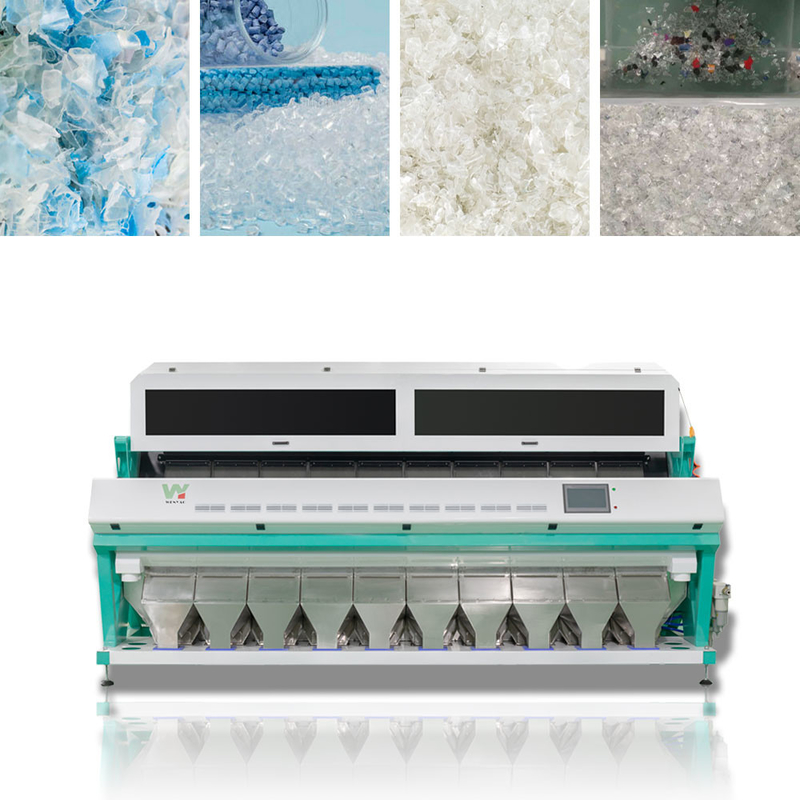

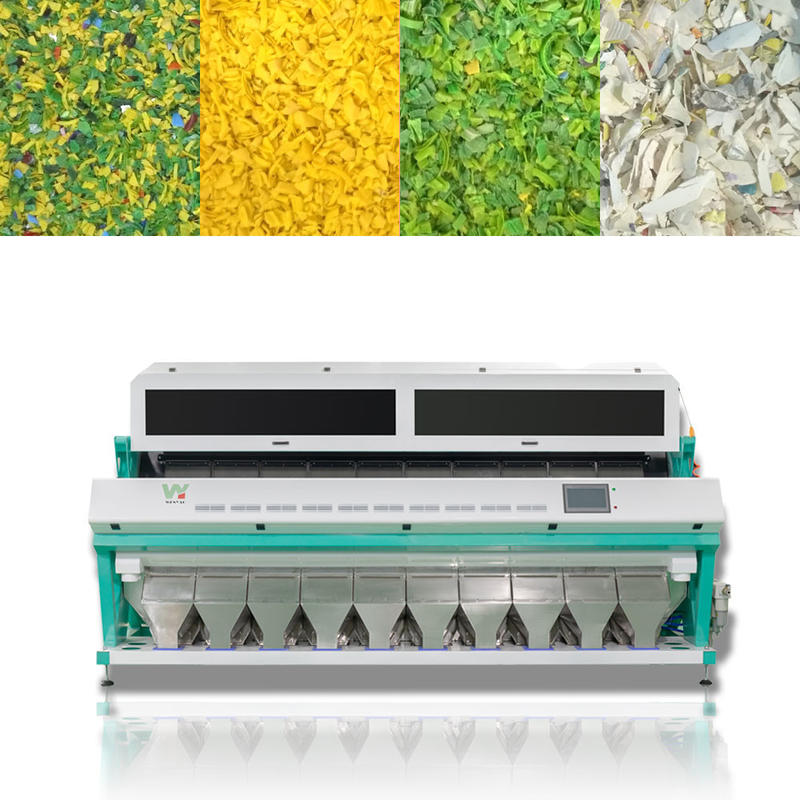

640 Channels PET PVC Plastic Flake Color Sorting Machine High Capacity

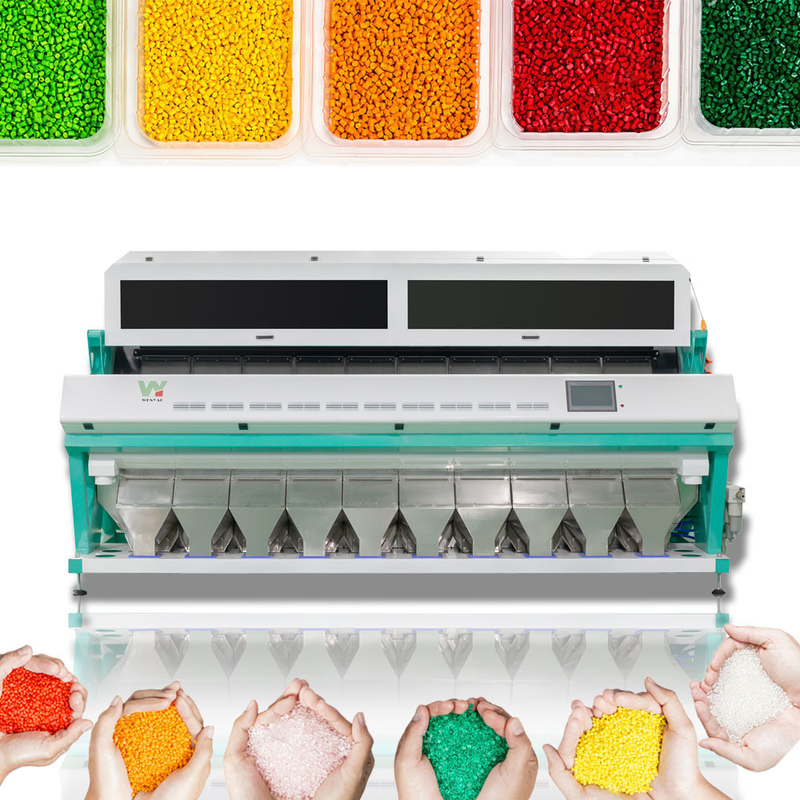

High Capacity 640 Channels Plastic Granules Pellet Sorting Machine Color Separating For Plastic


What is a CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.

Working principle:
Raw Material are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate.Under the effect of light source, CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

Wenyao all products technical parameters:


Color Sorting Machine Features:

1. The color high resolution CCD image acquisition system uses the color CCD image acquisition system to realize the comprehensive acquisition of the material red, green and blue color information. The color sorter has the human eye's sense ability, the material selection is more realistic and more in line with the requirements; the higher resolution is up to 0.04 mm2, which can accurately identify the fine defects and spots of raw materials. High precision special lens ensures clear and accurate image.

2. Flexible and variable light source equipped with LED system with heat dissipation, long life, low energy consumption and good performance. Different raw materials require different spectral lighting, and tailor the light source according to the needs of customers.
3. The special image processing algorithm uses shape and color combination algorithm according to material characteristics. For complex color materials, the color space after HSV transformation is more intuitive and precise.

4. Unique material trough equipped with special anodizing process can ensure the output and make the product reach the international level. It can be equipped with waterfall flat and narrow chute channel, which can meet many kinds of material color selection.
5.High-quality solenoid valves use high-quality solenoid valves, high frequency, long service life, very low gas consumption, to ensure that the machine output is large, take-out ratio is low, failure rate is low, low energy consumption; in view of the characteristics of large and small particles of raw materials, solenoid valves of different sizes are adopted.

6. Excellent rejection rate (take-out ratio 10:1). Advanced image acquisition system + intelligent image processing algorithm + high quality nozzle system = Excellent rejection rate

7. Simple operation, easy to learn and use, simple optical system design, precise automatic correction system, combined with carefully designed man-machine interface, greatly simplifies the complexity of machine debugging and use, ensures simple operation, and makes the machine easy to learn and use.

8. The selected material enters the machine from the top hopper, slides down the channel through the vibration of the vibrator device, accelerates the falling into the observation area of the sorting room, and passes through the sensor and the background plate. Under the action of light source, according to the intensity and color change of light, the system generates output signal to drive the solenoid valve to work and blow out the heterochromatic particles into the waste cavity of the hopper, while the good selected materials continue to fall into the finished cavity of the hopper, so as to achieve the purpose of sorting

Effects of plastic sorting by wenyao color sorter:




Color sorter used in other materials:

Note:Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos

Our Service:

Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.

6. Packing and Delivery:


Parking and delivery:

Packaging Details:
Our products use professional wooden cases with PE plastic bag.

Package size will depend on each model size.
