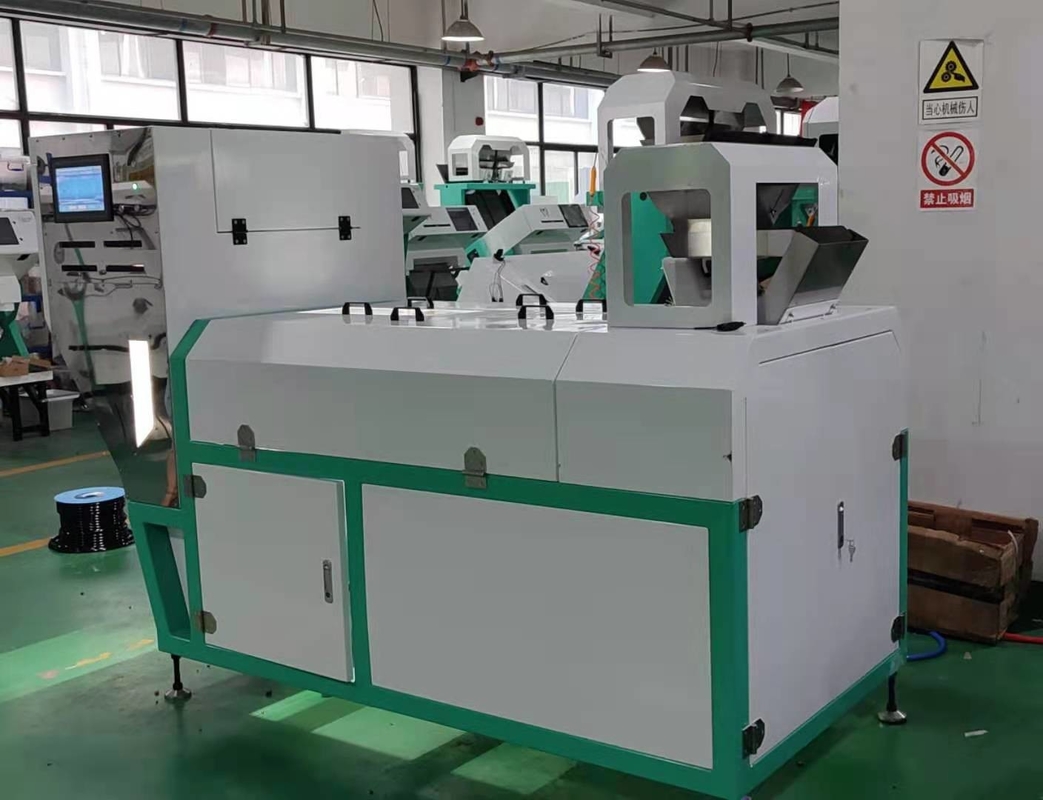

Hot Pepper Chili Belt Color Sorter With RGB Camera

Hot Pepper Chili Belt Color Sorter With RGB Camera

Hot Pepper Chili Belt Color Sorter

Hot Pepper Chili Color Sorting Machine

RGB camera Belt Color Sorter

Place of Origin:

Hefei,China

Brand Name:

WENYAO

Certification:

CE,ISO9001,SGS,TUV

Model Number:

WYB2

Contact Us

Request A Quote
Product Details
Application:
Chilli,fruit ,metal, Copper ,walnut,Ore,Glass
Sorting Accuracy:
≥99.9%
Chutes(channels):
2/128
Remote:
Wifi Remote Control
CCD:
Toshiba Brand
Camera:
RGB Camera
Lamp Source:
LED Variable Light
Hopper:
Stainless Steel 304
Warranty:
2 Years
Capacity:
0.5-1t/h
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Hot Pepper Chili belt color sorter/chili seeds separator machine big material color sorting machine



Technical Parameters:

MODEL WYB2
Chutes/Channels 2/128
Throughput(t/h) 1-2t/h
Sorting Aaccuracy ≥99.9%
Power 3kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <0.6M3/Min
Weight 756kg
Diamension(L*W*H) 2470*1325*1560
mm

Throughtput:Different impurity with different throughput.



Working Principle

Hot Pepper Chili Belt Color Sorter With RGB Camera 0





Hot Pepper Chili belt color sorter/chili seeds separator machine big material color sorting machine







Hot Pepper Chili belt color sorter/chili seeds separator machine big material color sorting machine



Features:

1. Camera

leading in the industry

International well-known brand customized lens
Import high-end 5400PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²

2. High-frequency Solenoid Valve

High-quality high-frequency solenoid valve, with consistency of near zero error.

Service life more than 1 billion times.
Ultra high precision, leading in China

3. Intelligent Image Processing Algorithm

The combination of colors and shapes of intelligent algorithm
Precise professional sorting solutions

4. Customized Lighting System

Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.

5. Data Transmission System

high-speed and stable
High anti-jamming, high transmission speed, high stability

6. Human-Computer Interface

simple and easy to operate

More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.



Color Sorter Application:



Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice





Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea





Tea: green tea/black tea/dark tea/white tea/ yellow tea





Cereals: corn/barley/wheat/oat/sesame/malt





Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed





Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio





Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage





Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl





Economic Crops:raisin/medlar/lily/red date/shrimp bran/tobacco/agaric



Examples of nuts color sorting:

Hot Pepper Chili Belt Color Sorter With RGB Camera 1

Hot Pepper Chili Belt Color Sorter With RGB Camera 2 Hot Pepper Chili Belt Color Sorter With RGB Camera 3



Hot Pepper Chili Belt Color Sorter With RGB Camera 4



Hot Pepper Chili Belt Color Sorter With RGB Camera 5



Hot Pepper Chili Belt Color Sorter With RGB Camera 6

Package :

Hot Pepper Chili Belt Color Sorter With RGB Camera 7

Hot Pepper Chili Belt Color Sorter With RGB Camera 8

Hot Pepper Chili Belt Color Sorter With RGB Camera 9
