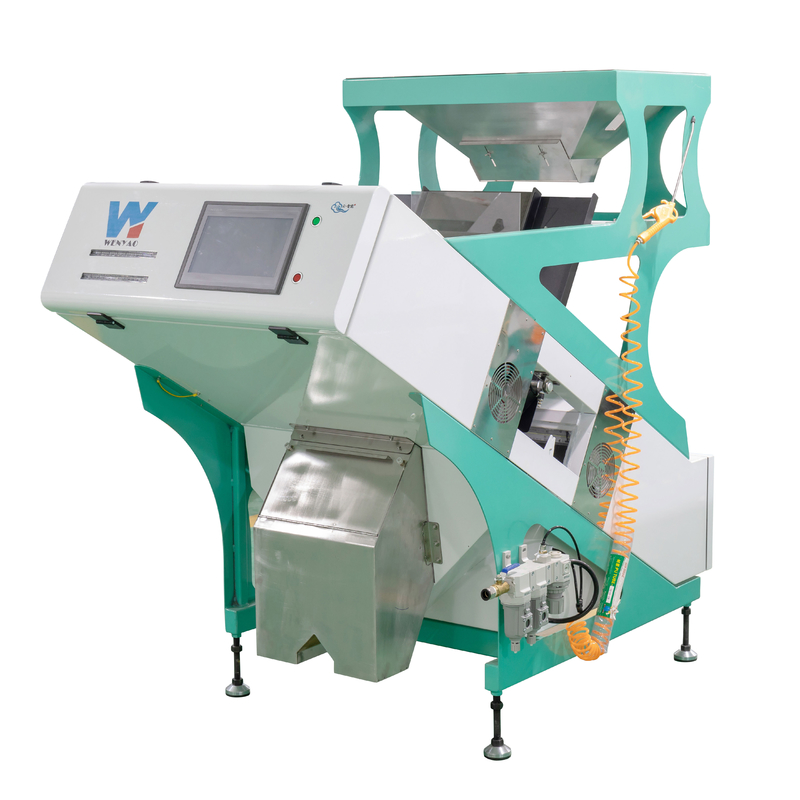

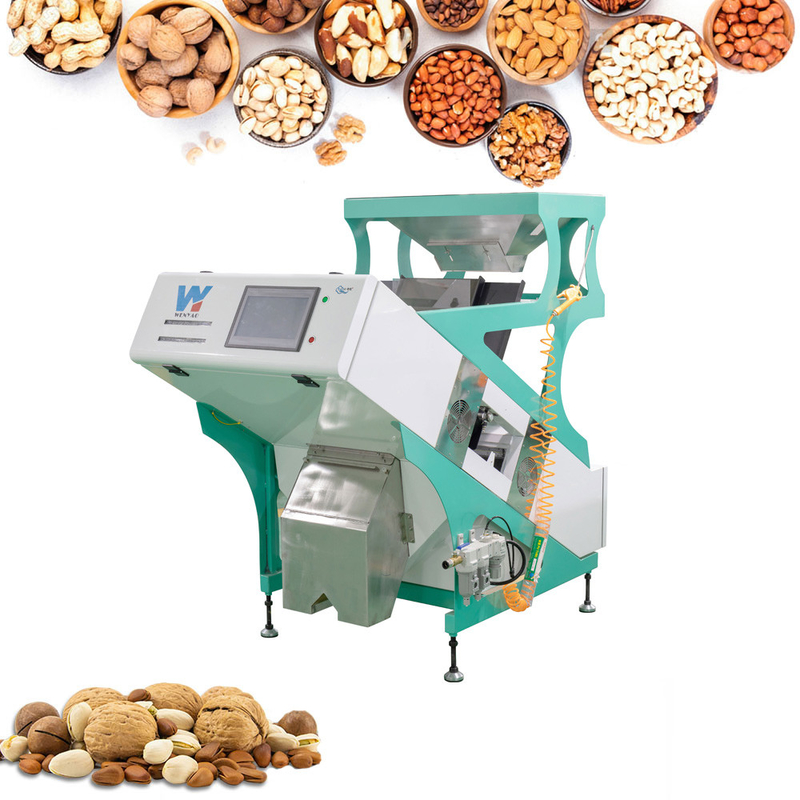

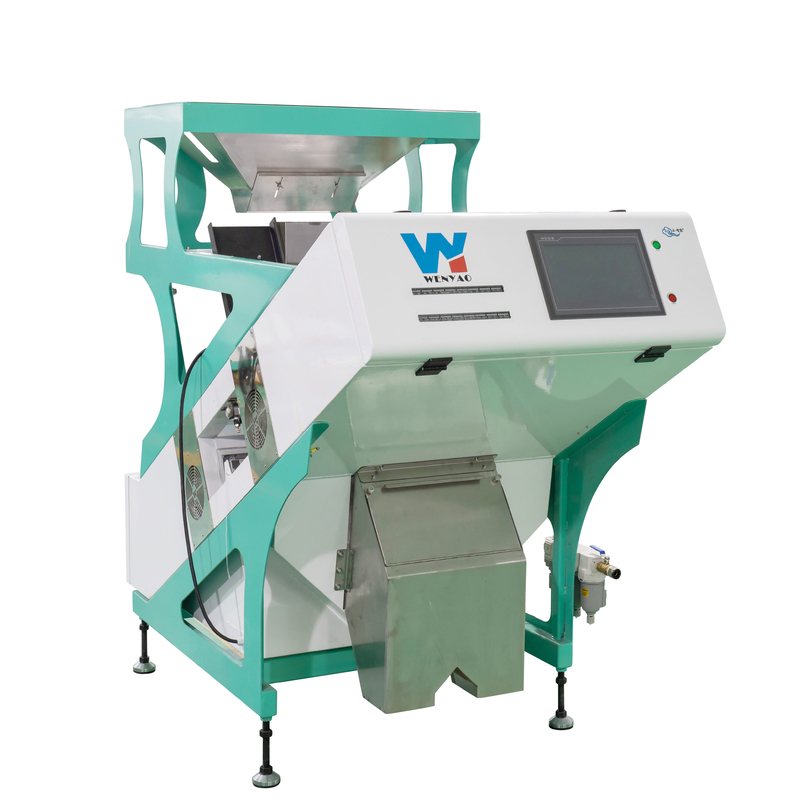

WenYao Popular Optical Mini Sorting Machine For Rice Grain Seeds Nuts Color Sorter
Introduction:
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber
Working principle:
Company Profile:
Machine Features:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
Technic Parameters:
| Model | WYCS1-64 | WYCS2-128 | WYCS3-192 | WYCS4-256 |
| Chute/Channel | 1/64 | 2/128 | 3/192 | 4/256 |
| Throughput(t/h) | 1 Ton /H | 0.6-2.5 Ton /H | 1-4 Ton /H | 1.4-5 Ton /H |
| Sorting Aaccuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Power | 0.75kw | 1.1kw | 1.6kw | 2.3kw |
| Power Voltage | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min | <0.6M3/Min |
| Weight | 280kg | 450kg | 600kg | 750kg |
| Diamension(L*W*H) | 780*1527*1543mm | 1250*1535*1832mm | 1620*1535*1832mm | 1855*1540*1852mm |
Sorting Performance:
Processing Display:
