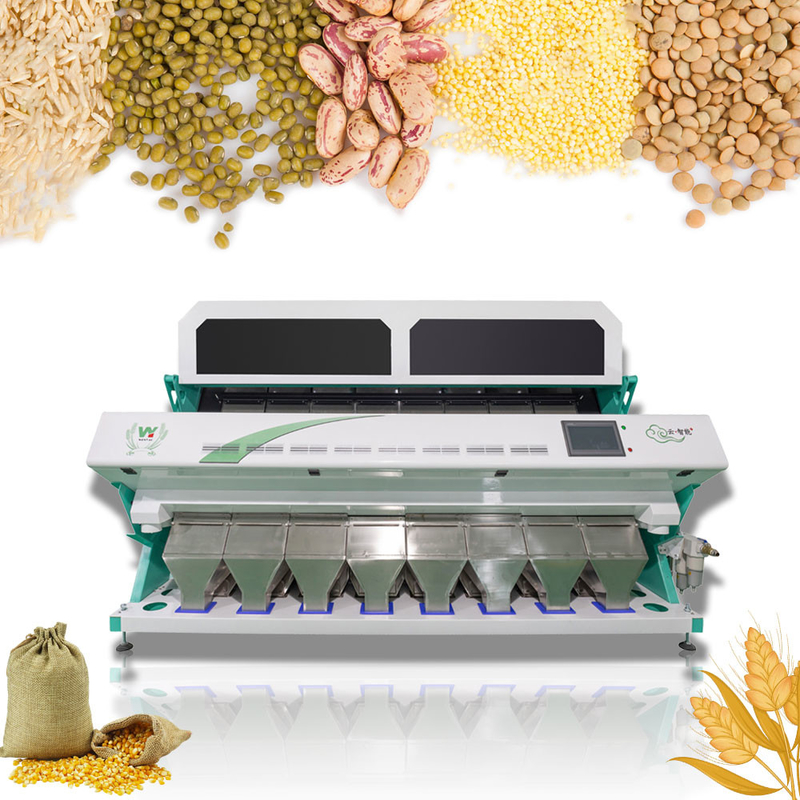

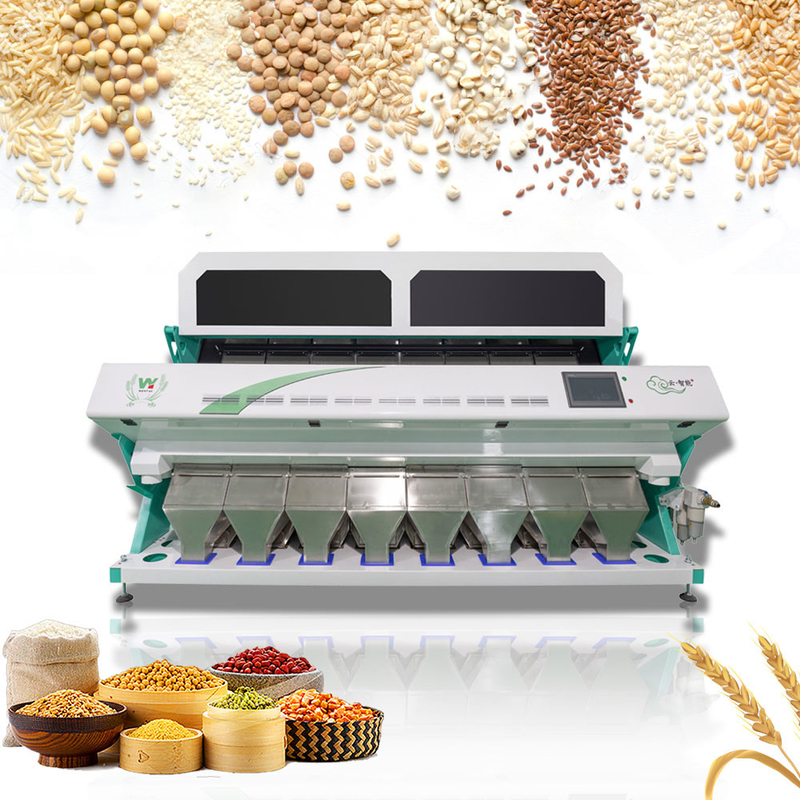

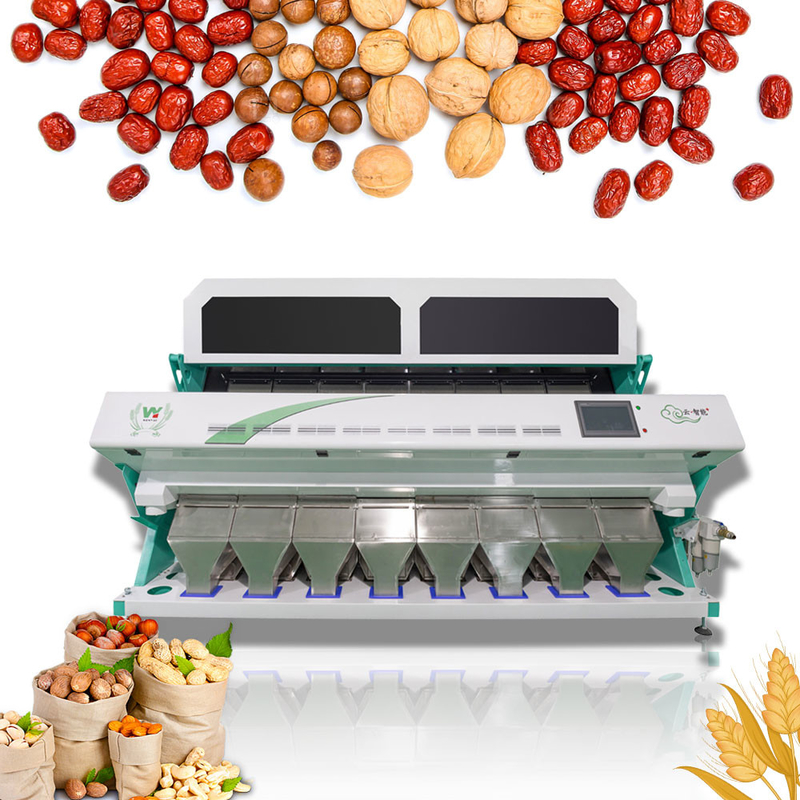

Turkey Lentil Color Sorter Machine Upgraded Model Sorting Machine for Lentil Red Green Yellow Colored Sorting Machine
Beans color sorter working principle:
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber.
Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper
Coffee Beans Color Sorter Technical Parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 4-5t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <4M3/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Throughtput:Different impurity with different throughput.
color sorter features:
1. Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Power source:Taiwan Meanwell
8. All LED light source,more longer lifetime and save power
9. Flexem Humanized touch screen
10. WIFI remote control system,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service
Examples of color sorting:
Customer site:
Delivery:
