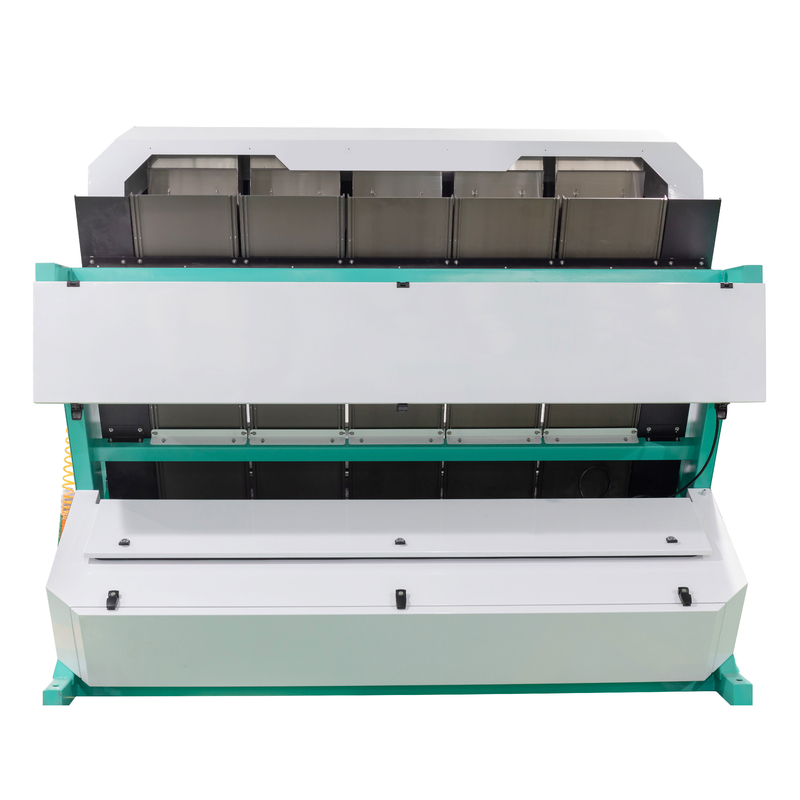

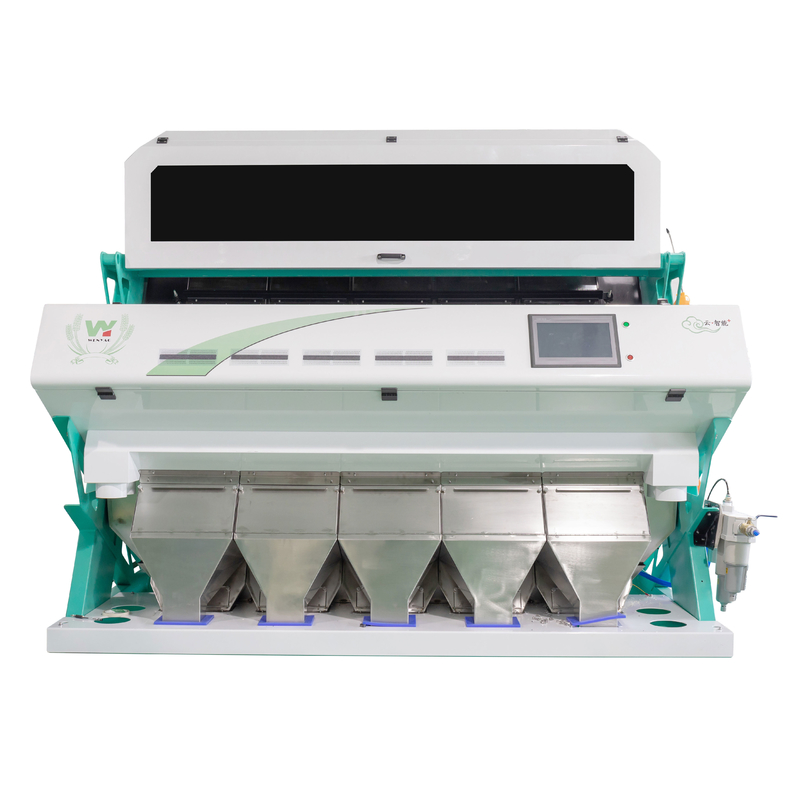

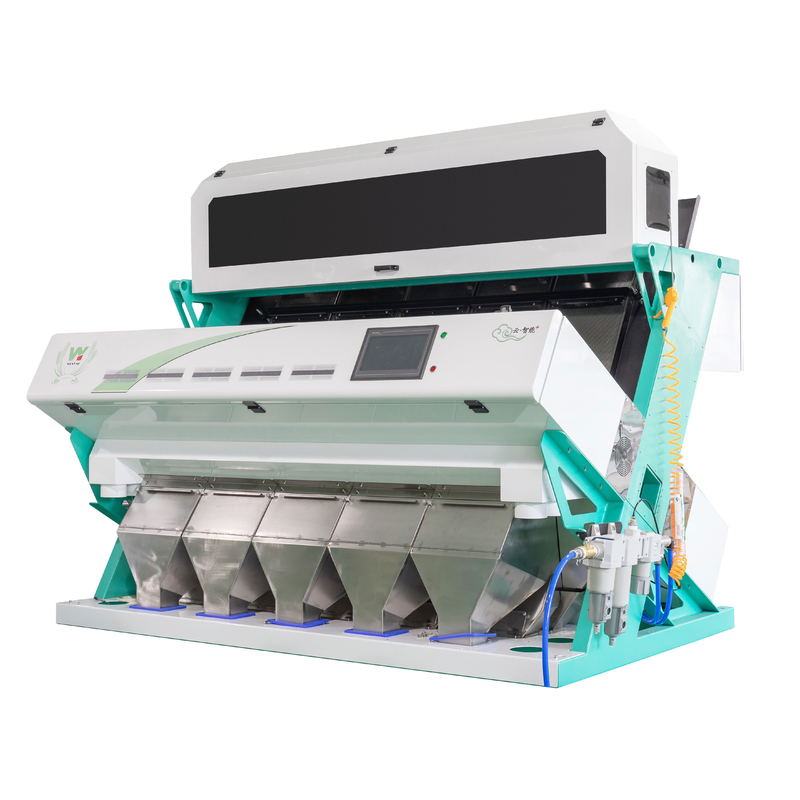

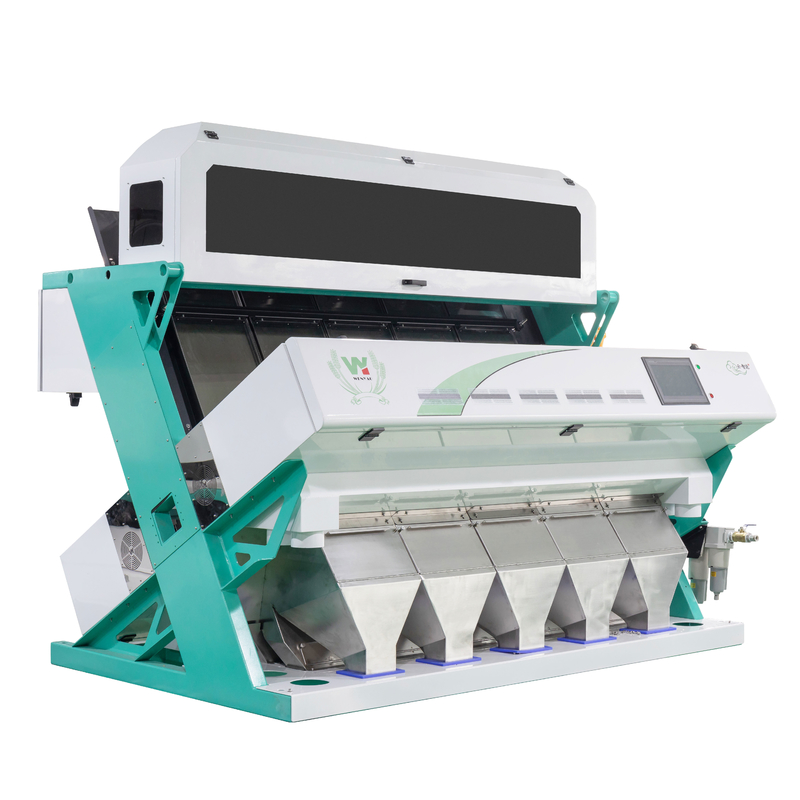

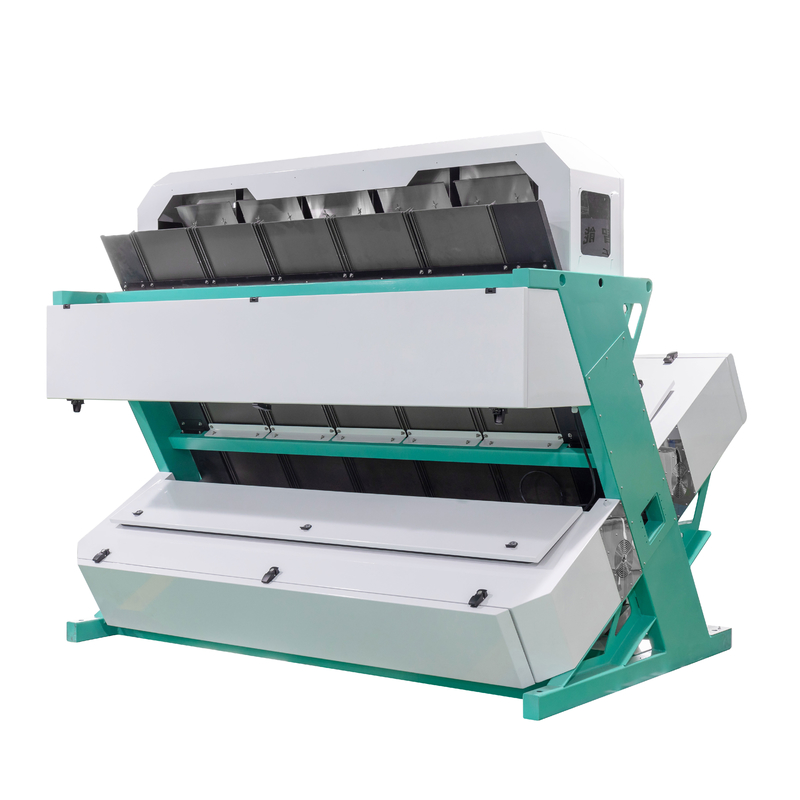

Wenyao 5chutes High Precision Plastic Color Sorting Machine Plastic Color Sorter
Color sorter working principle
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
Wenyao color sorter technical parameters
Wenyao color sorter features
1. More high-end CCD camera, can distinguish flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.
2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.
5. Humanization true color screen, visual effect is more clear, operation is more easier.
6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.
Color sorter sorting effect
Wenyao color sorter core parts
1.CCD Camera
Japanese TOSHIBA 5340 line ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.
2.LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.
3.Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.
4.Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.
5.Ejector Valve
Italian new type of high frequency electromagnetic valve allows for accurate control of air flow power and direction with long lifetime
Our service
--1)We can promise machine all details with high quality.
--2)The rice mill machine can be painted in different color according to customers’ favor.
--3)Any time customers has problem for using the machine can contact us, and also for large plant, we can send install video or technical workers go to guide how to install and how to operate.
--4)Guaranty time for two years.
Parking and delivery
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details:
Within 15 - 20 days after received the 30% deposit.
