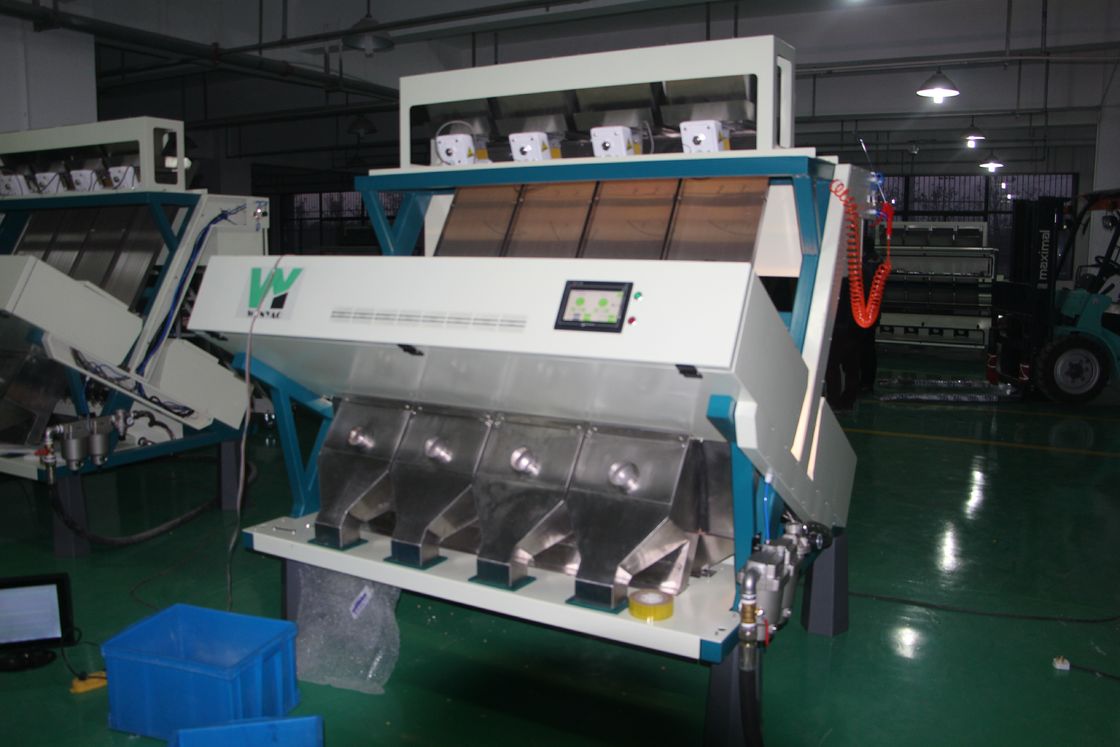

WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes

WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes

Rice Sorter 4 Chutes

WENYAO Color Sorter Machine

Grain Sorter 4 Chutes

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS4-256

Contact Us

Request A Quote
Product Details
Function:
Ccd Rice Color Sorter
Accuracy(%):
≥99.99%
Condition:
2022 New
Warranty:
2 Years
After-sales Service Provided:
Engineers Overseas Service Center Available
Camera:
Toshiba
Rejection Rate:
20:1
Air Pressure:
0.6-0.8 Mpa
Whole Power:
2.3KW
Voltage:
220V/50Hz/60Hz
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood Box package Packing size(L*W*H):2.15*1.72*2.05M
Delivery Time
15 to 20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 PCS Per Month
Product Description

2022 Best price WENYAO color sorter machine for rice grain bean 4 chutes global 10



Raw materials are put into the machine from in-feed hopper on the top, vibrated by vibrating plate and sliding along material belt into the zone of observation in sorting chamber through sensors and background plate. Under the effect of Light source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject hopper and good materials continue to fall into the finished accept hopper



WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes 0



Technical Parameters:

MODEL WYCS4-256
Chutes/Channels 4/256
Throughput(t/h) 2-3t/h
Sorting Aaccuracy ≥99.99%
Power 2.3kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.4M3/Min
Weight 750kg
Diamension(L*W*H) 1855*1540*1852mm






Features:

►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.

►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages



Examples of color sorting:



WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes 1



WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes 2



WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes 3



Maintenance and inspection
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.



5. FAQ

1). How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2). How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3). Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4). what about the after sales service?

We have installed wifi remote control in machine





Packing And Delivery :





WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes 4



WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes 5WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes 6



WENYAO Color Sorter Machine For Rice Grain Bean 4 Chutes 7
