Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
ISO9001 and CE
Model Number:
WYCS3-192
Contact Us

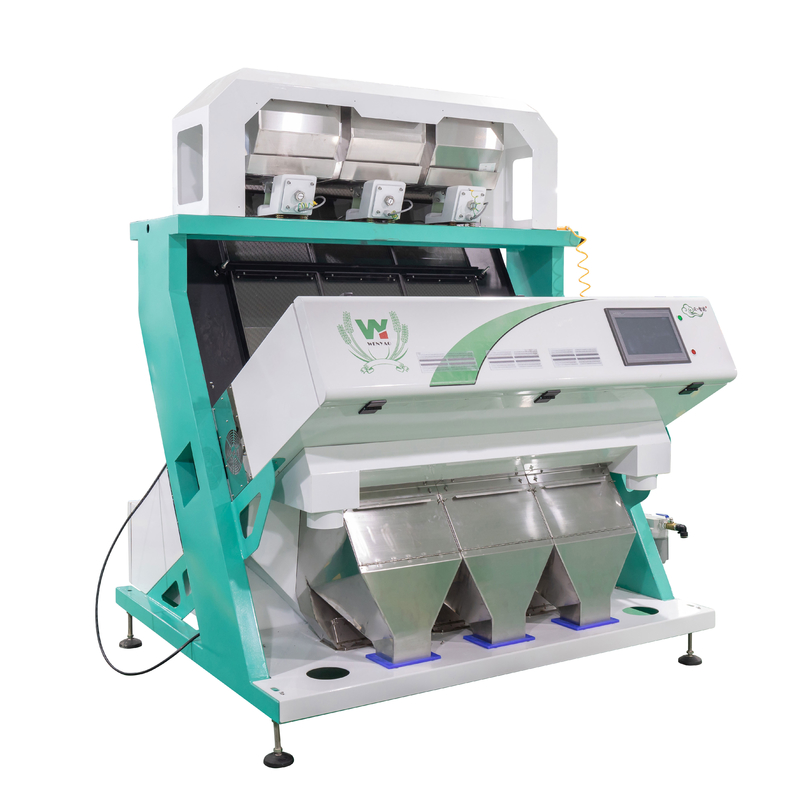

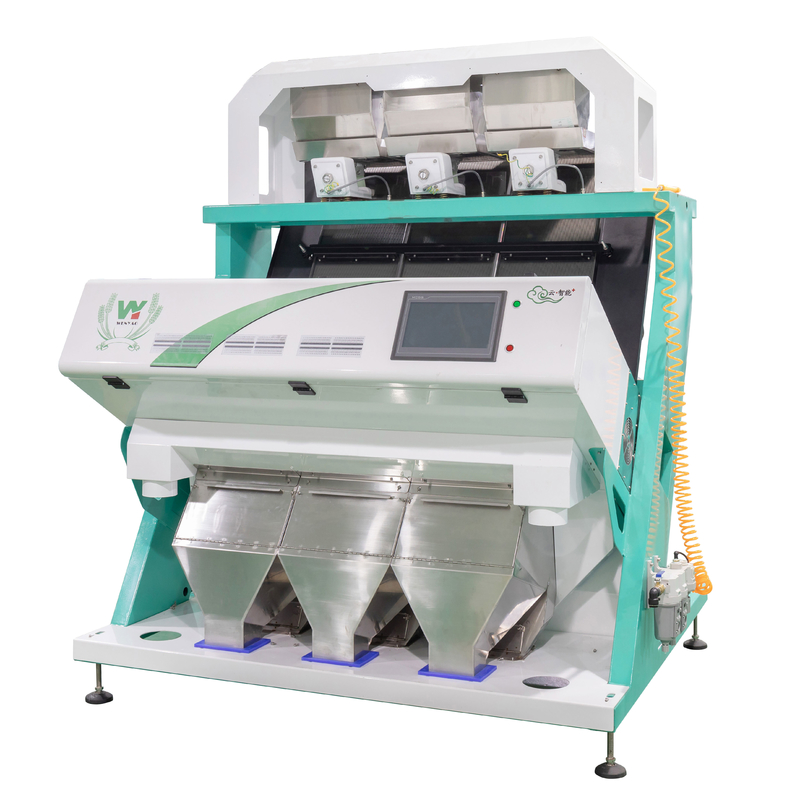

Optical Electric Digital Field Peas Color Sorter Machine For Chick Pea Color Sorting Machine For Bean Processing Line

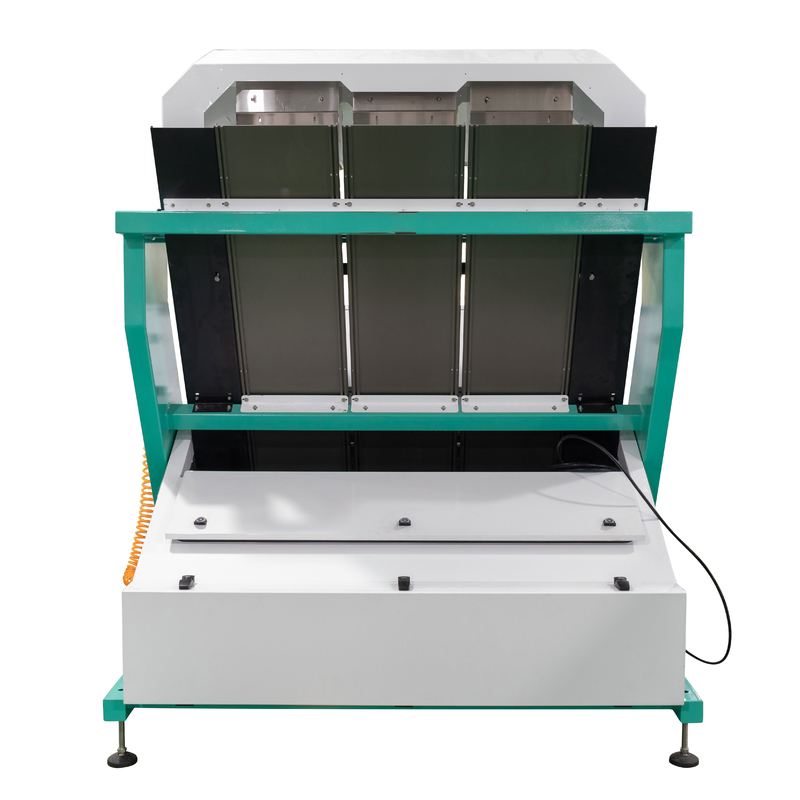

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber
2. Technical Parameters:
| Model | Output(t/h) | Sorting Accuracy(%) | Rejection Rate | Weight(kg) | Whole Power(KW) | Dimensions (L*W*H)mm |
Air Pressure(Mpa) |
| WYCS1-32 | 0.15-0.45 | ≥99.9 | ≥12:1 | 180 | 0.5 | 895*460*1157 | 0.6-0.8 |
| WYCS1-64 | 0.3-0.9 | ≥99.9 | ≥12:1 | 280 | 0.75 | 780*1527*1543 | 0.6-0.8 |
| WYCS2-128 | 0.6-2.5 | ≥99.9 | ≥12:1 | 450 | 1.1 | 1250*1535*1832 | 0.6-0.8 |
| WYCS3-192 | 1.0-4.0 | ≥99.9 | ≥12:1 | 600 | 1.6 | 1620*1535*1832 | 0.6-0.8 |
| WYCS4-256 | 1.4-5.0 | ≥99.9 | ≥12:1 | 750 | 2.3 | 1855*1540*1852 | 0.6-0.8 |
| WYCS5-320 | 2.0-6.0 | ≥99.9 | ≥12:1 | 900 | 2.9 | 2244*1540*1852 | 0.6-0.8 |
| WYCS6-384 | 2.5-8.0 | ≥99.9 | ≥12:1 | 1100 | 3.1 | 2595*1540*1852 | 0.6-0.8 |
| WYCS7-448 | 3.0-10.0 | ≥99.9 | ≥12:1 | 1350 | 3.9 | 2905*1540*1852 | 0.6-0.8 |
| WYCS8-512 | 3.5-12.0 | ≥99.9 | ≥12:1 | 1500 | 5 | 3025*1540*1852 | 0.6-0.8 |
| WYCS10-640 | 4.5-16.0 | ≥99.9 | ≥12:1 | 1800 | 6.5 | 3750*1540*1852 | 0.6-0.8 |
| WYCS12-768 | 5.5-20.0 | ≥99.9 | ≥12:1 | 2100 | 7 | 4430*1540*1852 | 0.6-0.8 |
3. Machine Features:
Wenyao color sorter Features:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

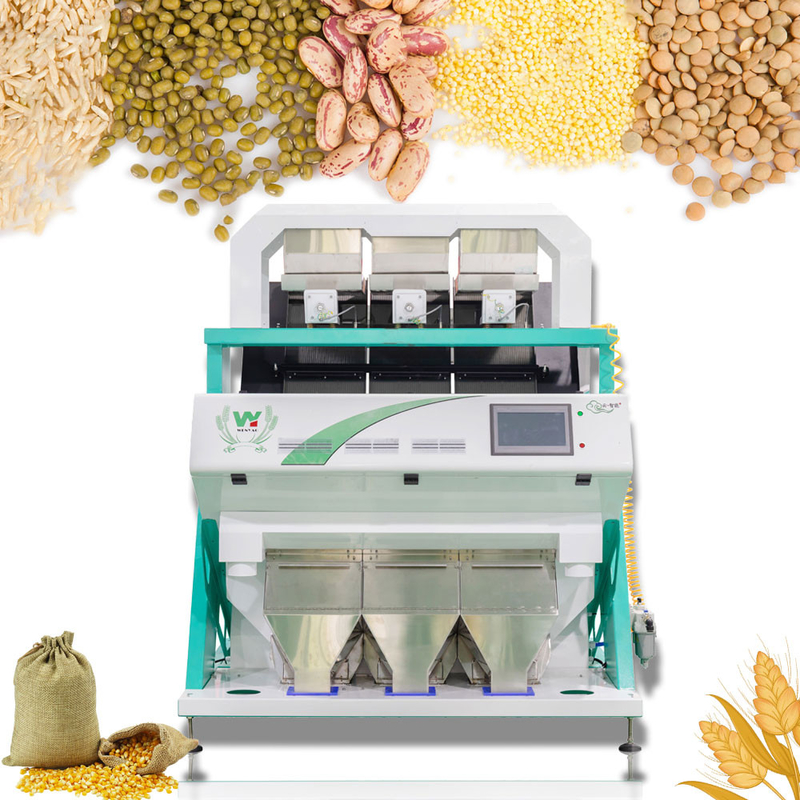

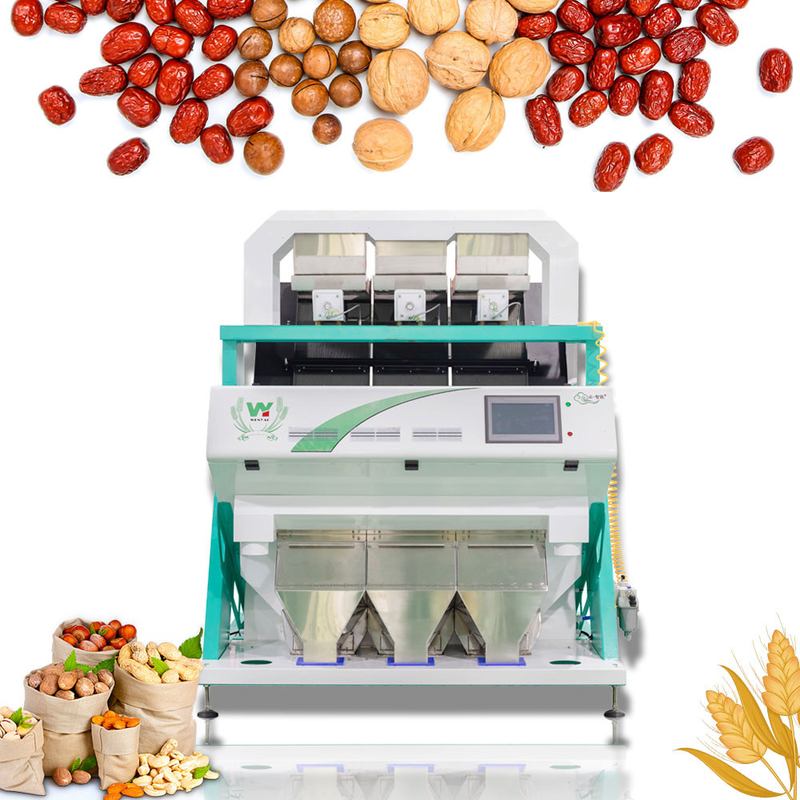

4. Examples of Color Sorting Examples
Wenyao multifunction color sorter application
Device Features
camera ◉ : Japanese lens, Toshiba sensors with power of 16 megapixels (5400 CCD) micro-color detection capability
◉ Germany's OSRAM lED
◉ American ALTRA Processor of Japanese SMC Pneumatic Systems
◉ 15-inch NEC monitors
◉ of Vision's production ejectors with lifetime guarantee
◉ equipped with dust absorption system
◉ equipped with artificial intelligence, adjusting the device with the help of AI
◉ scanning capability up to 30,000 times per second, leading to up to three times more performance than other sorters.
Persian Software
◉ software upgrade capability
◉ reducing energy consumption
5. Our Service:
A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.
B: For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.
6. Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit.
