Place of Origin:
China,Hefei
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS8-512
Contact Us
Video
Video
Video

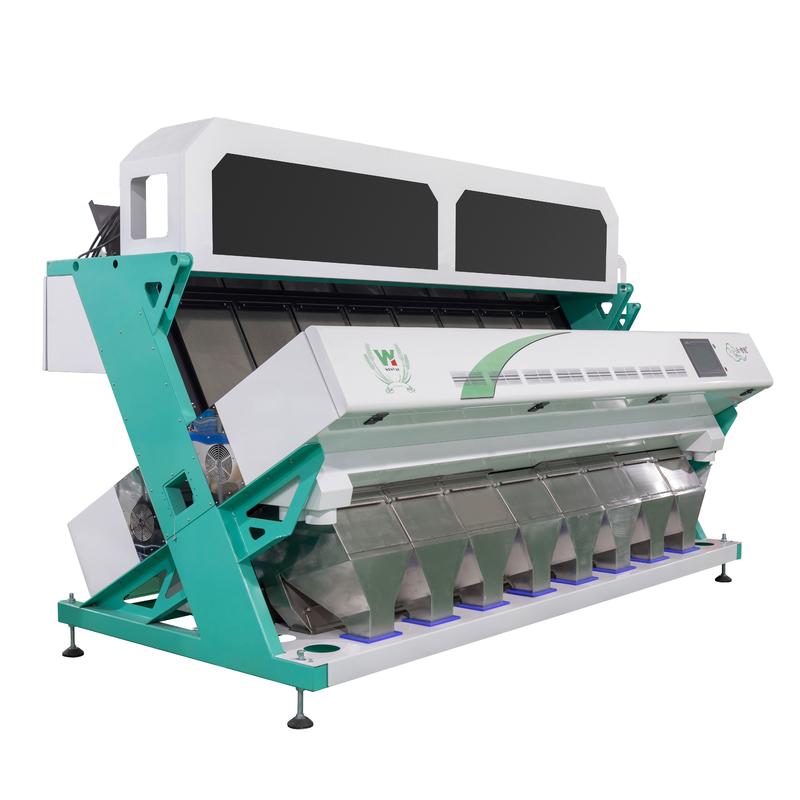

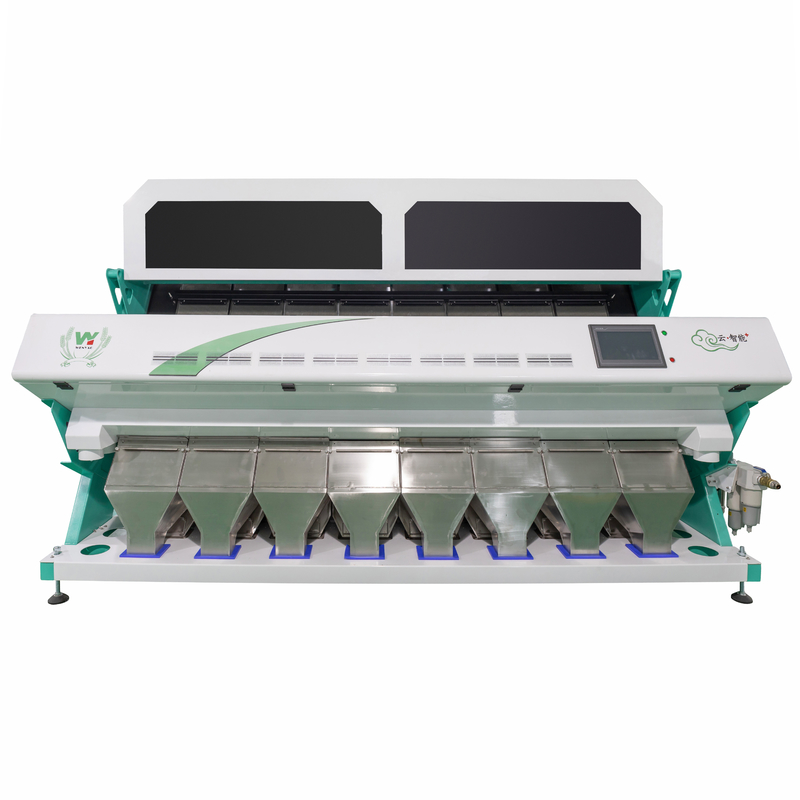

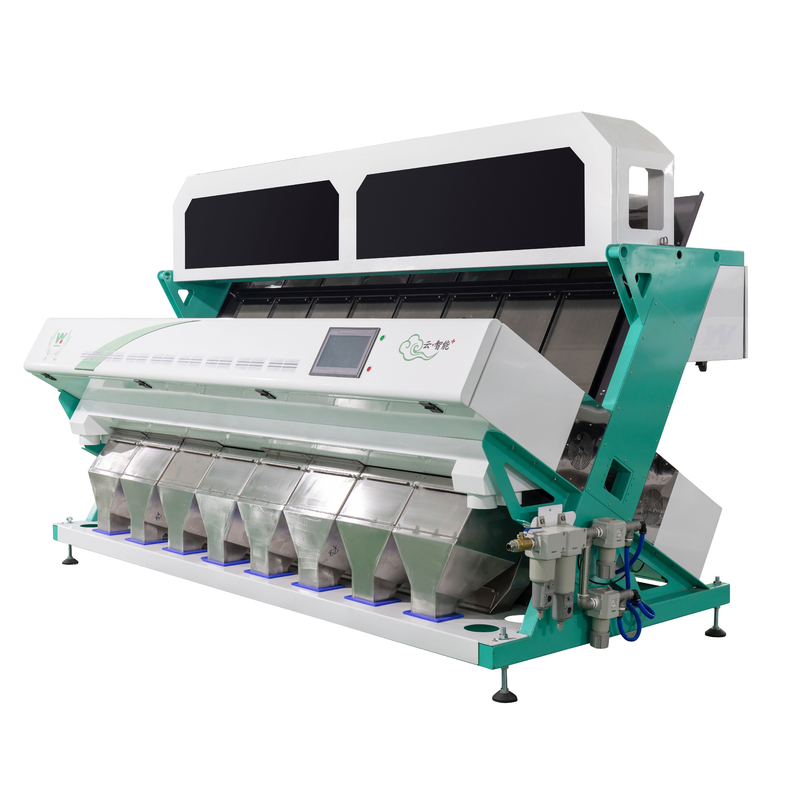

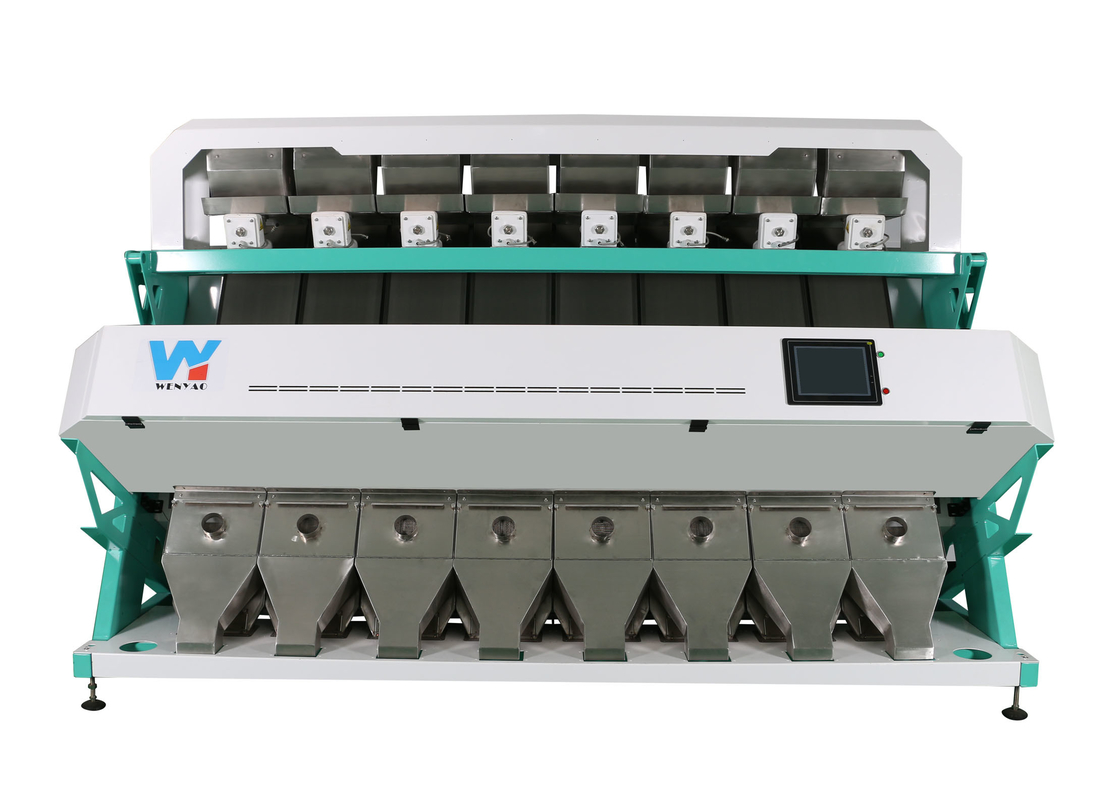

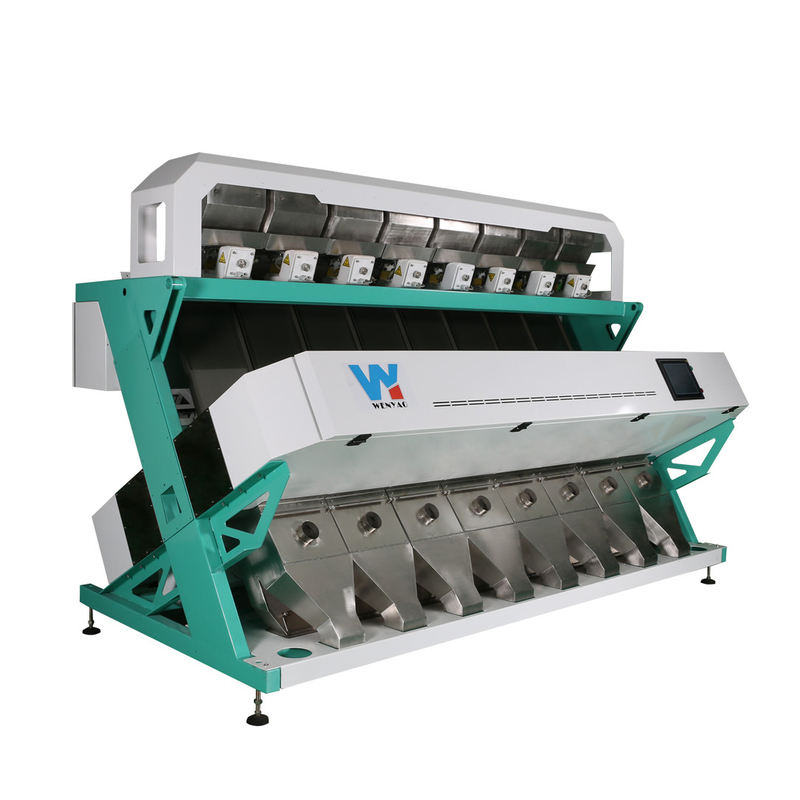

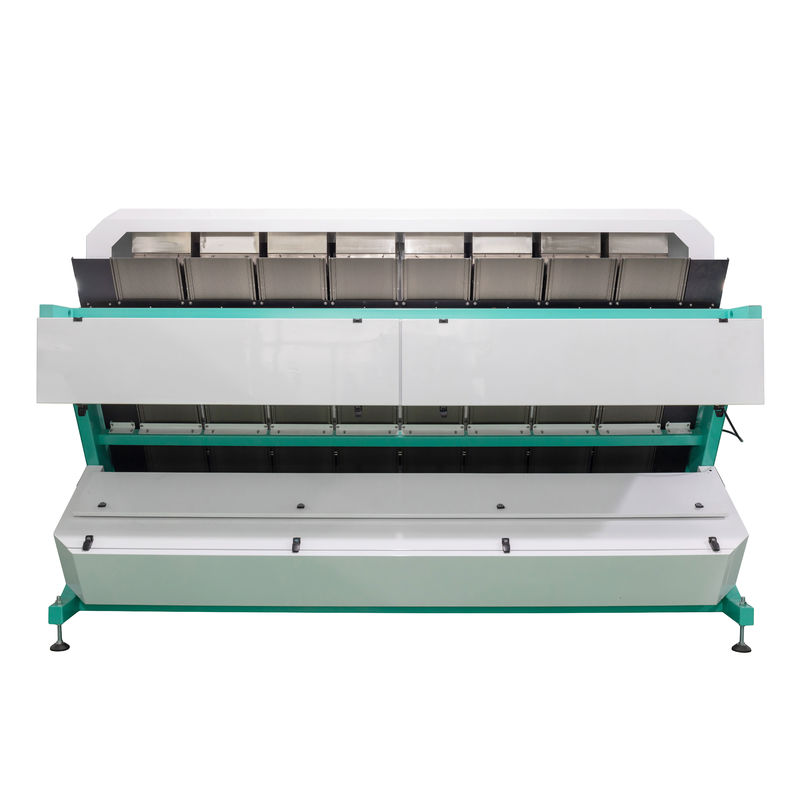

High capacity color sorter machine nuts color sorting machine peanut color separator
Wenyao Color Sorter Machine working principle:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Wenyao color sorter features:
※ Intelligent CCD image acquisition system
color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition. The camera could capture the micro defects of material instantly
※ Unique image processing Each group can be synchronized for the simultaneous separation of different models. This allows for a variety of color sorting at same time. This method both improves productivity and significantly increase the color accuracy.
※ Advanced tailor-made slide and track construction
The anti-oxygen chute device adopted special processing technology, make material flow more smooth, uniformly. It's also very strong and durable.Unique※ lighting structure system
Advanced LED light with thermal dissipation, wide color gamut, excellent uniformity, long
※ service life and low power consumption.
High quality solenoid valve(ejector)The valve has longer lifespan, high frequency and low air consumption. For the different sizes and characteristics of material particle, sorters use the solenoid valve of different sizes.
※ Full range of automatic detection function The color sorter has built in self-diagnostic capability verifying key components e.g.spray valve, pressure plate, camera, control panel, and background during normal operation .Identified faults can be easily rest by the user.
※ Perfect after-sales service and warranty service
We have a professional after-sales team and engineers. And we supply lifelong software upgrade services for our customers.
Technical Parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 3.5-12t/h |
| Sorting Aaccuracy | ≥99.95% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 2000-4000M3/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Examples of color sorting:
Note:The machine is multi-functional ,it can support more than 2500 materials ,welcome to inquire us for more details.
What you can choose from us?
---Advanced equipment, high quality
---Professional skills, all-related services
---High quality and efficiency technology
---Produce more than 200pieces per month, quick delivery
---Exporting to more than 100 countries and regions
---2 years warranty, lifelong maintenance
FAQ:
Question 1: What are your advantages compared with your competitors?
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Question 2: Are you manufacturer?
Answer: Yes, we are manufacturer with more than 10 years' experience.
Question 3: What are your Price Terms?
Answer: Price can be based on FOB, CFR, or CIF, etc.
Question 4: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 5: What's your Minimum Order Quantity?
Answer: Any order quantity is warmly welcomed.
Question 6: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
