Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS1-64
Contact Us

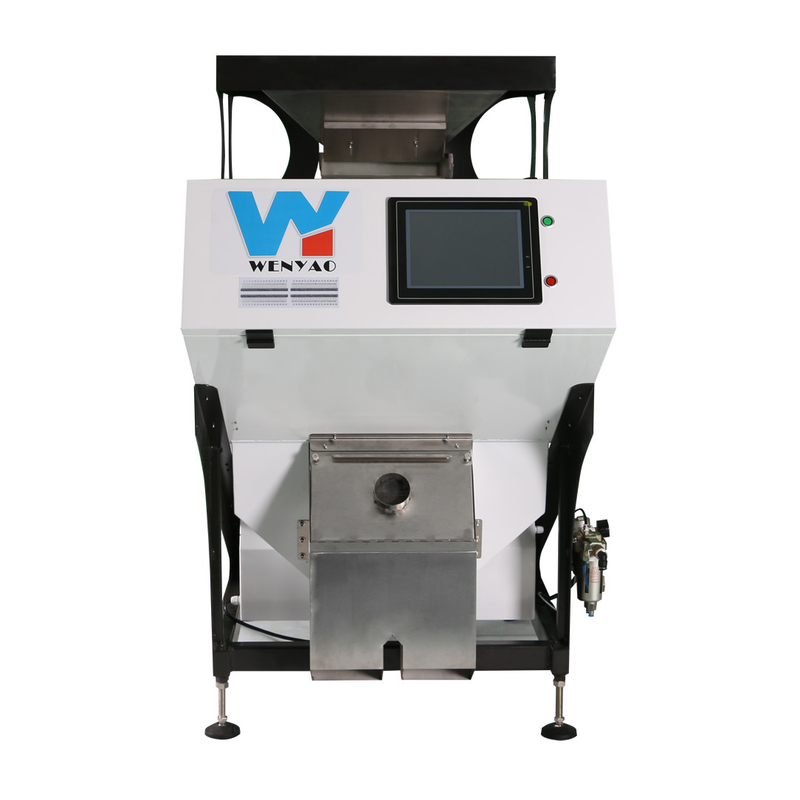

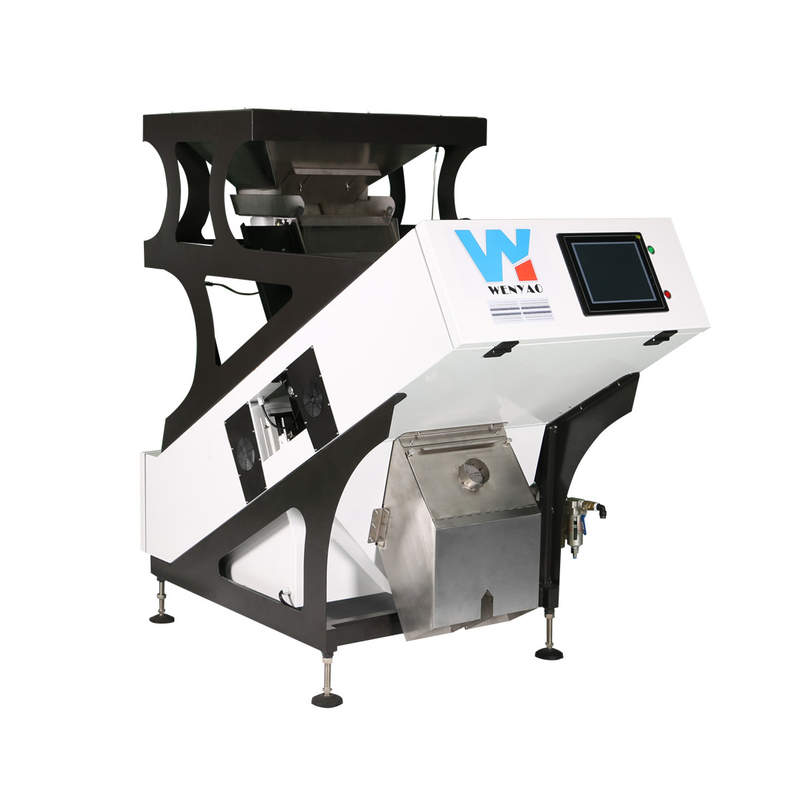

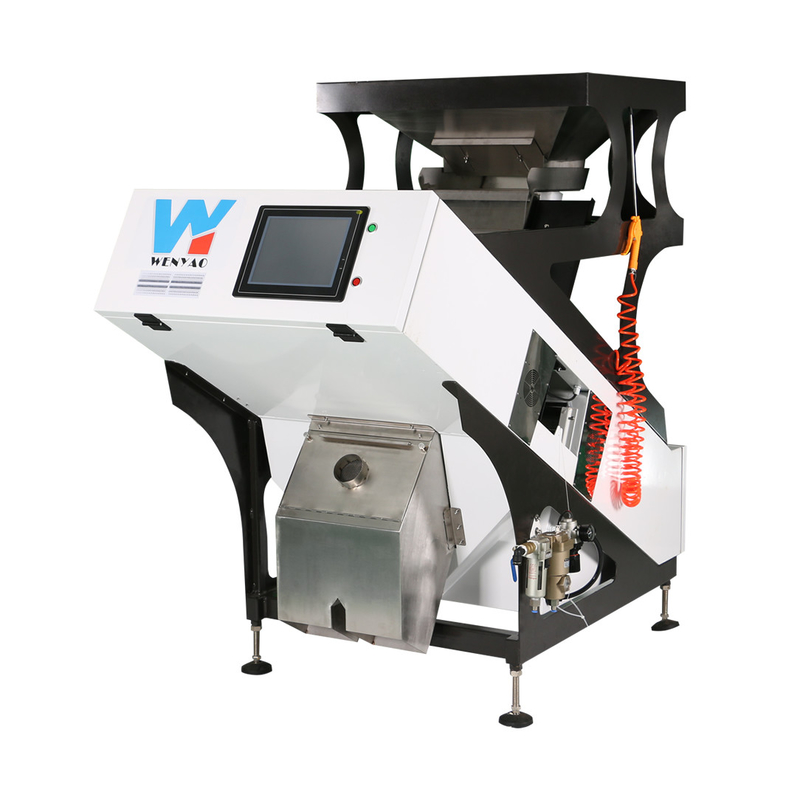

Factory Price Peanut Grain Bean Rice Mini 500kg/H CCD Color Sorter Machine Price

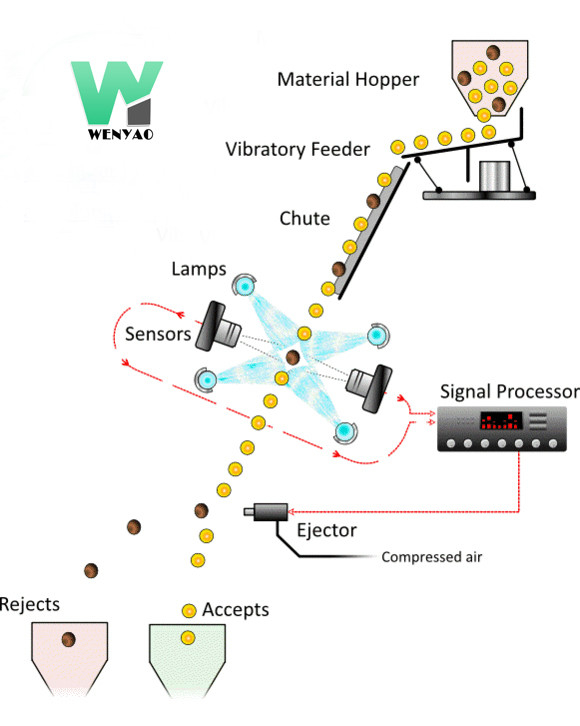

Wenyao Color Sorting Machine Working Principle
When color sorter is running , the materials in the hopper is uniformly distributed into each chute because of the action of vibrator.while the materials dropping ,CCD sensor is starting.If the cameras catach the unqualified materials or impurities,PLC will order the ejector to blow the bad goods into the hopper.
Corn Separating Machine 1 Chute 64 Channels Corn Grading Machines Grain Color Sorter
The nutritional composition of corn is more comprehensive, generally containing protein 8.5%, fat 4.3%, carbohydrate 73.2%, calcium 0.022%, phosphorus.21%, iron 0.0016%, but also contains carotene, vitamin B1, B2 and niacin as well as sterol, lecithin, vitamin E, lysine and so on. According to a recent study, corn contains a cancer - fighting factor - glutathione. Nutritionists at home and abroad give corn a high evaluation, think: corn containing glutathione has anti-cancer effect, it can be combined with a variety of carcinogens in the human body, can make these substances lose carcinogenesis; The cellulose contained in corn is a carbohydrate that can not be absorbed by the human body, which can reduce the concentration of carcinogens in the human intestine, and reduce the accumulation of toxins secreting rot in the intestine, thus reducing the incidence of colon cancer and rectal cancer; Corn contains lignin, can make the human body of the "macrophage" activity increased 2~3 times, thereby inhibiting the occurrence of cancer; Corn also contains high amounts of the mineral magnesium, which is found in food and has a significant cancer-fighting effect.
CATALOGUE
We have another item model machines. The functions are all the same.The difference are the capacities.Now we will attach the various model pictures as the followings.
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
Features:
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Automatic computing and intelligent identification with high speed camera.
Examples Of Color Sorting Materials
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
